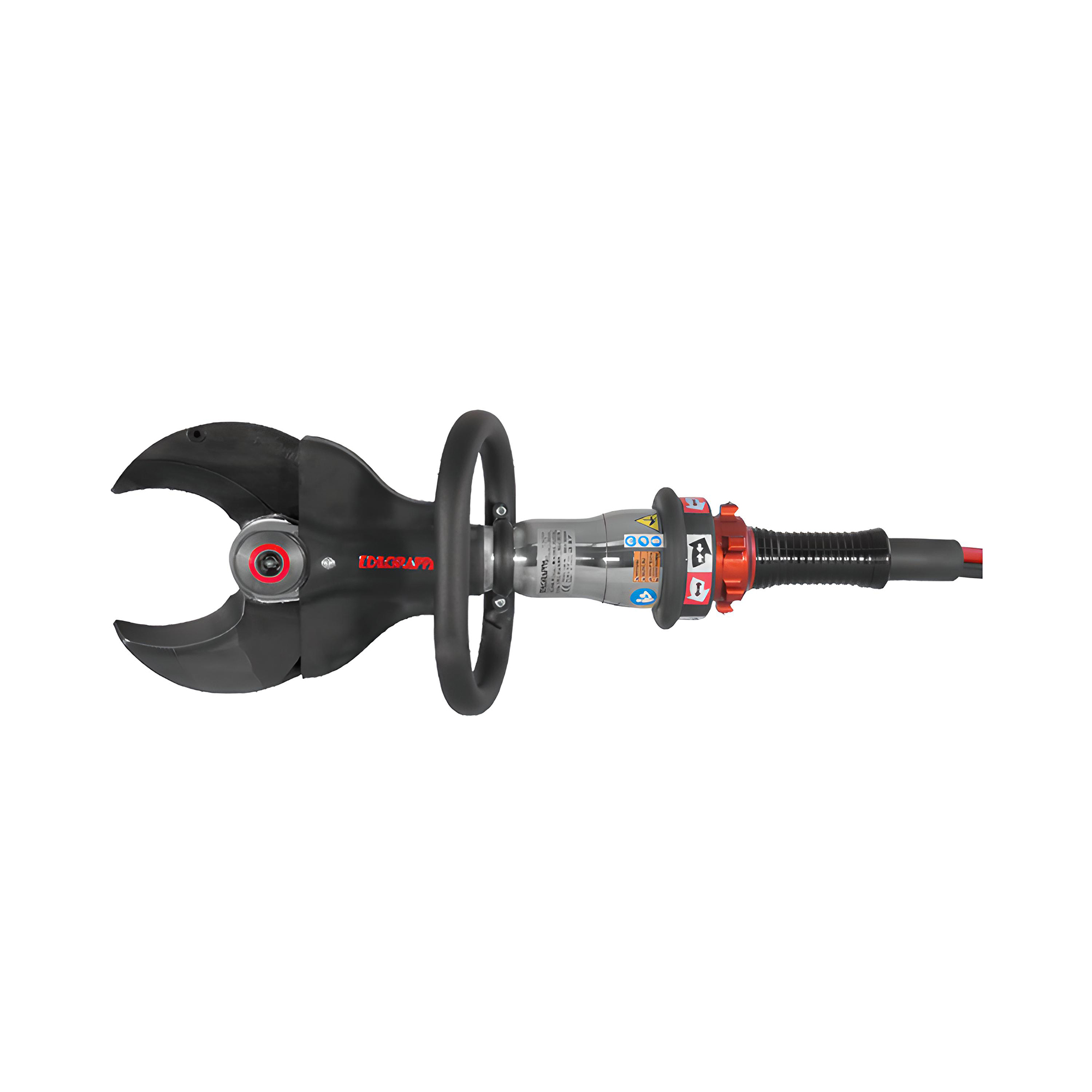

F130N hydraulic

Edilgrappa’s F130N is a hydraulic manual cutter manufactured in Italy for cutting cables, catalytic converters, car chassis, sheet metal, steel and aluminium profiles.

F130N is the ideal product for automotive recycling and disposal of piping etc.

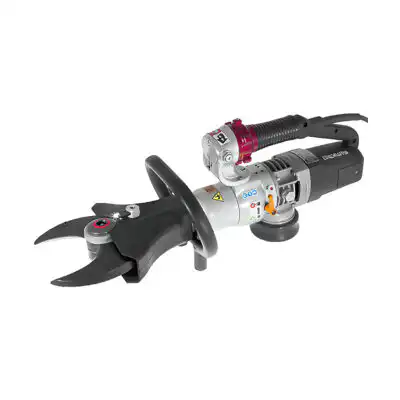

The F130N is a manual hydraulic cutter that requires a separate hydraulic power unit. Also available with electric controls (requires a suitable pump) instead of the hand control.

More Information

Blade opening 130 mm
Cutting capacity 24 mm diameter
Cutting force 240 kN
Piston force 128 kN (13.1 t)
Working pressure 70 MPa (700 bar)
Cylinder Double acting
Weight 12.2 kg
Dimensions (closed) LxWxH 602 x 234 x 172 mm
Dimensions (open) LxWxH 590 x 234 x 172 mm
