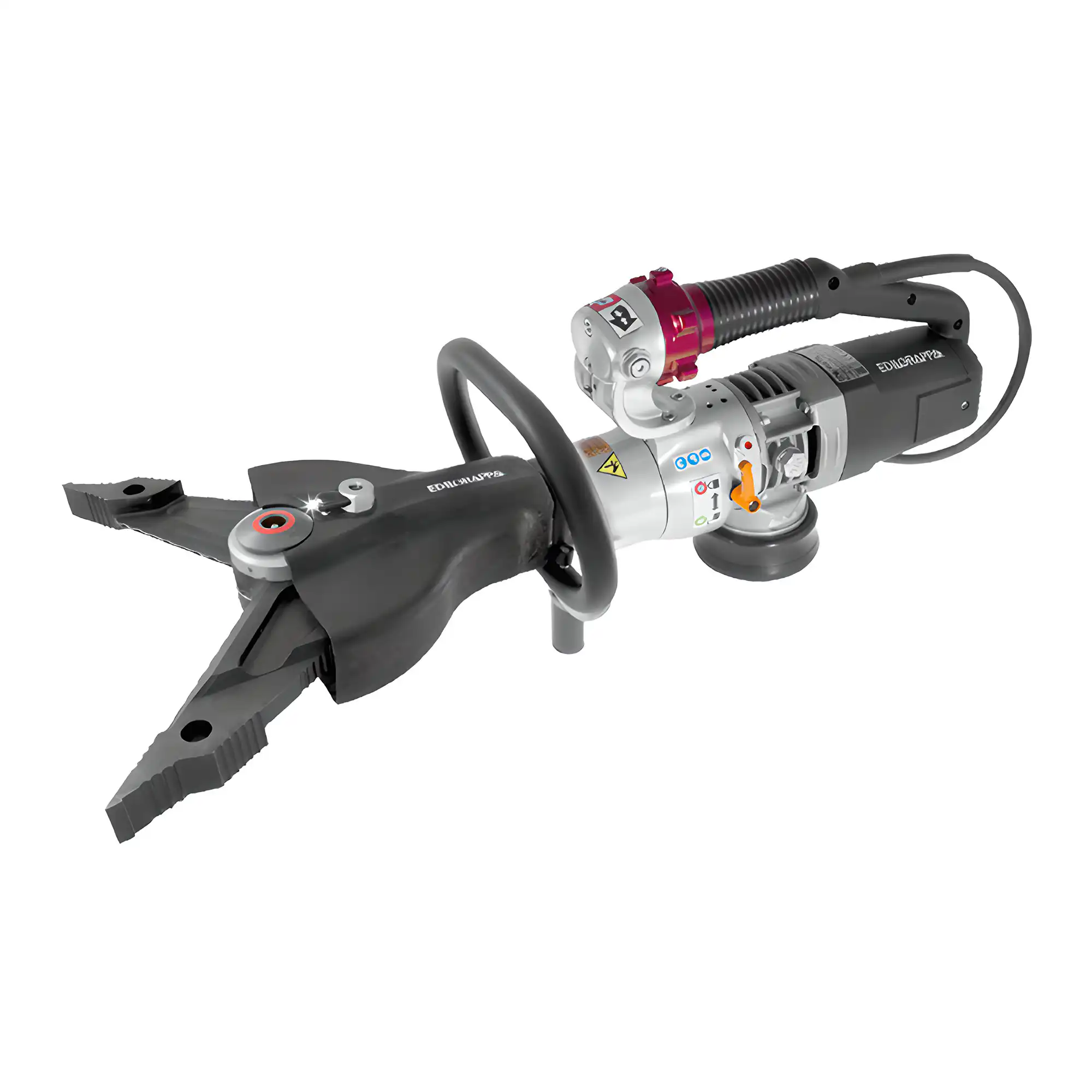

MDC360 T40 240v

The Edilgrappa MDC360 T40 230V cutter and spreader is an electro-hydraulic combi-tool produced in Italy to cut and spread cables, vehicle frames and metal sheets.

The right solution for controlled demolition, vehicle decommissioning and specific industrial works sectors.

More Information

Blade opening 360 mm
Cutting capacity 30 mm diamteer
Cutting force 394 kN (40.2 t)
Min spreading force 57 kN (5.8 t)
Max spreading force 166 kN (16.9 t)
Pulling force 50 kN (5.1 t)
Squeezing force 72 kN (7.3 t)
Working pressure 70 MPa (700 bar)
Power supply 230V 1100 W – 50Hz – 5.3 A
Head rotation 180°
Cylinder Double acting
Weight 20 kg
Dimensions (closed) LxWxH 846 x 273 x 261 mm
Dimensions (open) LxWxH 756 x 362 x 261 mm
