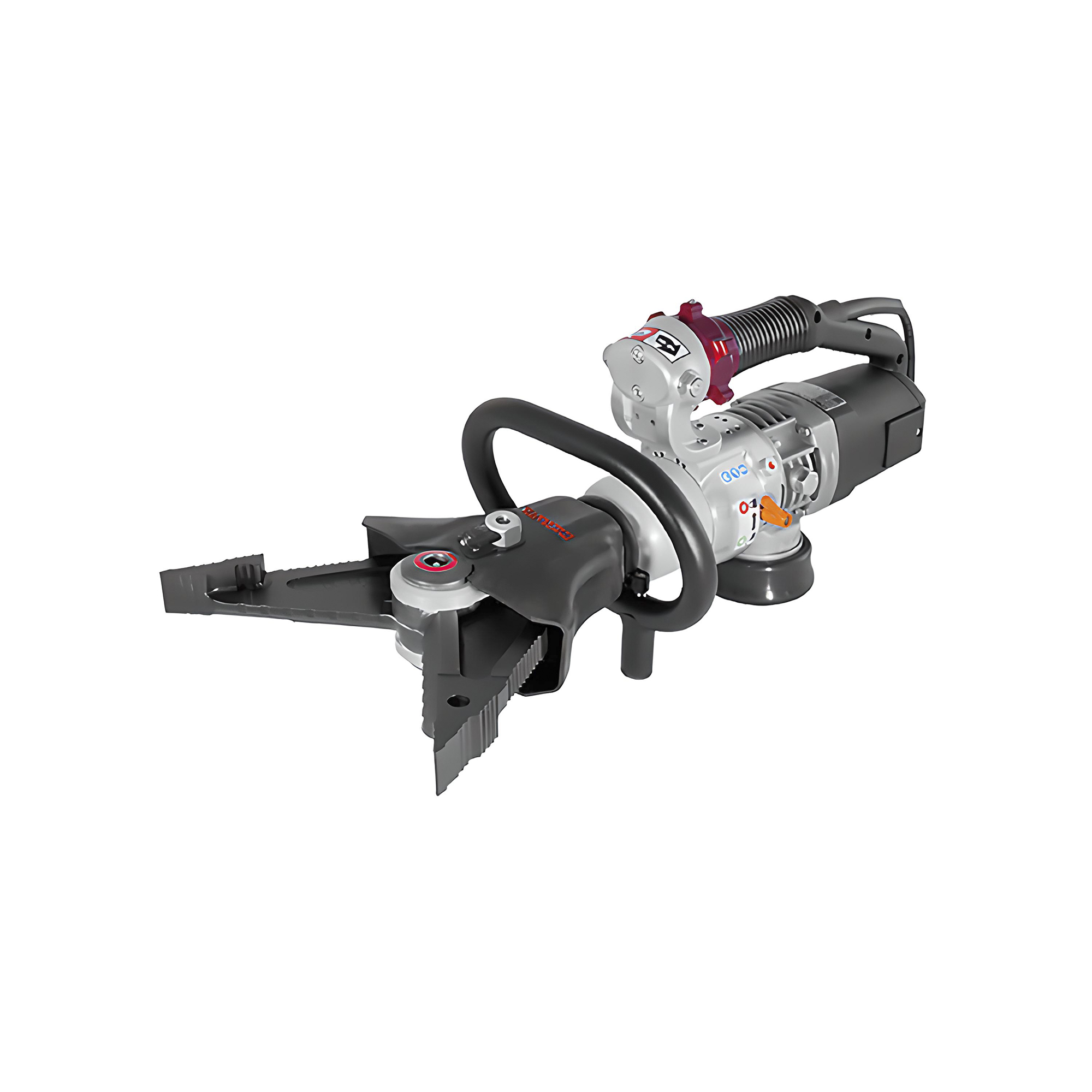

MDC300 T30 240v

The MDC300 T30 handheld cutter and spreader is an electro-hydraulic tool produced by Edilgrappa, that is ideal for cutting and spreading cables, vehicle frames and metal sheets.

The right solution for controlled demolition, vehicle decommissioning and specific industrial works sectors.

More Information

Blade opening 300 mm
Cutting capacity 24 mm diameter
Cutting force 375 kN (38.2 t)
Min spreading force 46 kN (4.7 t)
Max spreading force 134 kN (13.7 t)
Pulling force 45 kN (4.6 t)
Squeezing force 64 kN (6.5 t)
Working pressure 55 Mpa (550 bar)
Power supply 230V 1100 W – 50Hz – 5.3 A
Head rotation 180°
Cylinder Double acting
Weight 15.4 kg
Dimensions (closed) LxWxH 733 x 302 x 254 mm
Dimensions (open) LxWxH 660 x 245 x 254 mm
