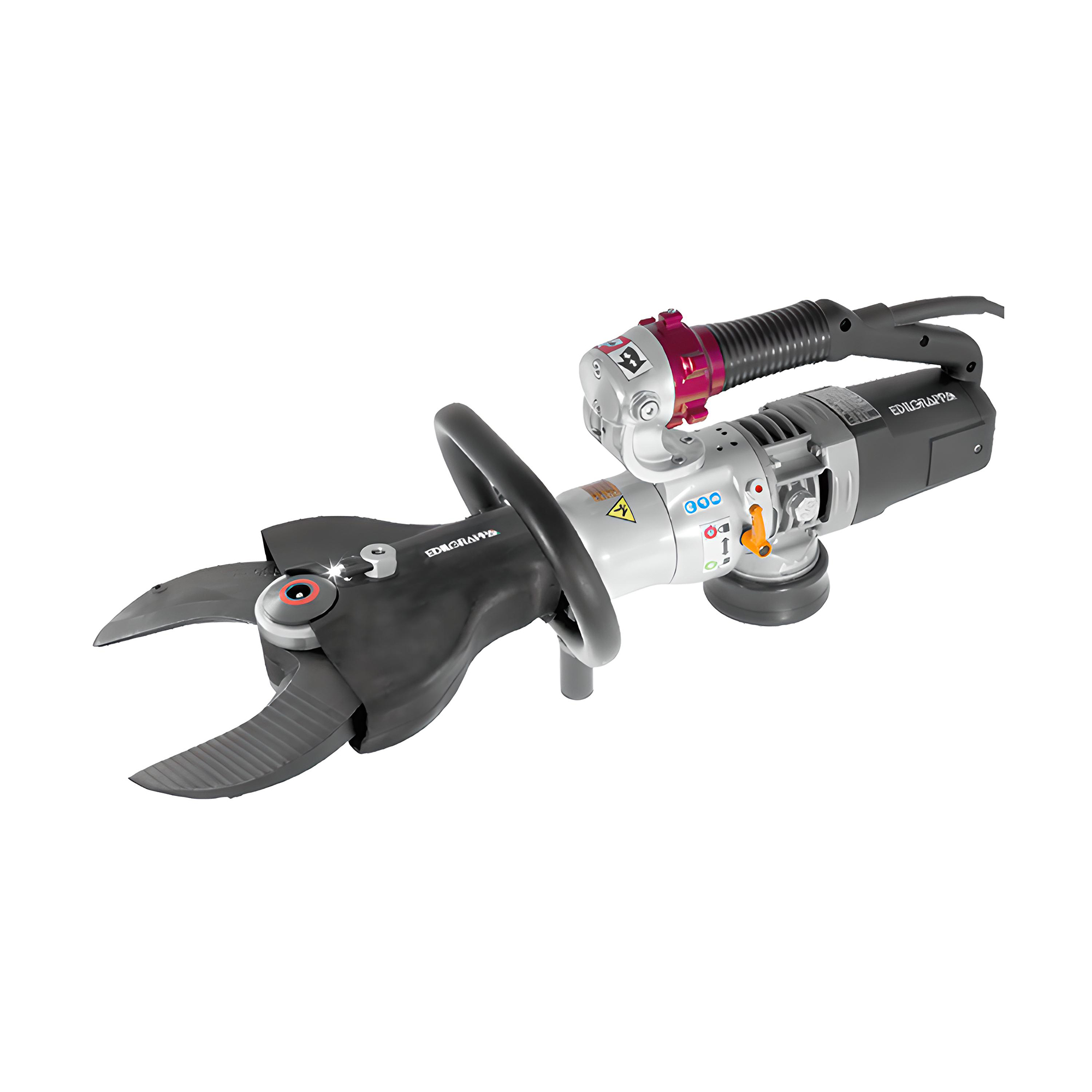

F150N T40 240v

Edilgrappa has developed the F150N T40 hydraulic cutter for applications as cutting cables, catalysts, vehicle frames and metal sheets.

In controlled demolition, vehicle decommissioning and specific industrial works, Edilgrappa F150N T40 is frequently used.

More Information

Blade opening 150 mm
Cutting capacity 30 mm diameter
Cutting force 409 kN (41.7 t)
Working pressure 70 MPa (700 bar)
Power supply 230V 1100 W – 50Hz – 5.3 A
Head rotation 180°
Cylinder Double acting
Weight 20.6 kg
Dimensions (closed) LxWxH 778 x 273 x 265 mm
Dimensions (open) LxWxH 764 x 273 x 265 mm
