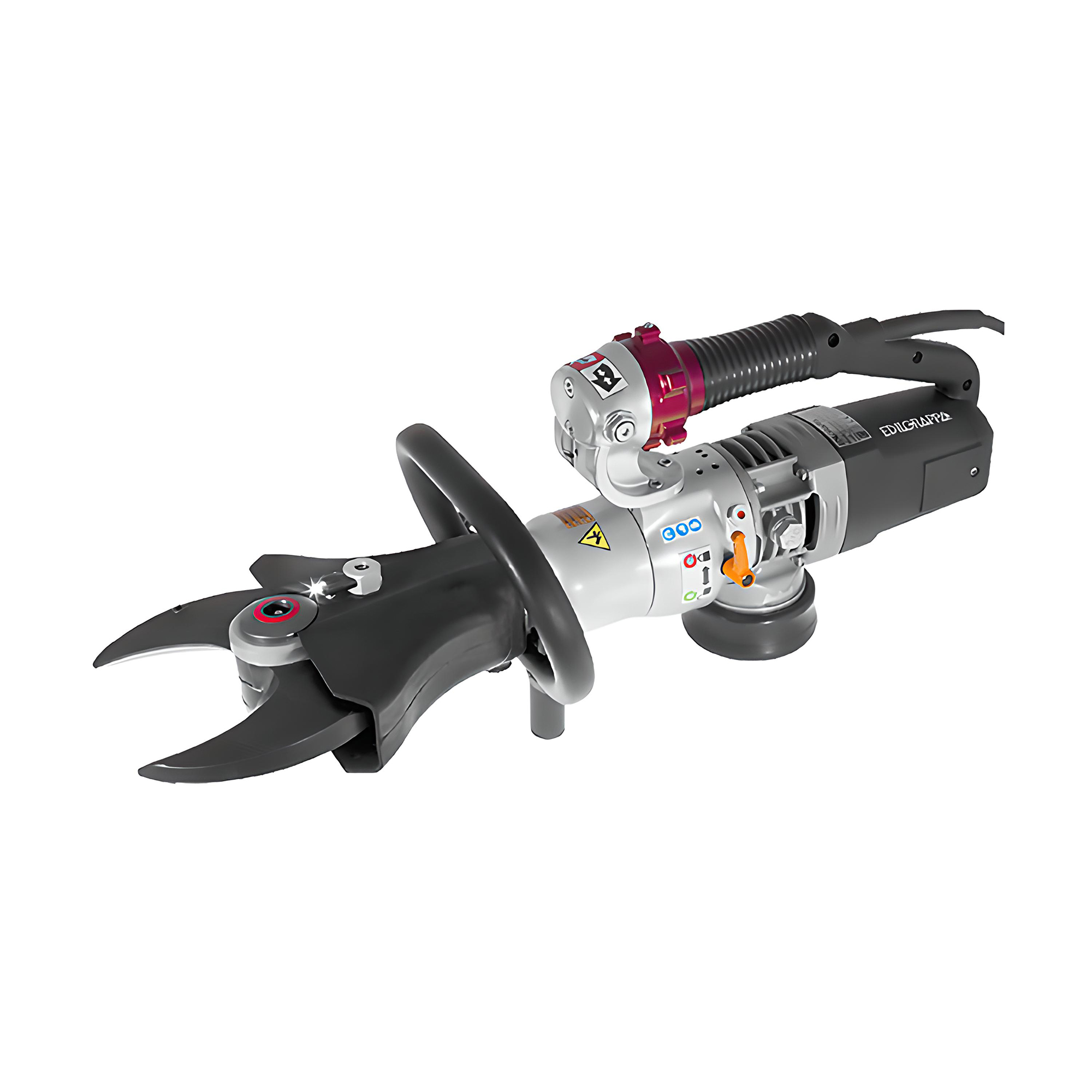

F130N T30 240v

For cutting cables, catalysts, vehicle frames and metal sheets, a solution made available by Edilgrappa is the F130N T30 hydraulic cutter.

Made by Edilgrappa in Italy the F130N T30 hydraulic cutter is for controlled demolition, vehicle decommissioning and specific industrial works.

The hydraulic functioning of the F130N T30 is provided by a 240v electric power supply, perfect for workshop or on site use.

More Information

Blade opening 130 mm
Cutting capacity 22 mm diameter
Cutting force 175 kN (17.6 t)
Working pressure 55 MPa (550 bar)
Power supply 230V 1100W – 50Hz – 5.3 A
Head rotation 180°
Cylinder Double acting
Weight 14.7 kg
Dimensions (closed) LxWxH 662 x 245 x 252 mm
Dimensions (open) LxWxH 648 x 245 x 252 mm
