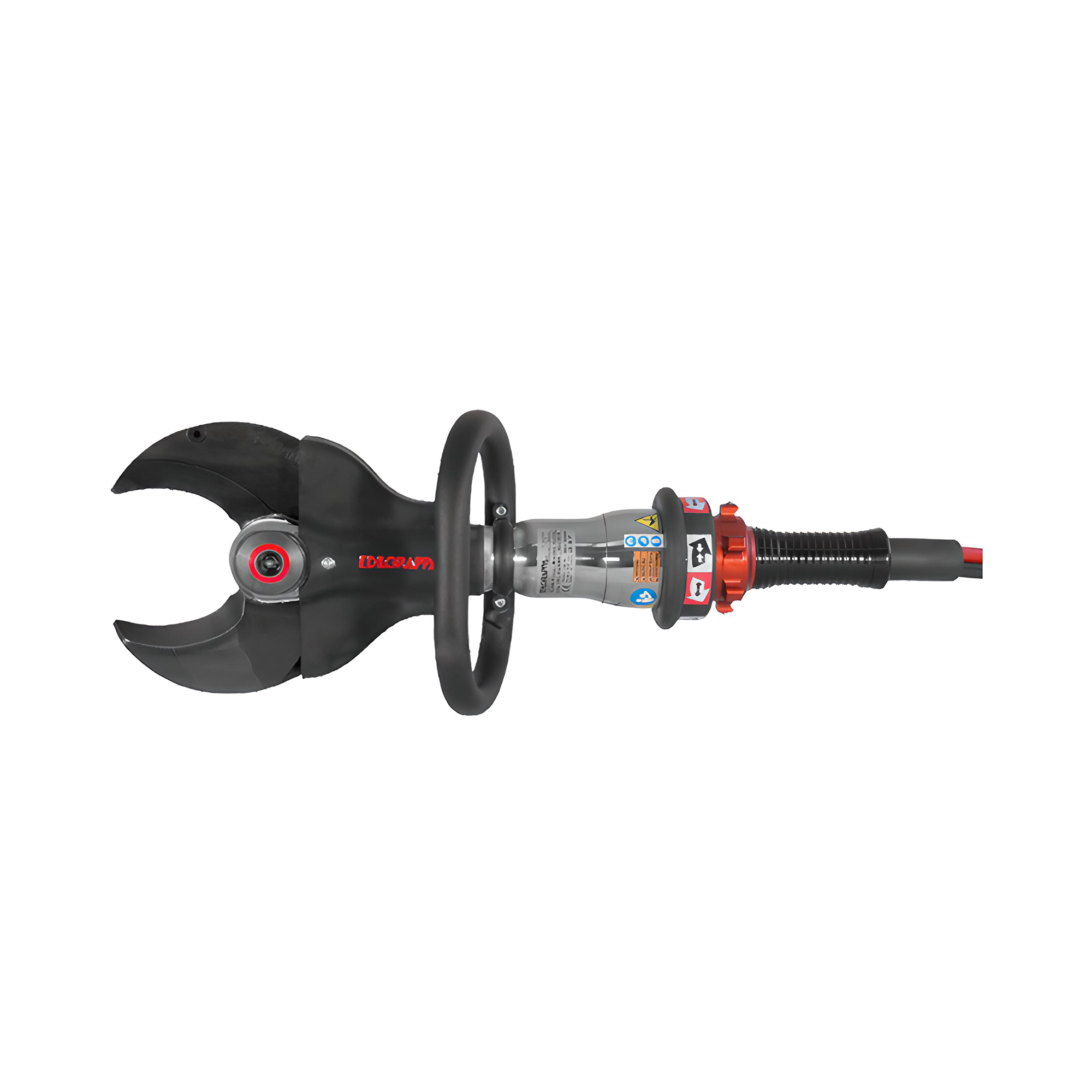

F145N hydraulic

Edilgrappa’s F145N is a hydraulic manual cutter manufactured in Italy for cutting cables, catalytic converters, car chassis, sheet metal, steel and aluminium profiles.

The F145N is the ideal product for controlled demolition.

The F145N is a manual hydraulic cutter that requires a separate hydraulic power unit. Also available with electric controls (requires a suitable pump) instead of the hand control.

More Information

Blade opening 145 mm
Cutting capacity 26 mm diameter
Cutting force 363 kN
Piston force 157 kN (16 t)
Working pressure 70 MPa (700 bar)
Cylinder Double acting
Weight 17.5 kg
Dimensions (closed) LxWxH 698 x 250 x 159 mm
Dimensions (open) LxWxH 688 x 250 x 159 mm
