Durapac TW Series
A compact, reversible square drive hydraulic torque wrench range spanning 112 to 72,000 Nm, with ±3% accuracy and lightweight alloy construction.
Additional Information
More Information

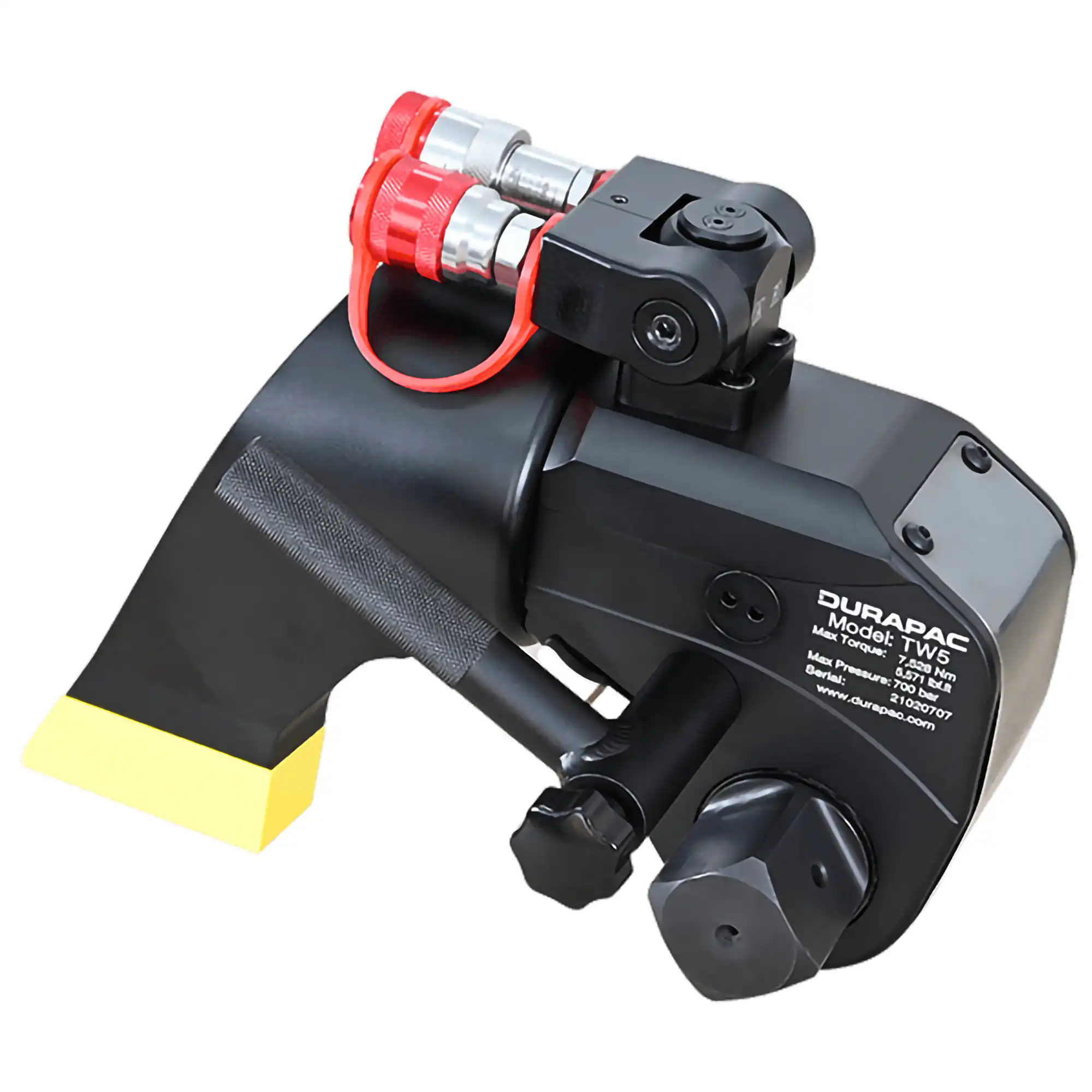

The Durapac TW Series is a compact, versatile square drive hydraulic torque wrench range, available from ¾” to 2½” drive sizes. Torque output spans 112 to 72,000 Nm (82 to 53,280 ft-lbs), giving crews a single wrench family for jobs from precision work through to heavy industrial bolting. A titanium-aluminium and high-strength steel alloy construction keeps the tool lightweight without sacrificing strength or durability.
Key Features
- Reversible square drive supports both tightening and loosening applications.
- Reaction pawl design improves efficiency and accuracy during operation.
- 360° x 180° swivel coupler with locking screw couplings for flexible positioning.
- Titanium-aluminium and high-strength steel alloy construction minimises weight while maximising strength.
- ±3% accuracy delivers consistent, repeatable results.
- Optional extended reaction arm available for applications needing extra clearance.
Typical Applications
- Structural steel and flange bolting
- Pressure vessel and pipeline connections
- Heavy industrial maintenance and shutdowns
- Applications spanning precision torque through to extreme high-load bolting
Durapac TW Series Specifications
| Spec | Detail |
|---|---|
| Drive Sizes | ¾” to 2½” |
| Torque Range | 112 – 72,000 Nm (82 – 53,280 ft-lbs) |
| Accuracy | ±3% |
| Operation | Reversible (tighten/loosen) |
| Coupler | 360° x 180° swivel with locking screw couplings |
| Construction | Titanium-aluminium and high-strength steel alloy |
| Weight / Dimensions | Varies by model size — confirm exact model with manufacturer |
