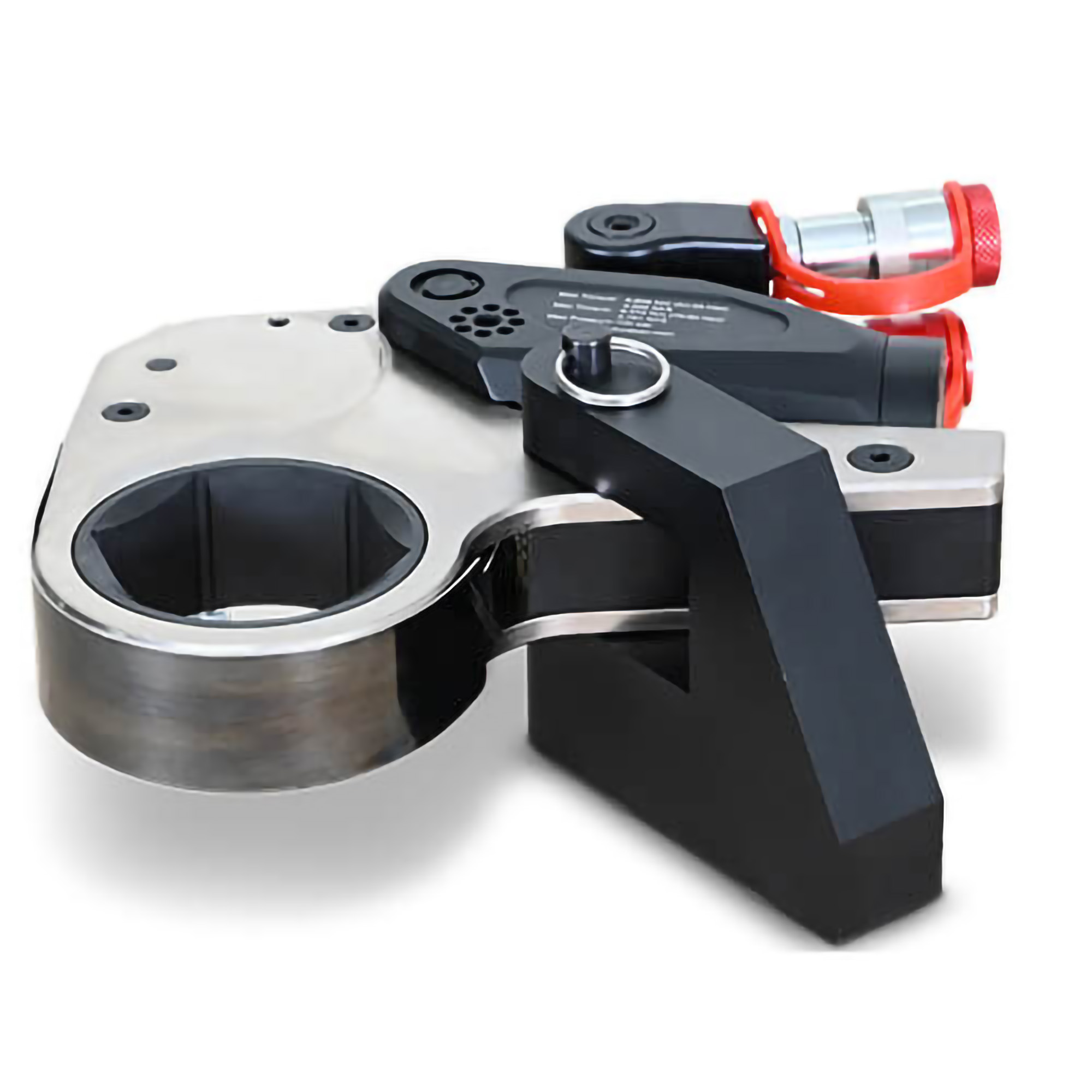

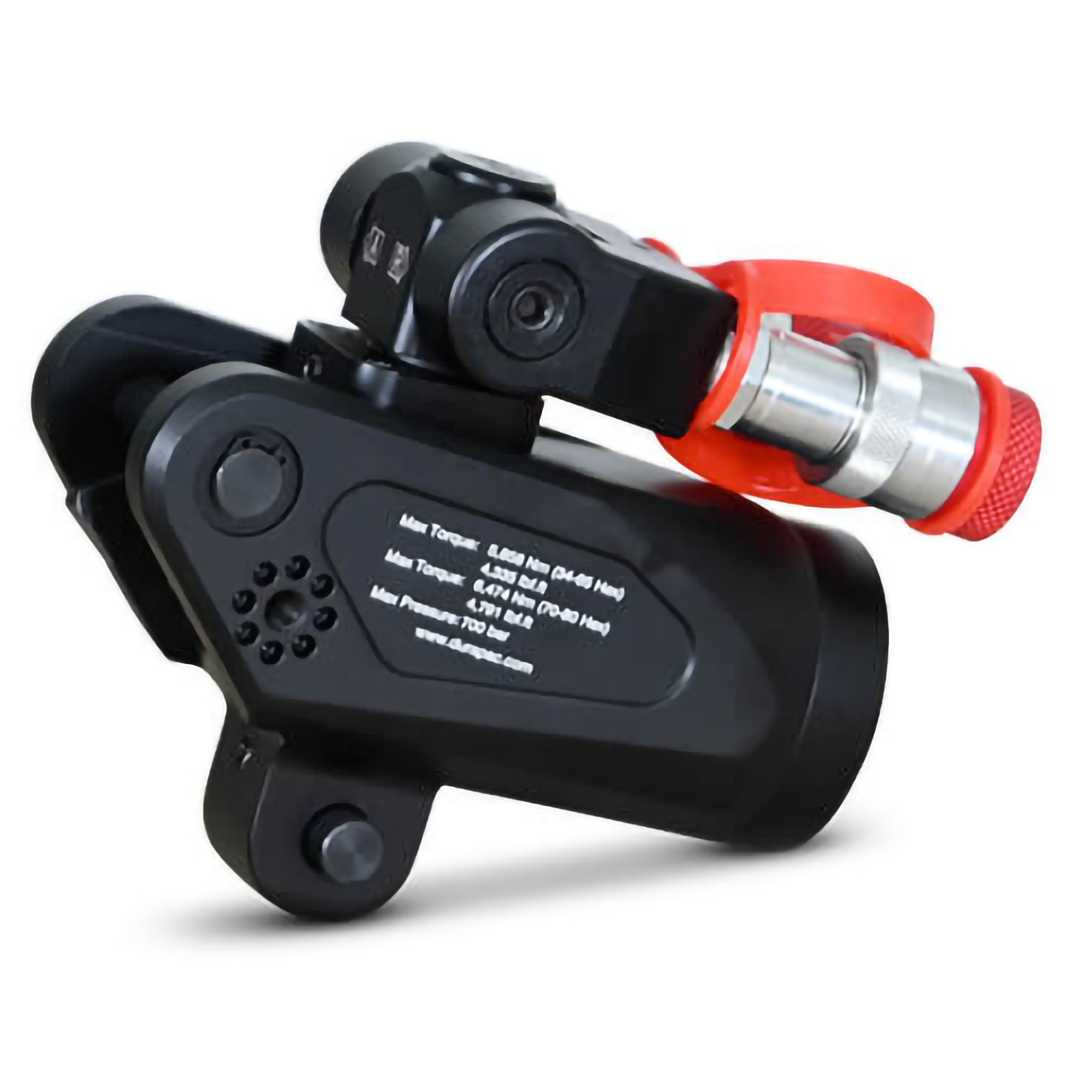

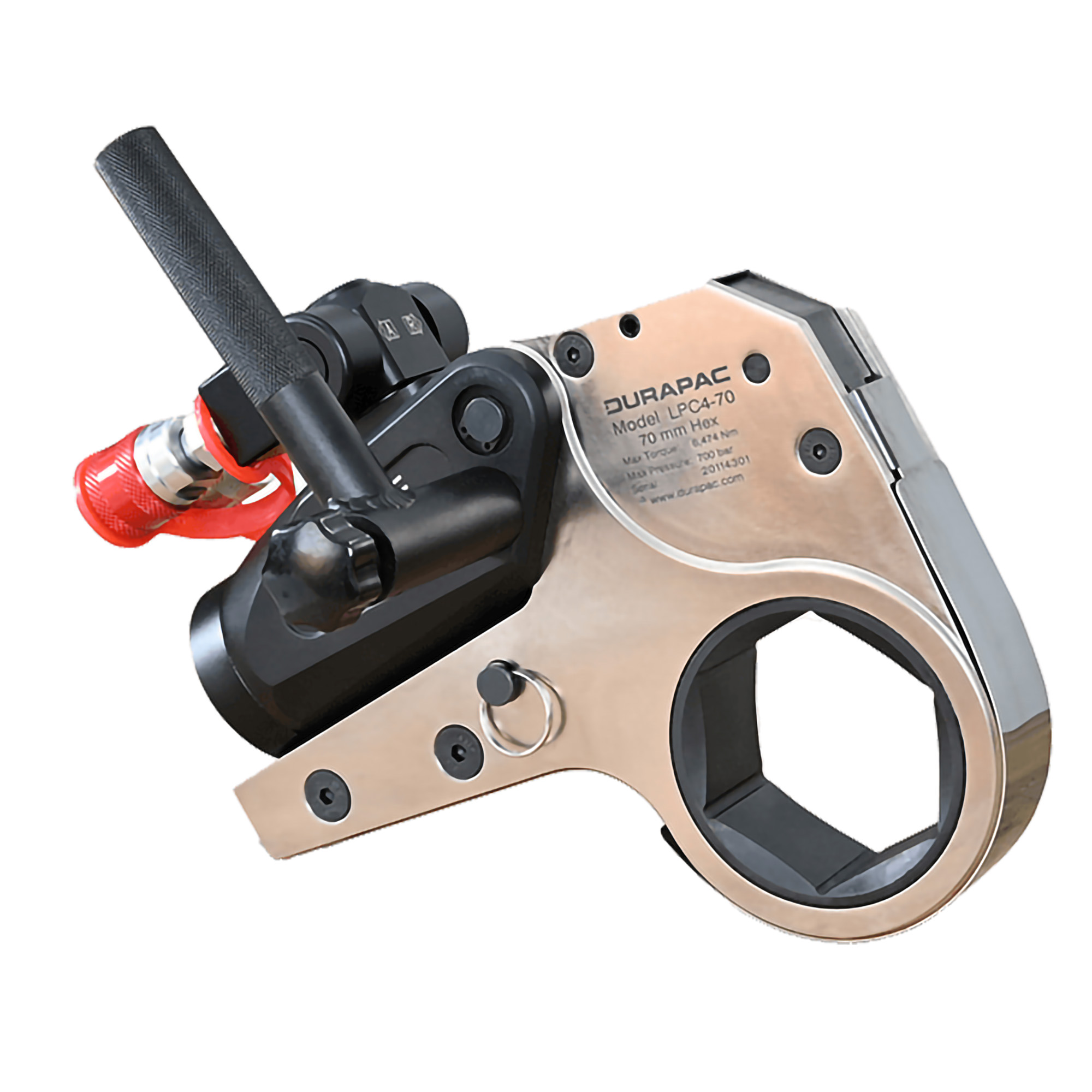

Durapac LPC Series
The LPC-Series Low Profile Hydraulic Hexagon Wrenches are an essential tool for limited clearance applications. These versatile torque wrenches support an extensive range of interchangeable hexagon ratchet cassettes that deliver a torque range of 232 to 44,593 Newton Metres (172 to 32,999 ft/lbs).
Additional Information
More Information
The Durapac LPC Series is a low profile hydraulic hexagon wrench range purpose-built for limited clearance applications. An extensive range of interchangeable hexagon ratchet cassettes delivers torque from 232 to 44,593 Nm (172 to 32,999 ft-lbs).
In addition, metric and imperial reducer inserts are available for even wider coverage. A titanium aluminium alloy body keeps the tool strong yet lightweight, and every wrench is supplied with a calibration certificate of accuracy, traceable to international standards.
Key Features

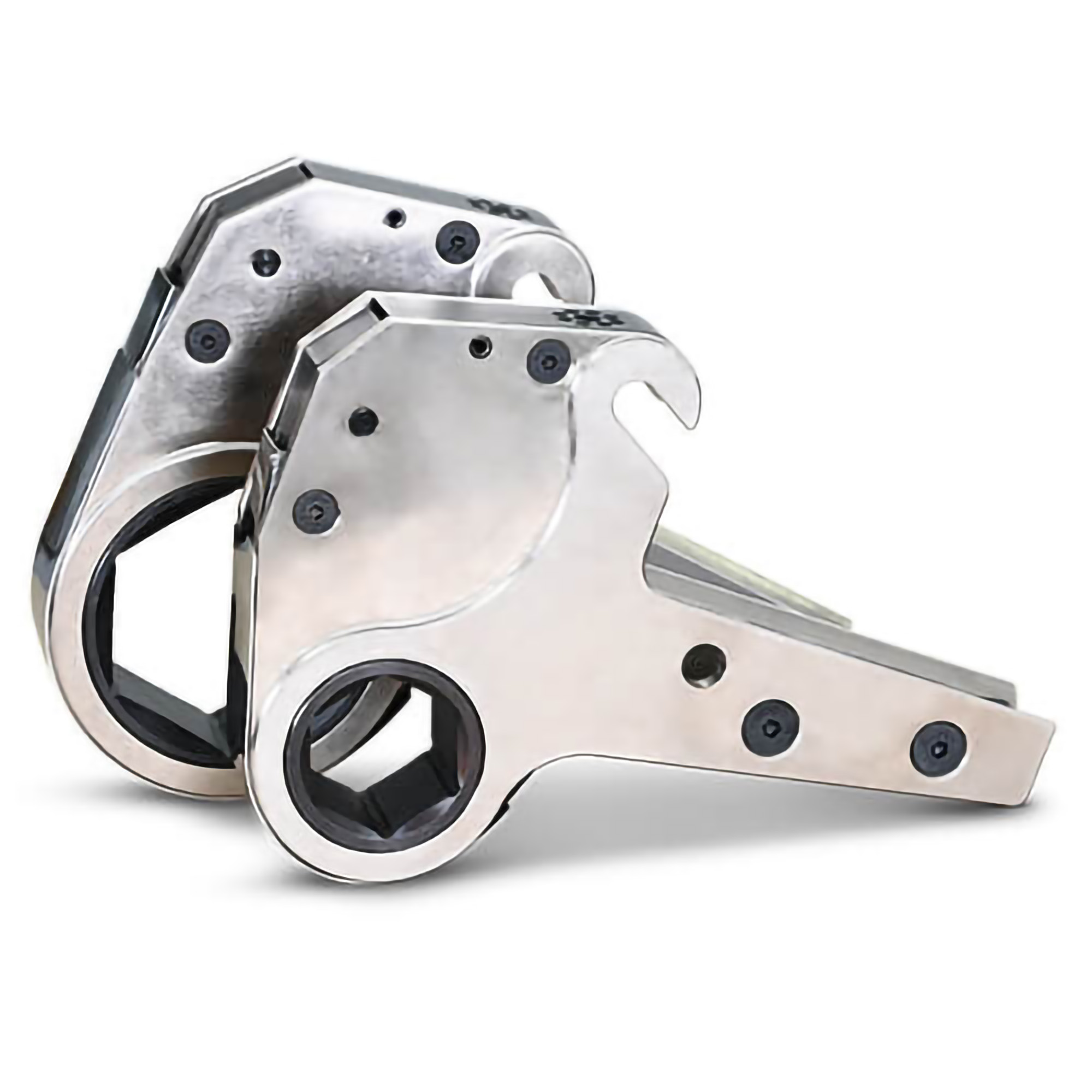

- Interchangeable hexagon ratchet cassettes cover a wide range of bolt sizes from one wrench head.
- Metric and imperial reducer inserts extend size coverage even further.
- 360° swivel couplers with screw couplings support flexible positioning.
- Titanium aluminium alloy body minimises weight while maximising strength.
- ±3% accuracy delivers consistent, repeatable results.
- Laser-engraved cassettes show model number, serial number, and maximum capacity for easy identification.
- Calibration certificate of accuracy supplied with every wrench, traceable to international standards.
- Extension reaction arms and low point reaction paddles available as accessories.
Typical Applications
- Restricted-access bolting where standard wrenches cannot fit
- Pressure vessel and pipe flange connections
- Oil and gas, petrochemical, and industrial maintenance
- Mine site and heavy industrial bolting
Durapac LPC Series Specifications
| Spec | Detail |
|---|---|
| Torque Range | 232 – 44,593 Nm (172 – 32,999 ft-lbs) |
| Max Operating Pressure | 700 bar |
| Accuracy | ±3% |
| Cassette System | Interchangeable hexagon, metric and imperial |
| Coupler | 360° swivel with screw couplings |
| Construction | Titanium aluminium alloy body |
| Weight / Dimensions | Varies by model and cassette size — confirm exact model with manufacturer |
