Hytorc – XLCT
The world’s best-selling limited clearance hydraulic bolting system, delivering 329 to 80,143 Nm since 1992, with interchangeable cartridge configurations.
Additional Information
More Information

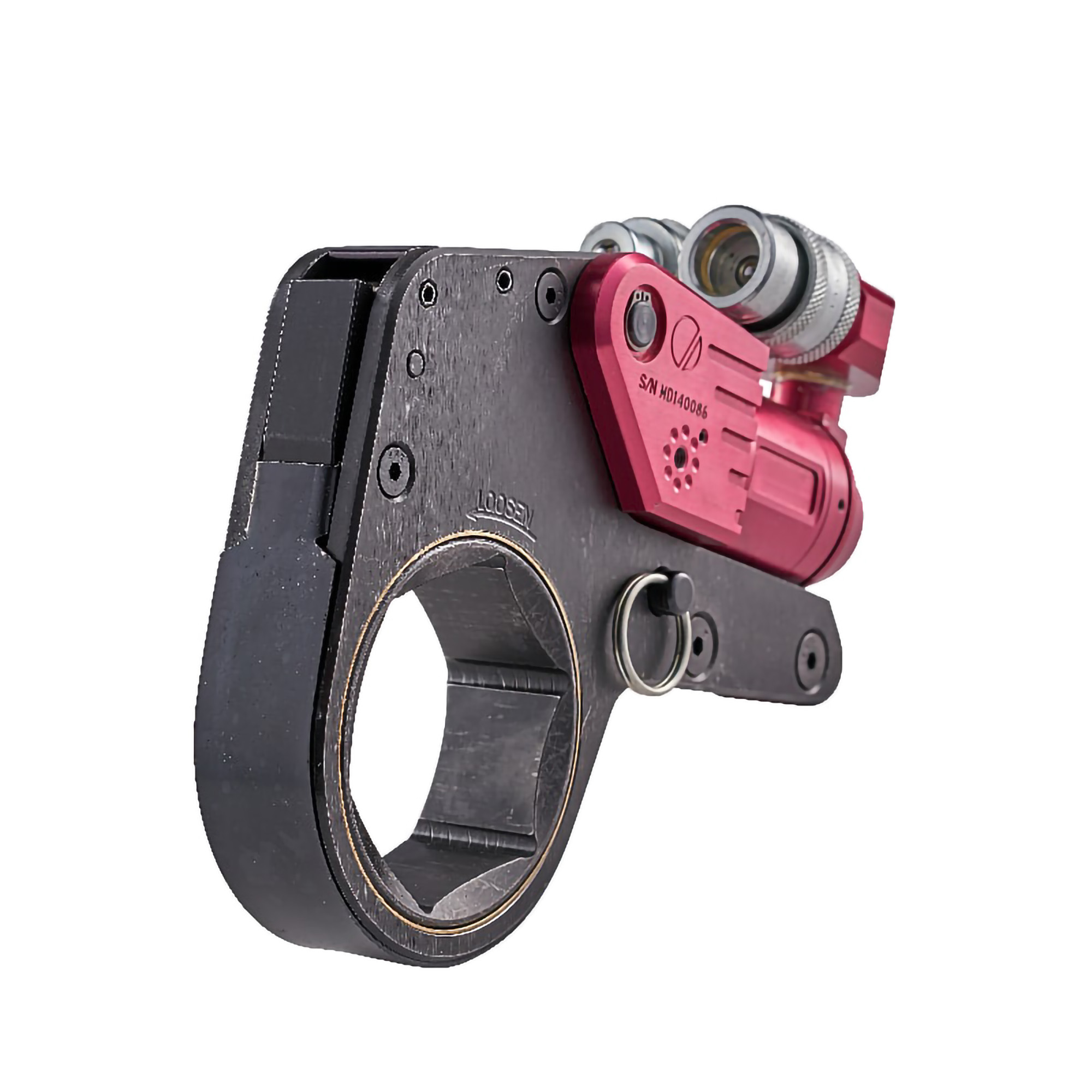

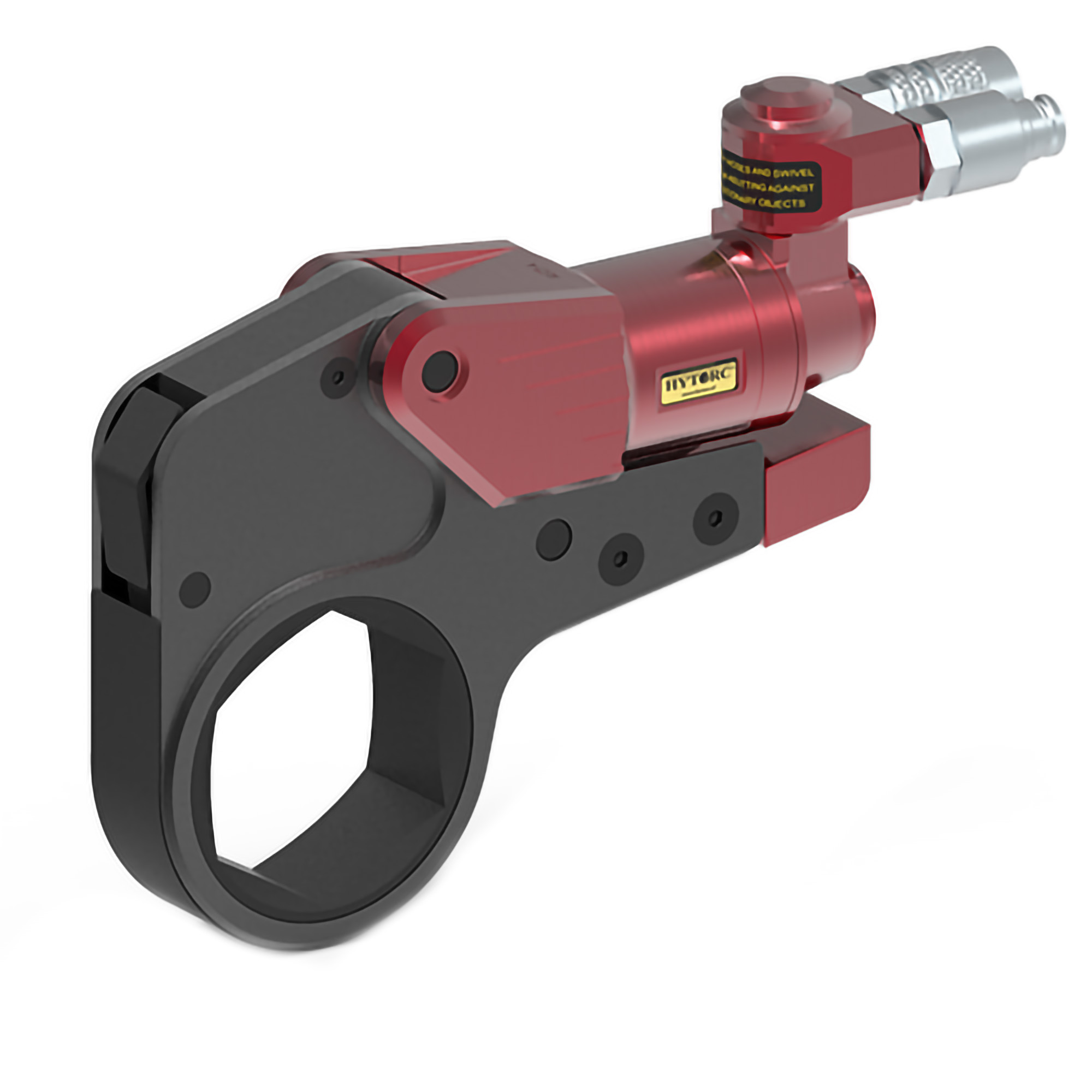

The Hytorc XLCT is the world’s best-selling limited clearance industrial bolting system, with more than 100,000 units in use worldwide since 1992. Its signature red housing has represented quality, durability, and reliability on job sites across every major industry for more than three decades. Torque output spans 329 to 80,143 Nm (243 to 59,110 ft-lbs).
Key Features
- Lock-up release lever — releases pressure after torqueing for easy tool removal, shared with the MXT and STEALTH.
- Zero-Slip ratchet — a secondary pawl prevents the ratchet from turning against the driven direction, delivering more powerful breakout and faster tightening.

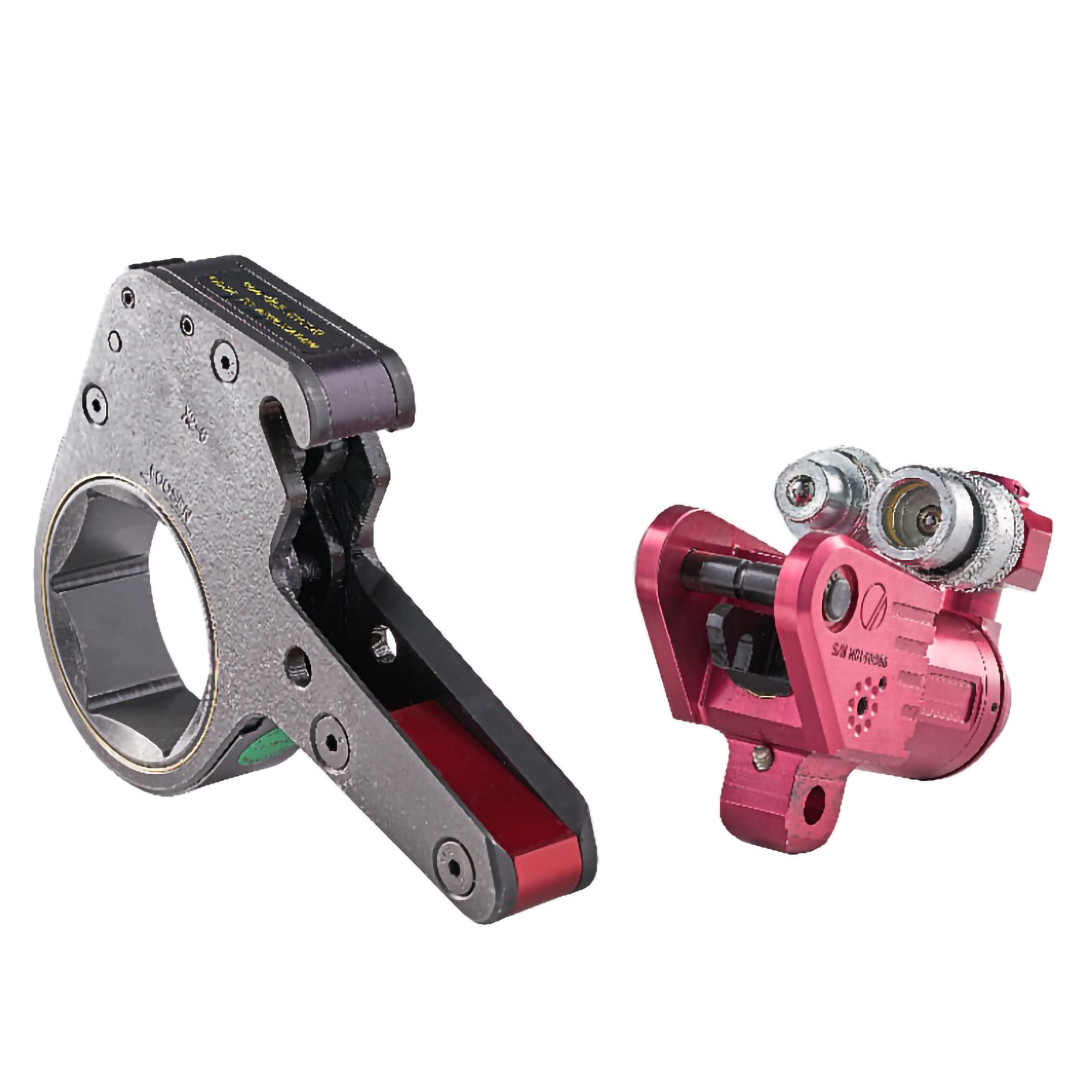

- Interchangeable cartridges cover 6-point hex, 12-point hex, Allen drives, square drives, open spanners, and more configurations.
- Established, industry-proven design trusted across major industries since 1992.
Typical Applications

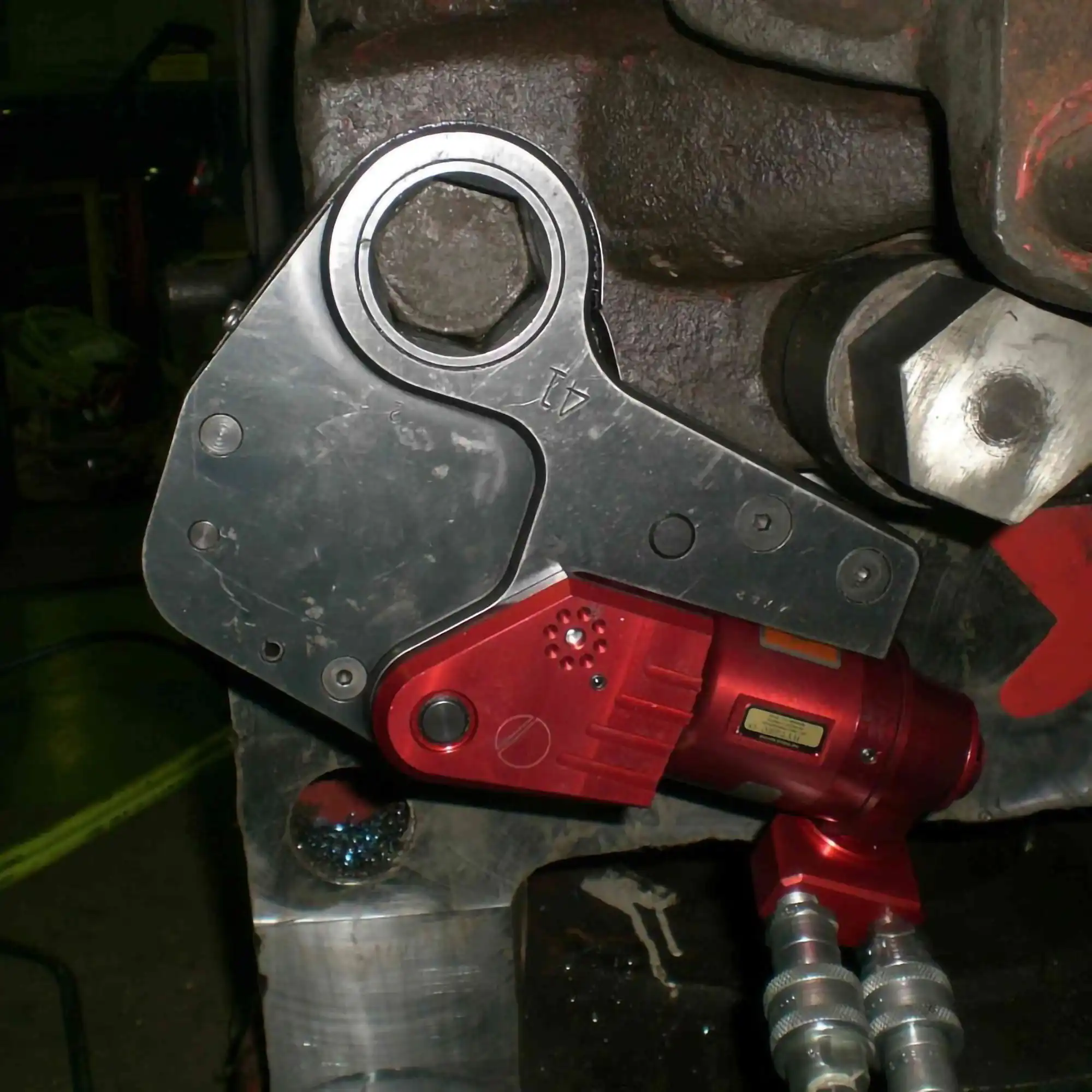

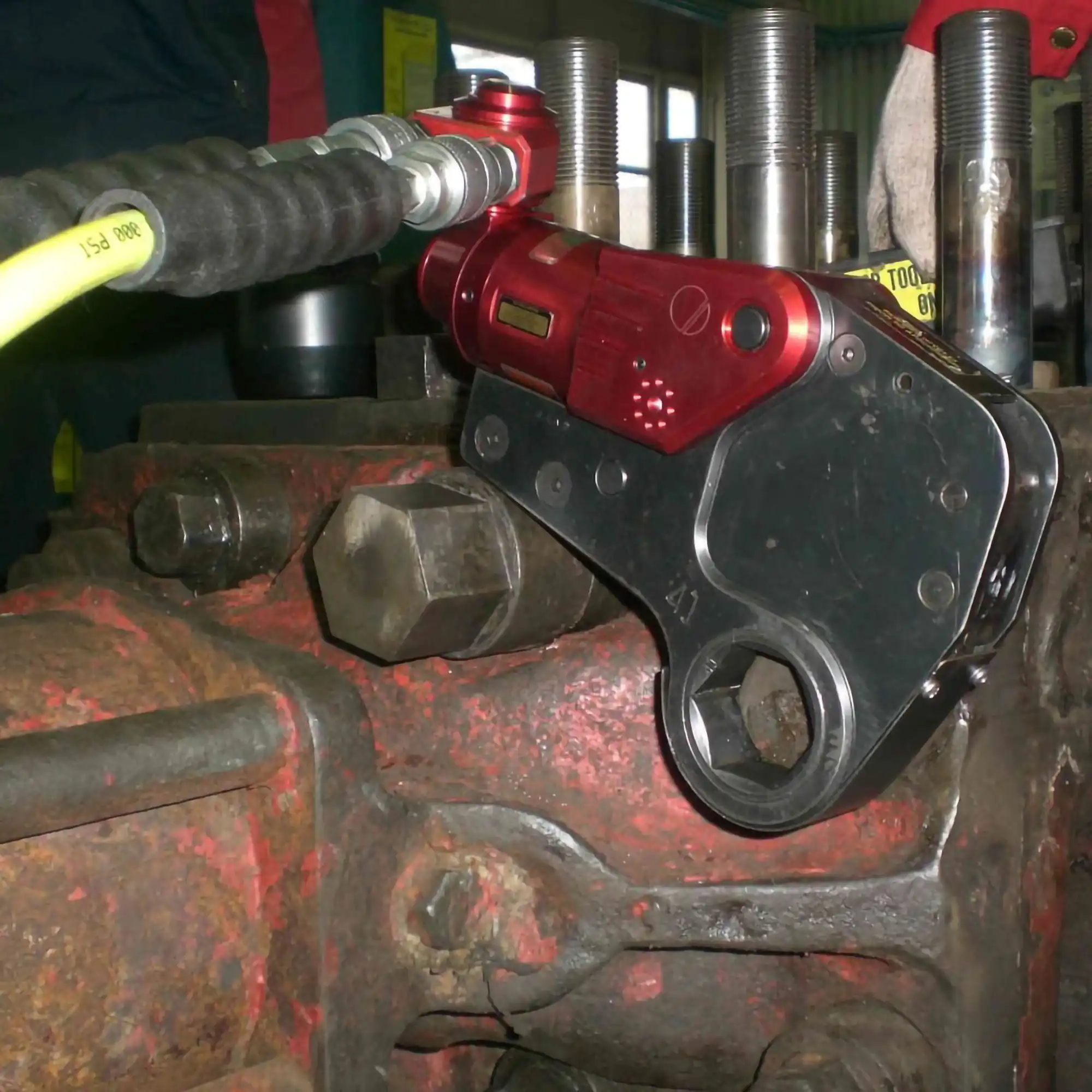

- Limited clearance and confined-space bolting
- Structural steel and infrastructure construction
- Oil and gas, petrochemical, and power generation maintenance
- Applications needing a range of interchangeable cartridge configurations
Hytorc XLCT Specifications
| Spec | Detail |
|---|---|
| Torque Range | 329 – 80,143 Nm (243 – 59,110 ft-lbs) |
| In Service Since | 1992 |
| Units Deployed | 100,000+ worldwide |
| Ratchet System | Zero-Slip, secondary pawl design |
| Cartridge Options | 6-point hex, 12-point hex, Allen, square drive, open spanner |
| Weight | Varies by model — confirm exact model with manufacturer |
