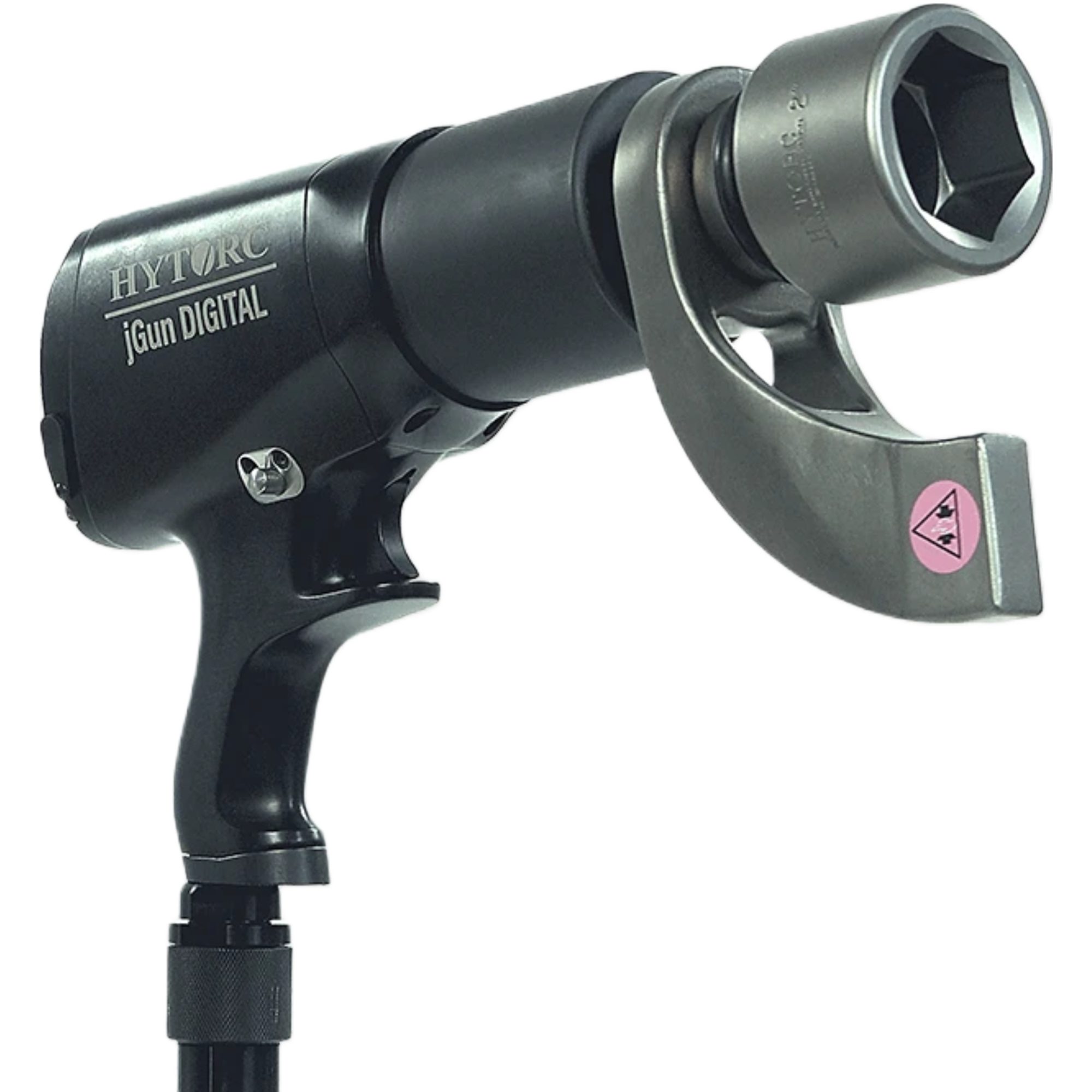

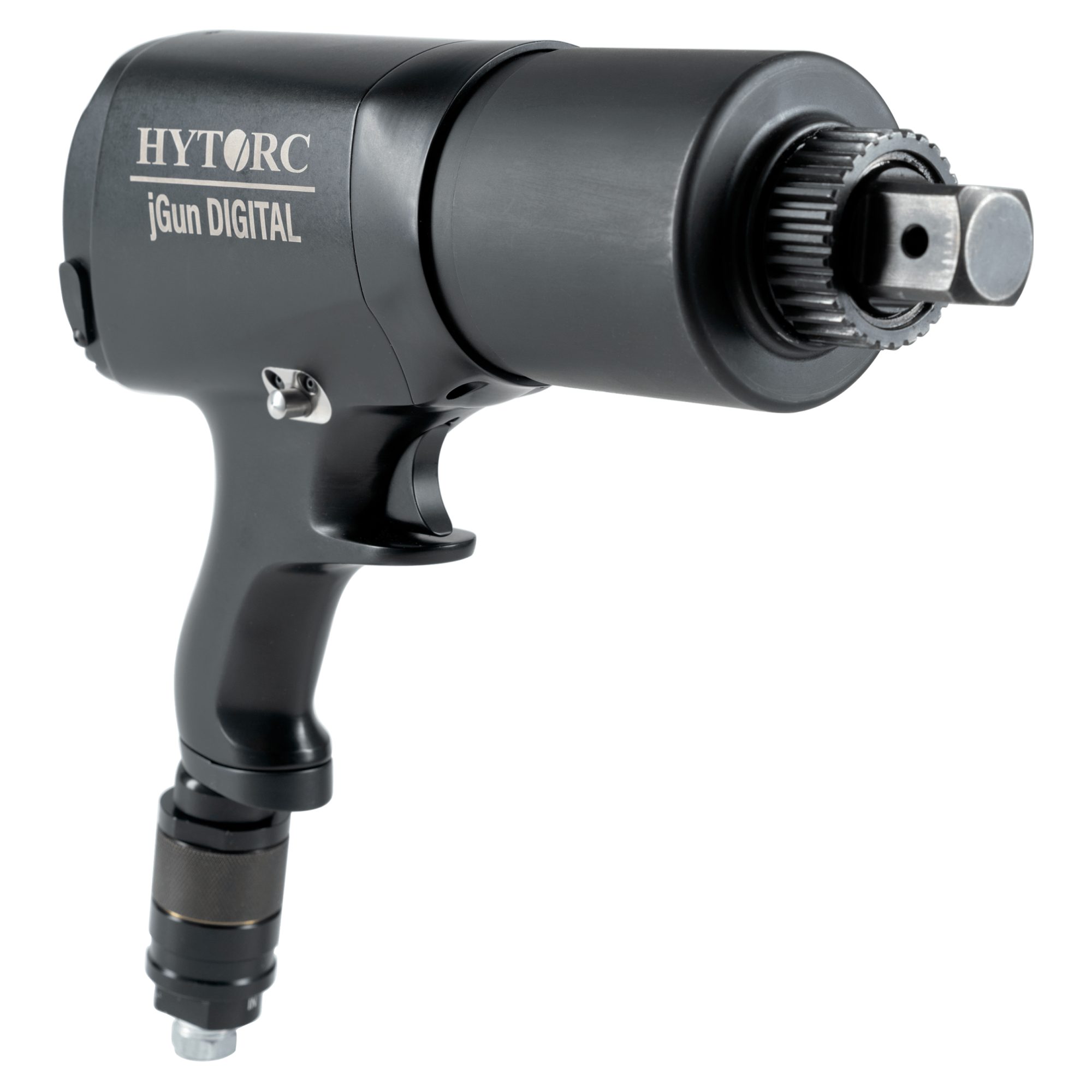

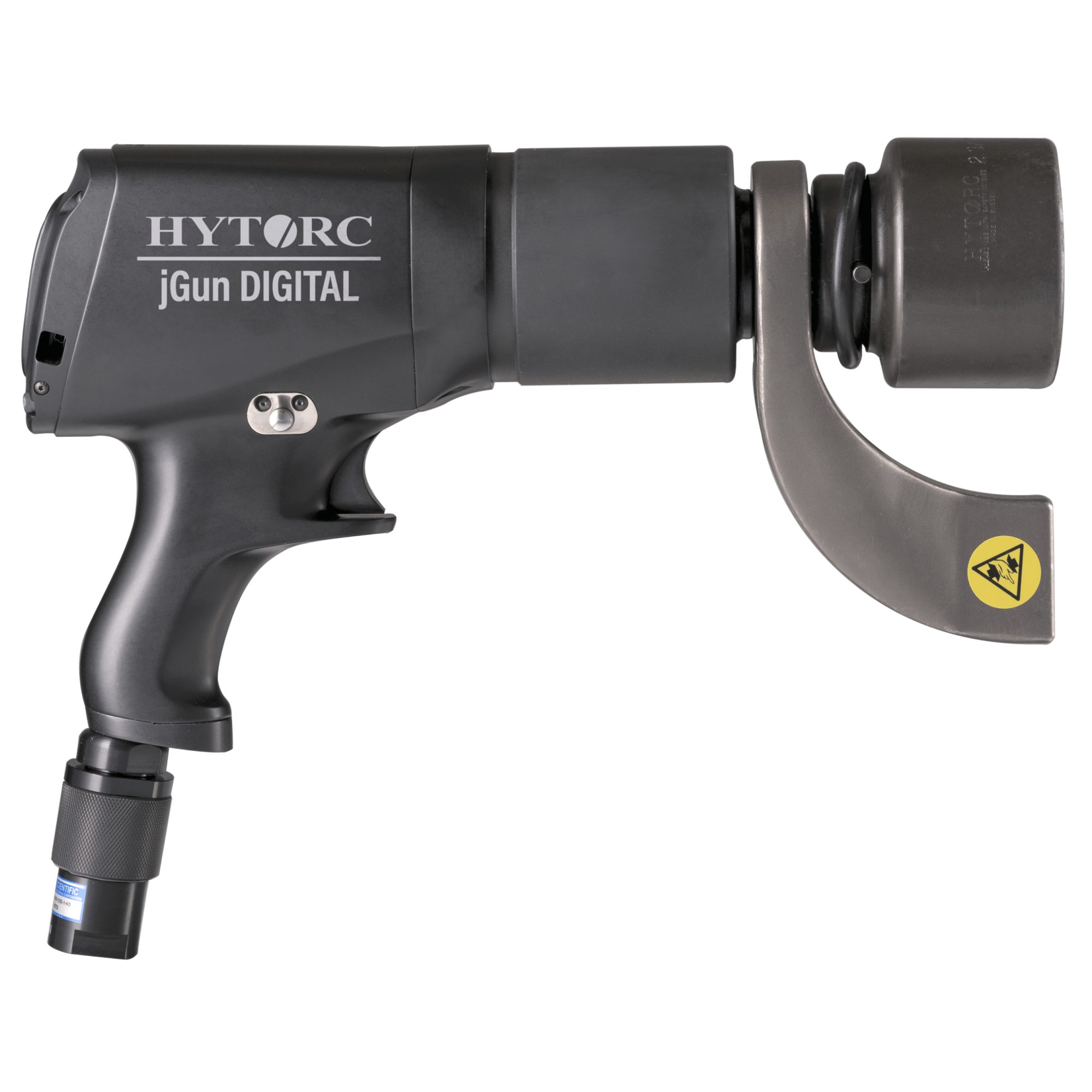

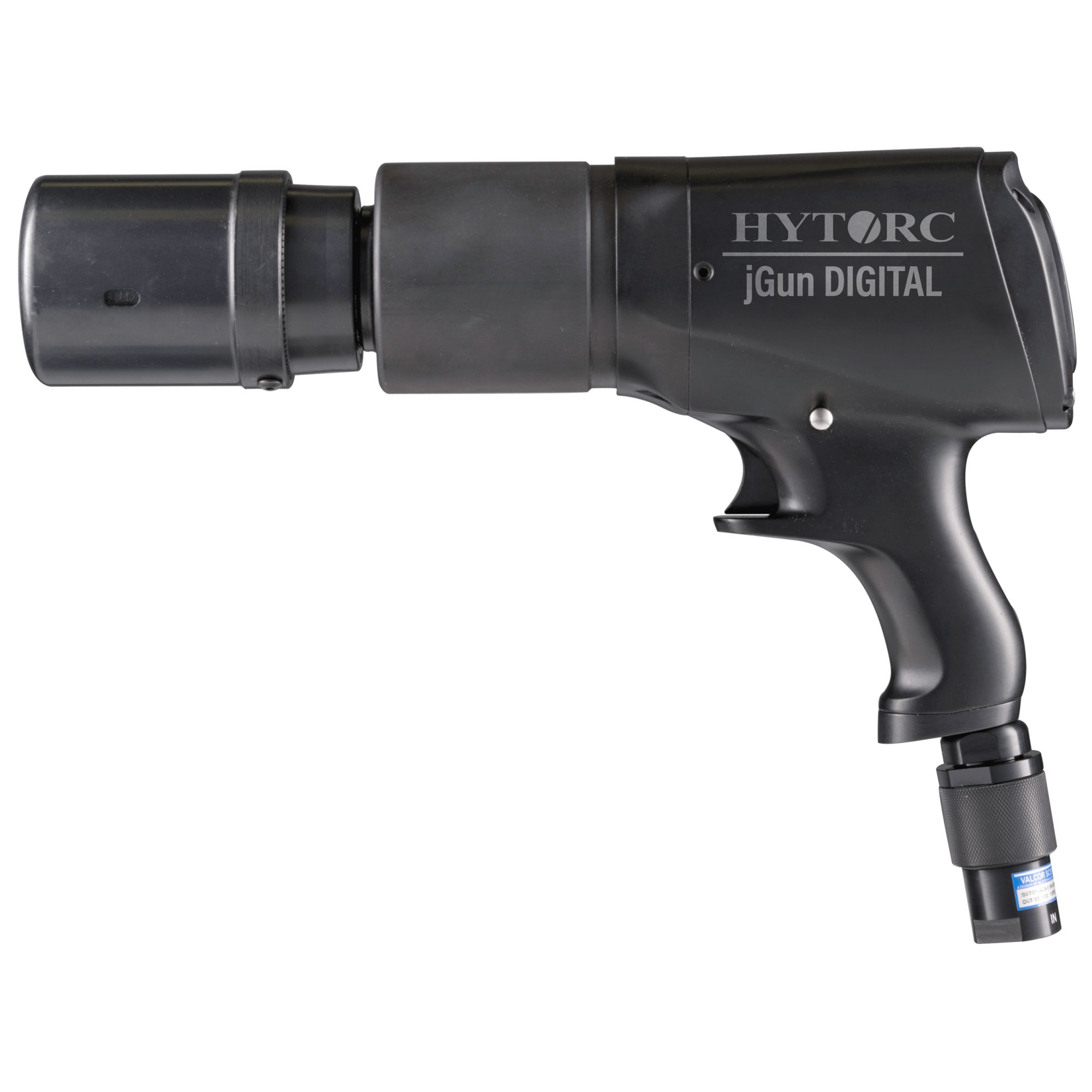

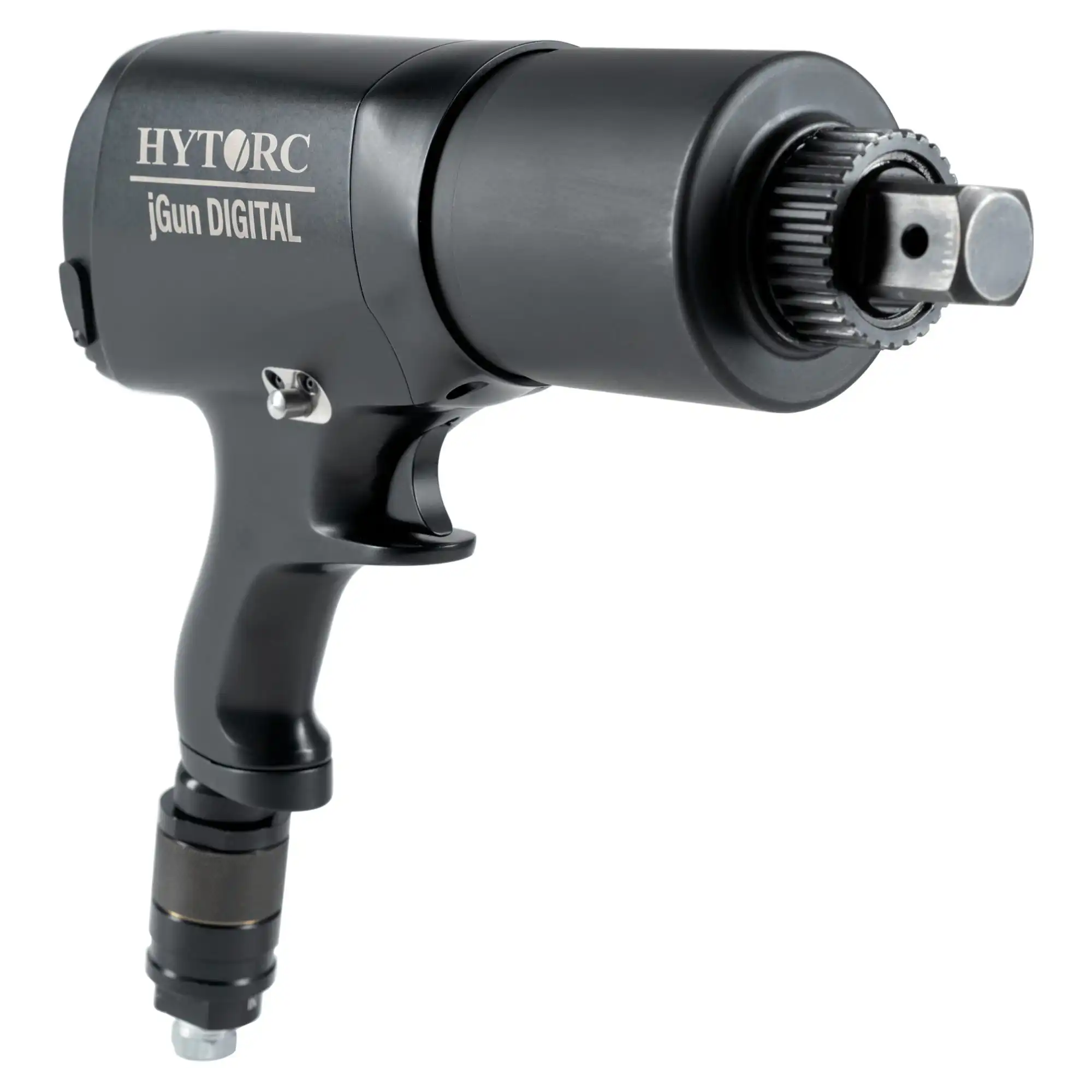

Hytorc Digital jGun
The first torque-adjustable pneumatic multiplier with a digital readout and FRL-free operation, covering 80 to 10,700 Nm in 3/4″ to 1-1/2″ drive.
Additional Information
More Information
The Hytorc Digital jGun is the first torque-adjustable pneumatic multiplier to combine a digital readout with FRL-free operation, covering 80 to 10,700 Nm across 3/4″ to 1-1/2″ square drive. Unlike standard pneumatic tools, it requires no separate filter, regulator, or lubrication system — connect directly to compressed air and work.
Eight models span the full range: JGUN-D.25, D.5, D1, D2, D3, D5, D6.5, and D8.
Key Features

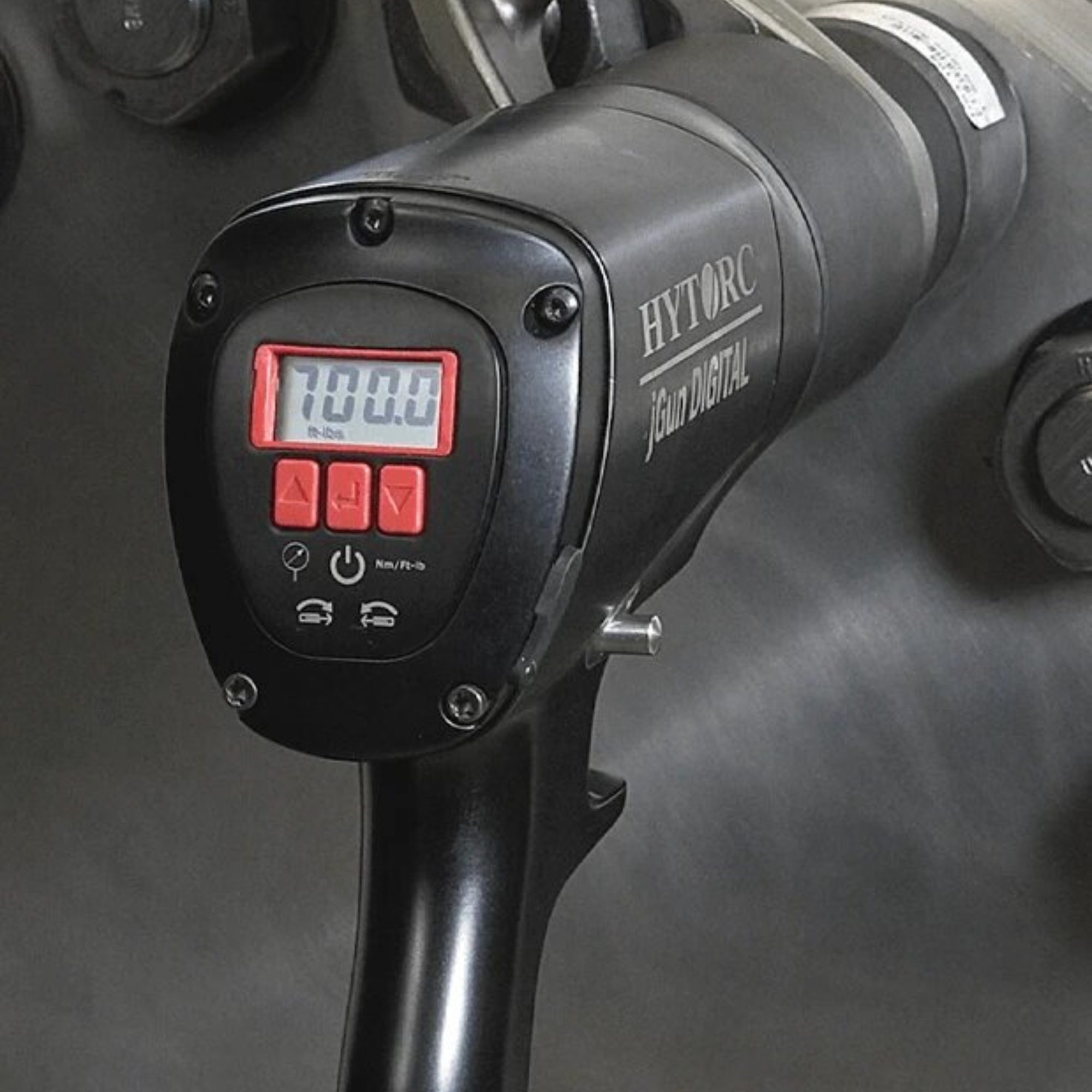

- Digital display shows selected torque directly in Nm or ft-lbs — no pressure-to-torque conversion needed.
- FRL-free operation — patented design eliminates the need for a filter, regulator, and lubricator system.
- Onboard air regulator at the base of the handle adjusts torque with a simple twist.
- Built-in silencer keeps noise at 80 dB or below, reducing hearing risk during extended use.
- Low vibration design reduces the risk of hand and arm vibration syndrome (HAVS).
- Aircraft aluminium construction maximises power-to-weight ratio.
- Compatible with the HYTORC Washer and HYTORC Nut systems.
- ASTM compliant.
Typical Applications
- Heavy industrial bolting requiring precise, digital torque confirmation
- Sites without convenient FRL system access
- Applications needing fast torque switching between tightening and break-out
- Oil and gas, petrochemical, and infrastructure maintenance
Hytorc Digital jGun Specifications
| Spec | Detail |
|---|---|
| Torque Range | 80 – 10,700 Nm |
| Drive Sizes | 3/4″ to 1-1/2″ square |
| Models | JGUN-D.25, D.5, D1, D2, D3, D5, D6.5, D8 |
| Display | Digital (Nm / ft-lbs selectable) |
| FRL Required | No — FRL-free patented design |
| Noise Level | ≤80 dB (built-in silencer) |
| Construction | Aircraft aluminium |
| Compliance | ASTM compliant |
