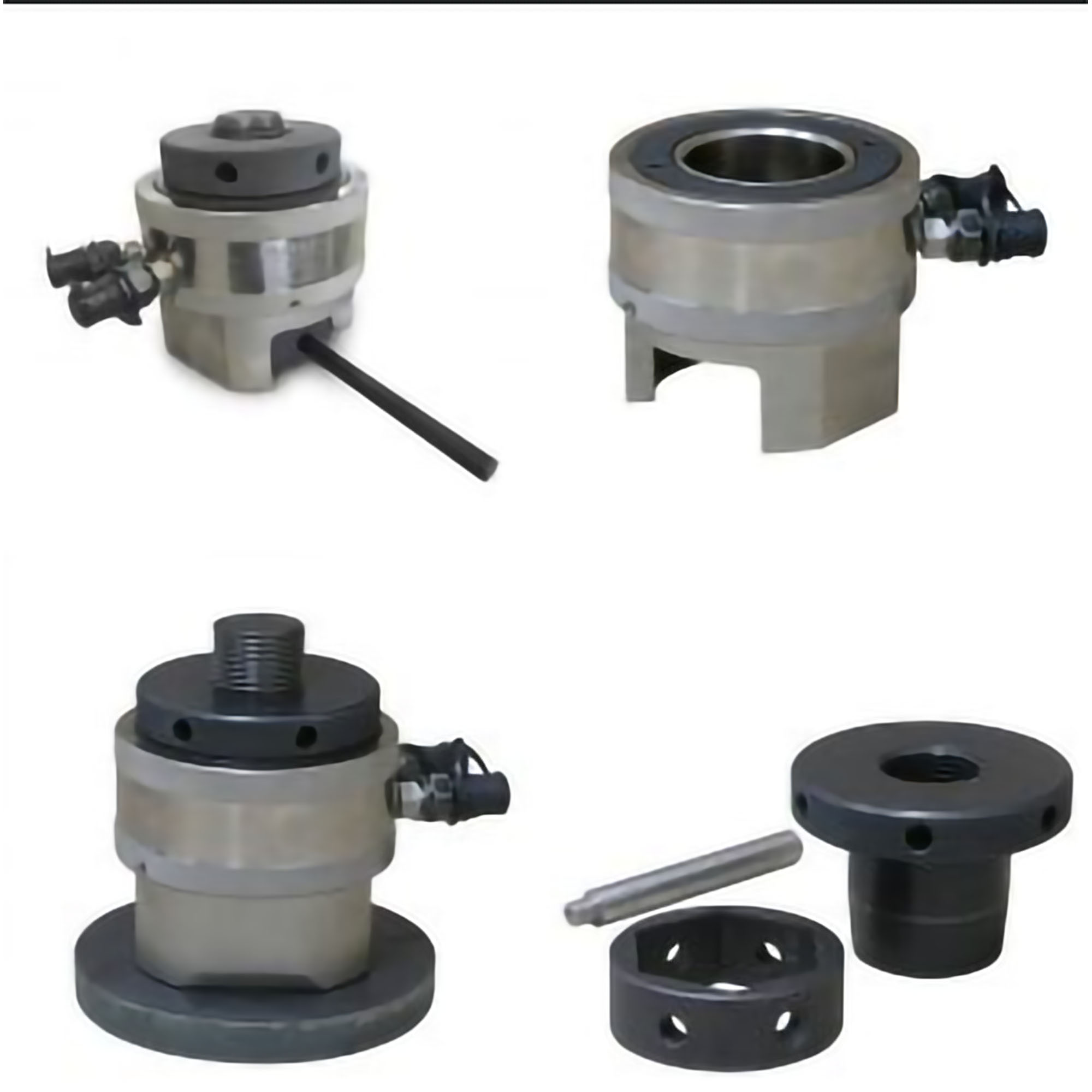

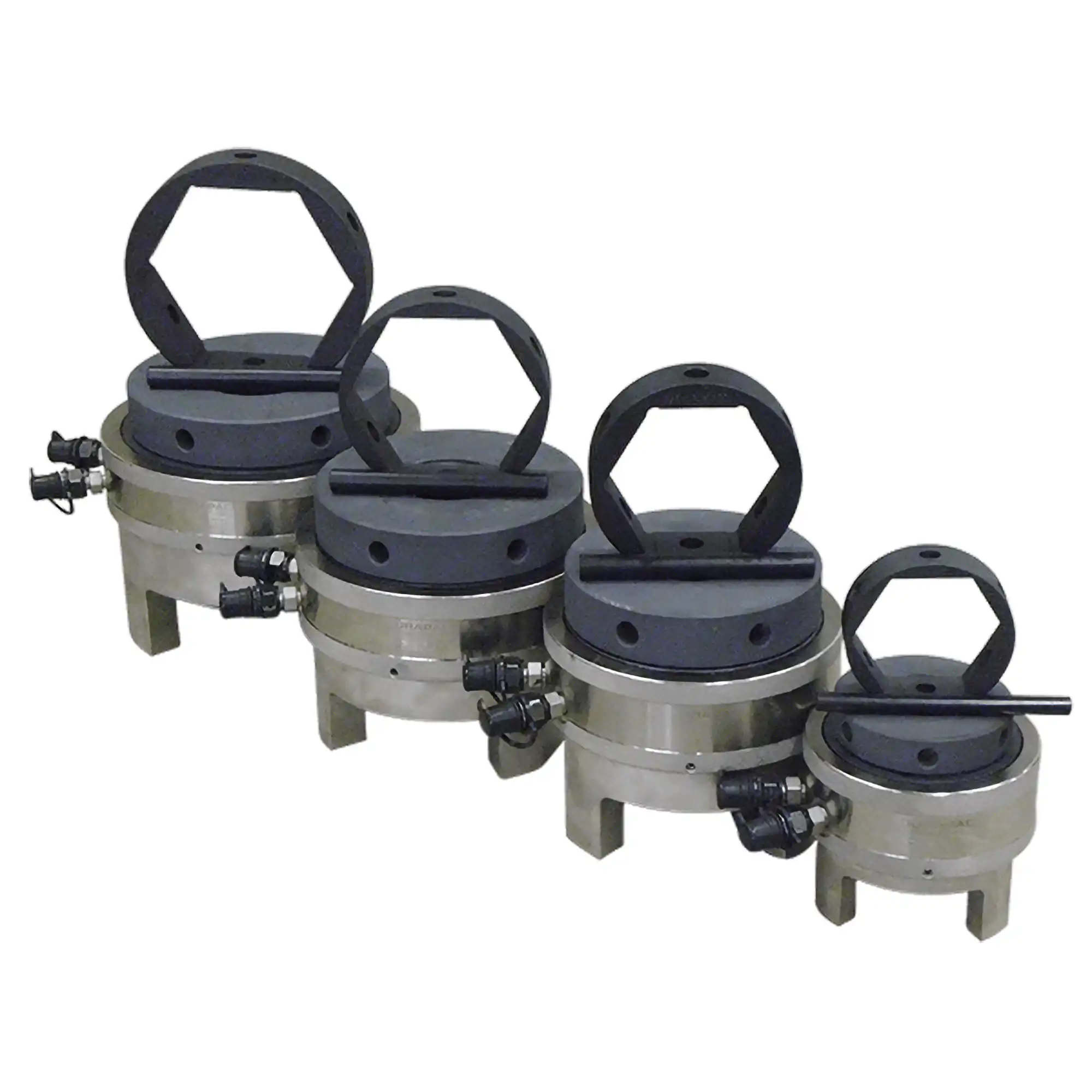

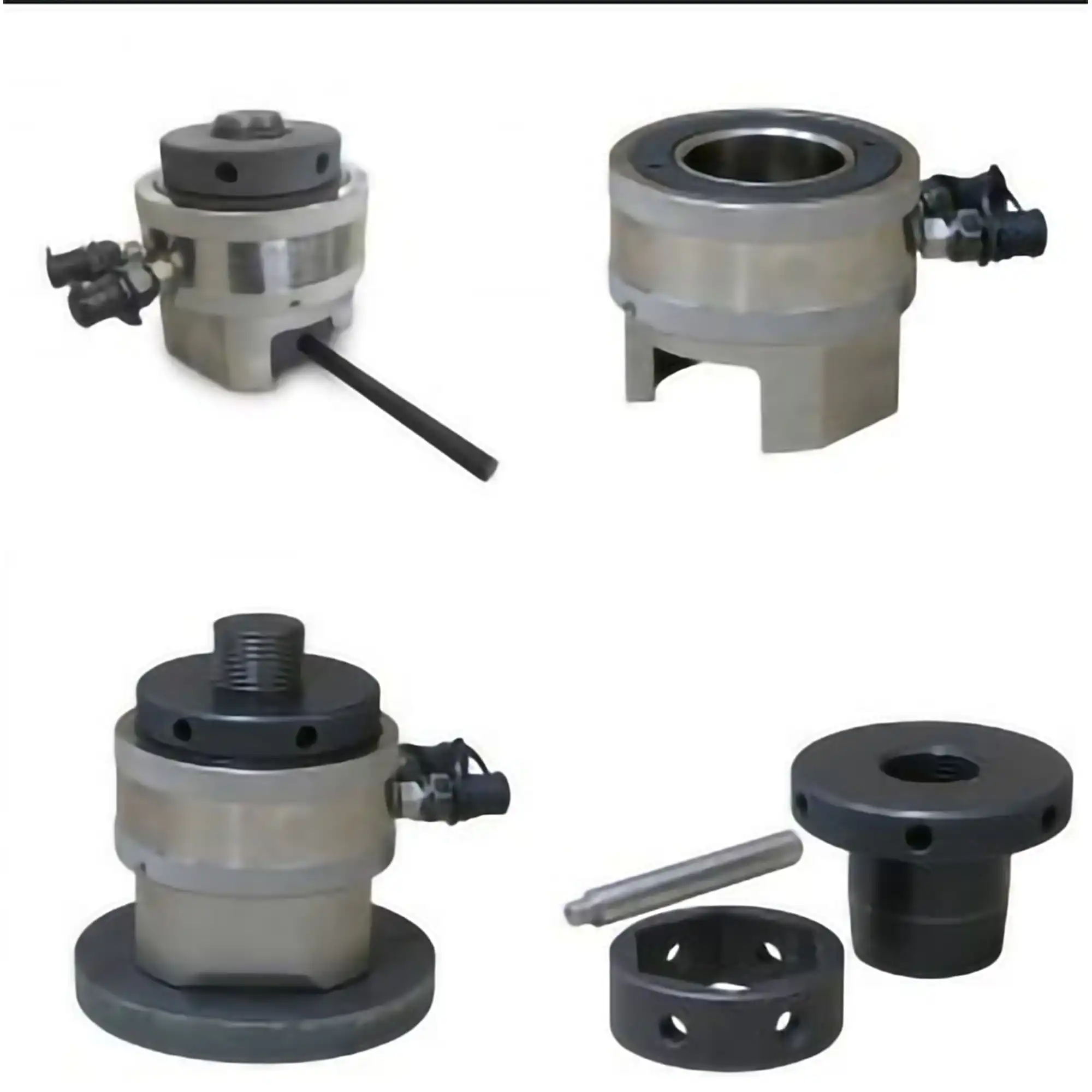

Durapac DBT Series Hydraulic Bolt Tensioner
Ten hydraulic bolt tensioners covering 3/4″ to 5-3/4″ (M20–M150), delivering up to 4,650 kN of friction-free clamp load at 1,500 bar.
Additional Information
More Information
The Durapac DBT Series stretches bolts directly through hydraulic pressure, delivering consistent, friction-free preload across multiple points at once. Unlike a torque wrench, it can tighten more than one fastener simultaneously, so gasket compression stays uniform across critical flanged connections. In addition, ten load cells cover 3/4″ to 5-3/4″ (M20 to M150), fitting all standard ANSI and API flanges.
How It Works
The tensioning process follows four straightforward steps:
- Fit the tensioner over the stud.
- Apply hydraulic pressure to stretch the stud to the required preload.
- Wind the nut down against the joint face while it’s under tension.
- Release the pressure and remove the tool, leaving accurate, friction-free clamp load.
Key Features
- Quick-release bridge and hexagon socket allow fast change-over between jobs.
- Electroless nickel-plated cylinders resist corrosion and are easy to maintain.
- Ten load cells cover the full 3/4″ to 5-3/4″ (M20 to M150) bolt range.
- Lightweight design for easy handling on site.
- Fits all standard ANSI and API flanges.
Typical Applications
- Pressure vessel and flange bolting
- Foundation bolts
- Ring joint connections
- Heat exchangers
- Critical structural connections requiring uniform preload
Durapac DBT Series Specifications
| Spec | Detail |
|---|---|
| Capacity | 300 – 4,650 kN |
| Stroke | 8 – 10 mm |
| Bolt Range | 3/4″ – 5-3/4″ (M20 – M150) |
| Max Operating Pressure | 1,500 bar |
| Number of Load Cells | 10 |
| Cylinder Finish | Electroless nickel plated |
