Hytorc – STEALTH
A limited clearance hydraulic bolting system with a slim, continuous body and a patented dual piston power head, spanning 377 to 47,077 Nm.
Additional Information
More Information

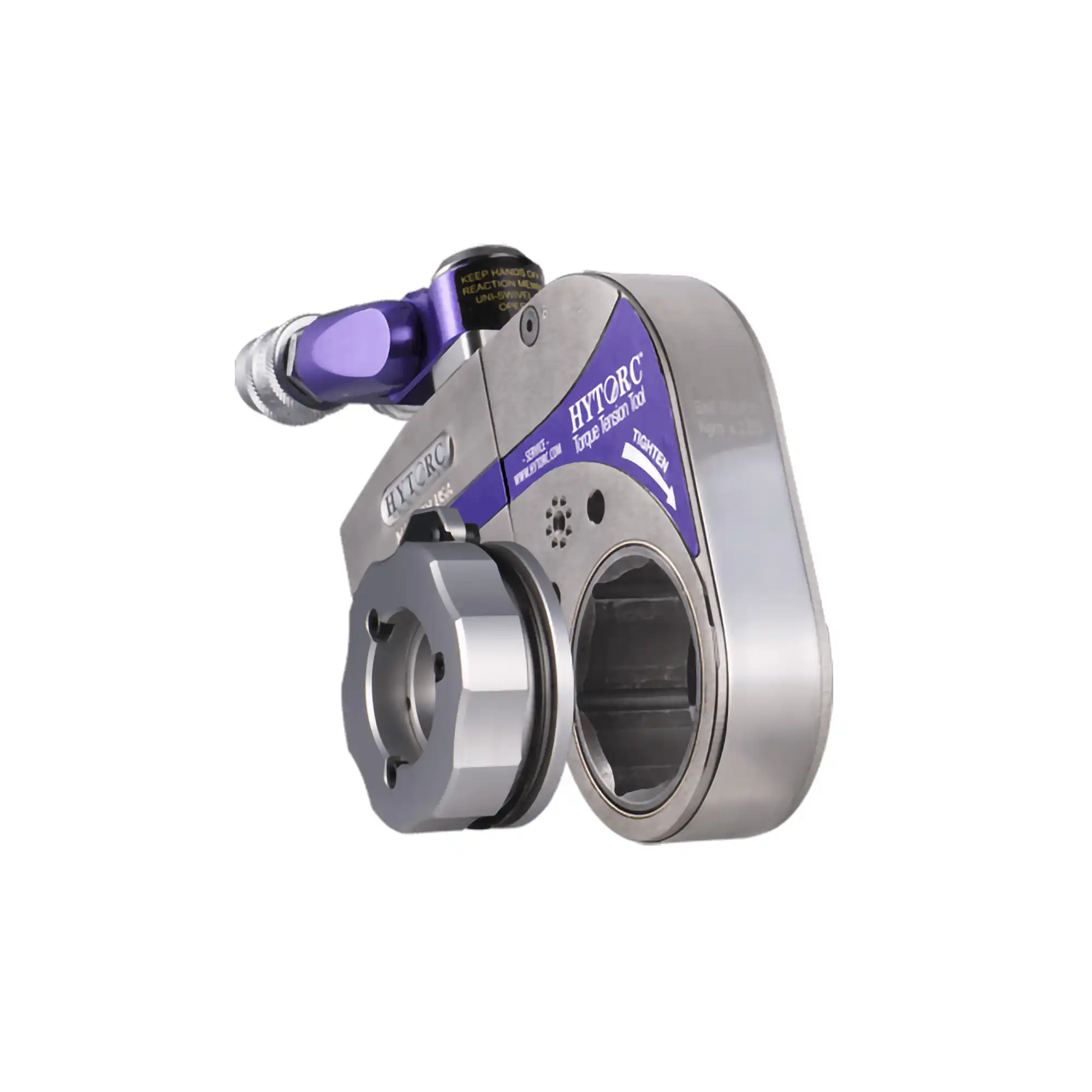

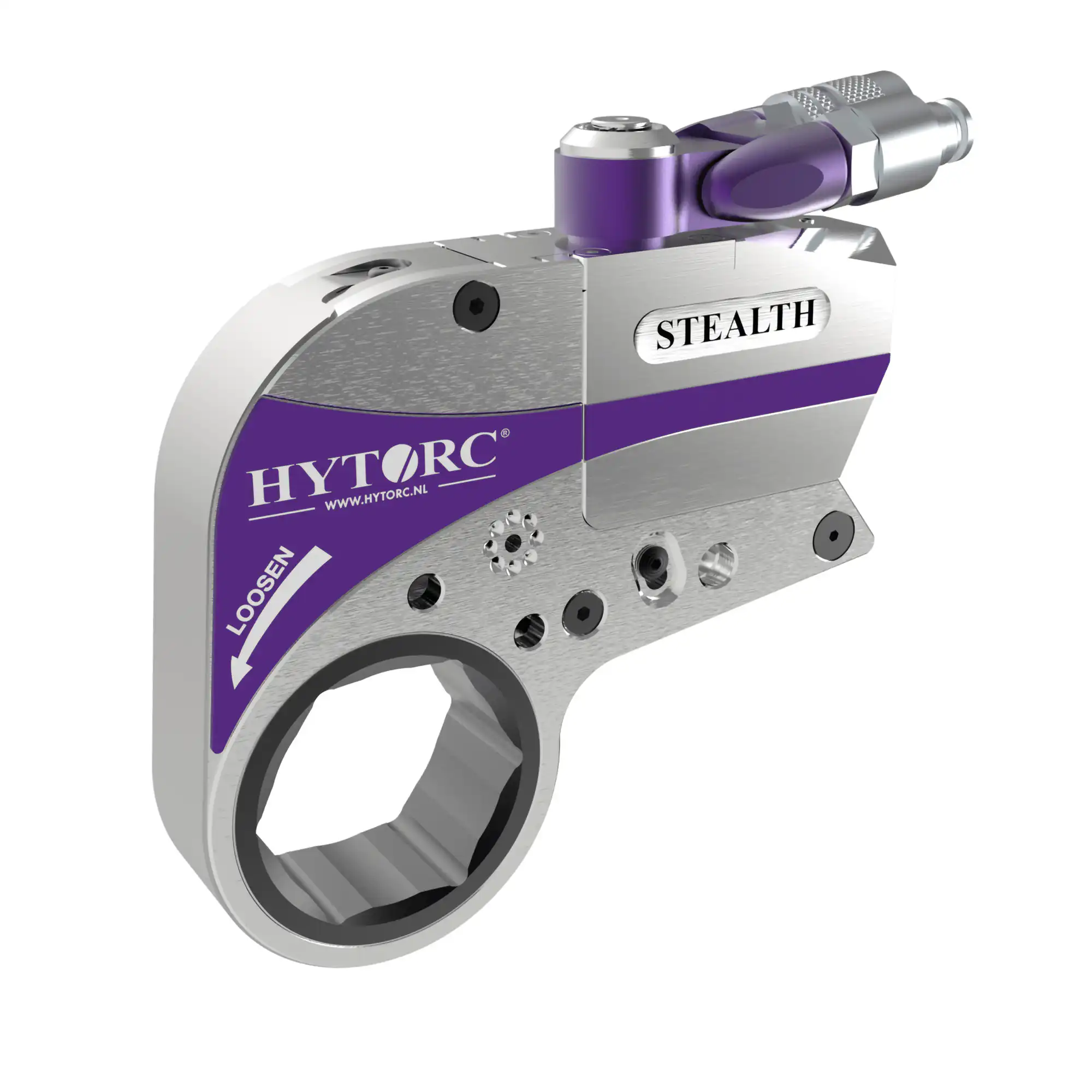

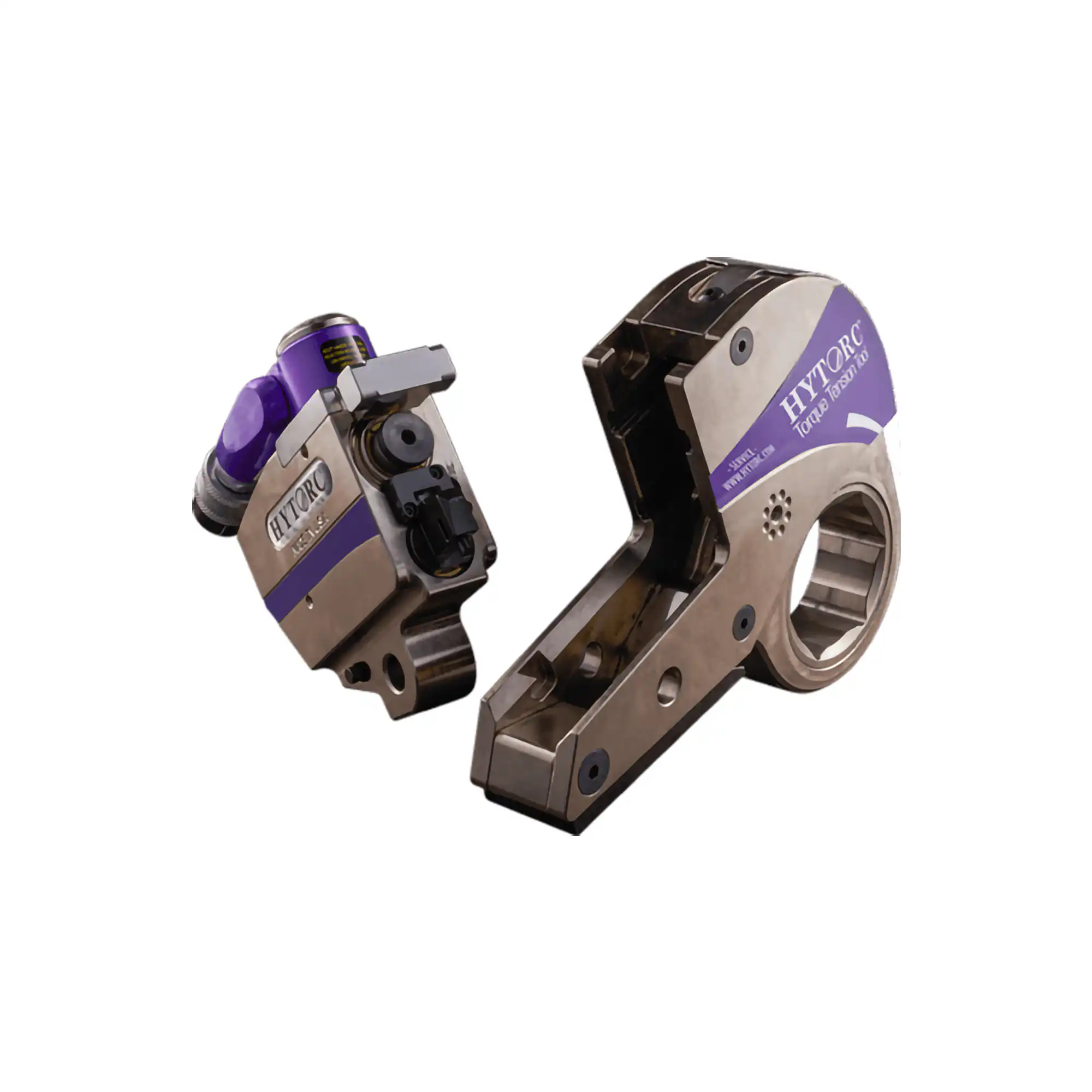

The Hytorc STEALTH is a limited clearance hydraulic bolting system with a slim design that fits where standard tools cannot. Its patented dual piston power head delivers strong speed and power in a continuous slim body, compatible with the HYTORC Washer and HYTORC Nut. Torque output spans 377 to 47,077 Nm (278 to 34,722 ft-lbs), suiting jobs from general maintenance through to critical bolting pathways.
Key Features
- Slim, continuous body design — the first of its kind in the industry, fitting even the tightest confines.
- Patented dual piston power head delivers strong speed and power for limited clearance work.
- STEALTH Lock-On adapter enables hands-free operation, with or without the HYTORC Washer.
- Compatible with the full HYTORC bolting system, including the HYTORC Washer and HYTORC Nut.
Typical Applications
- Limited clearance and confined-space bolting
- General maintenance through to critical bolting pathways
- Oil and gas, petrochemical, and power generation maintenance
- Applications requiring hands-free operation for improved safety
Hytorc STEALTH Specifications
| Spec | Detail |
|---|---|
| Torque Range | 377 – 47,077 Nm (278 – 34,722 ft-lbs) |
| Design | Slim, continuous body for limited clearance access |
| Power Head | Patented dual piston |
| Hands-Free Option | STEALTH Lock-On adapter |
| Compatibility | HYTORC Washer, HYTORC Nut |
| Weight | Varies by model — confirm exact model with manufacturer |
