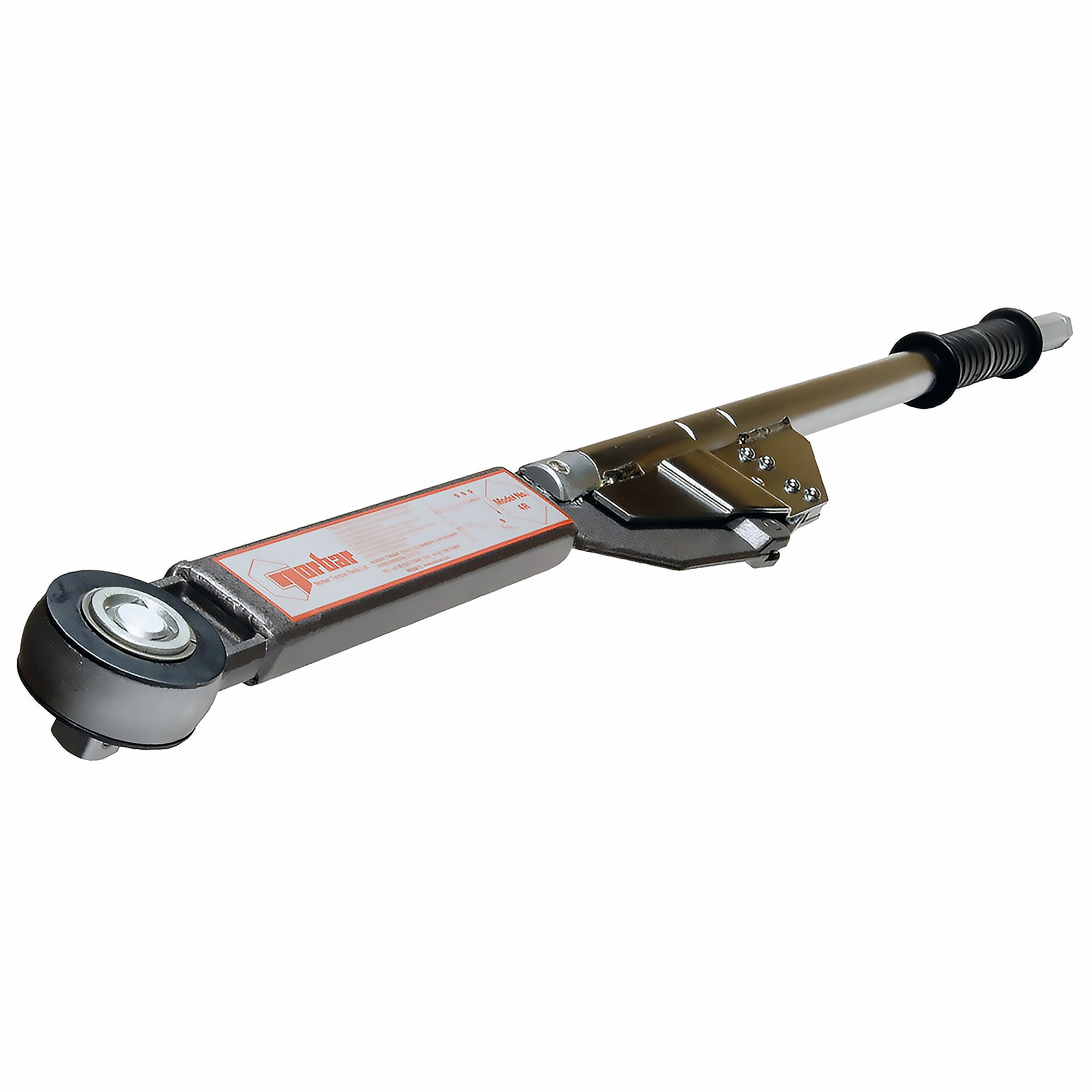

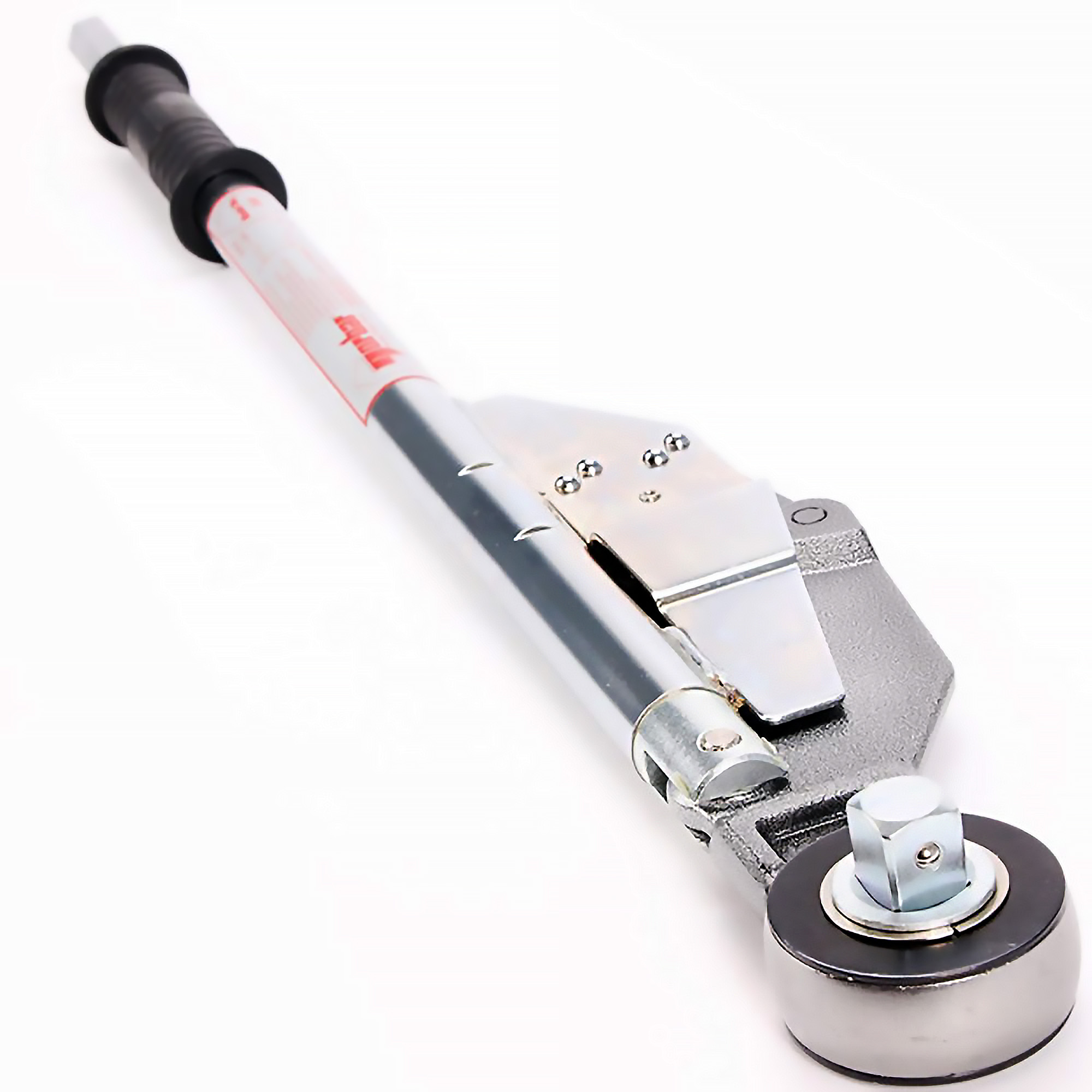

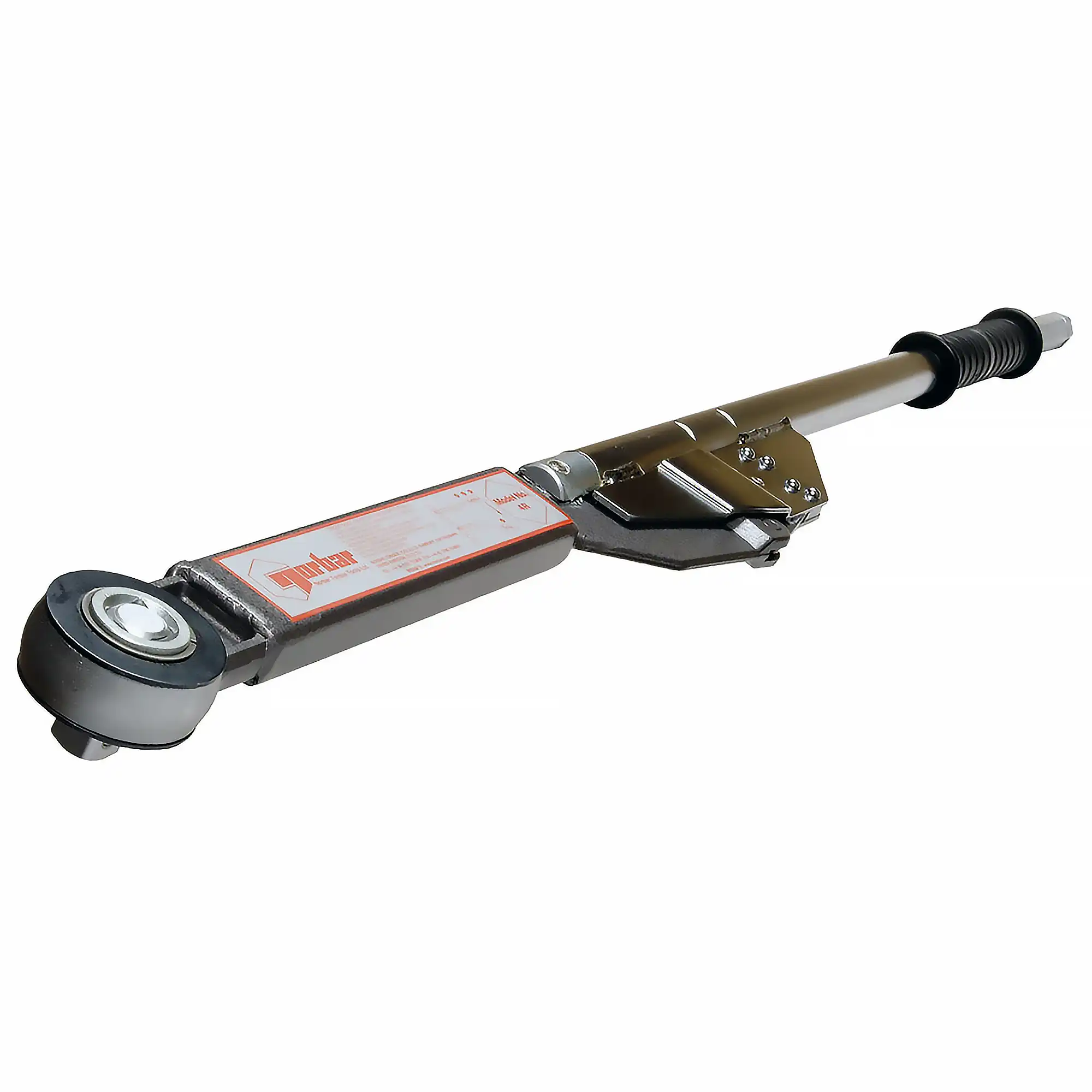

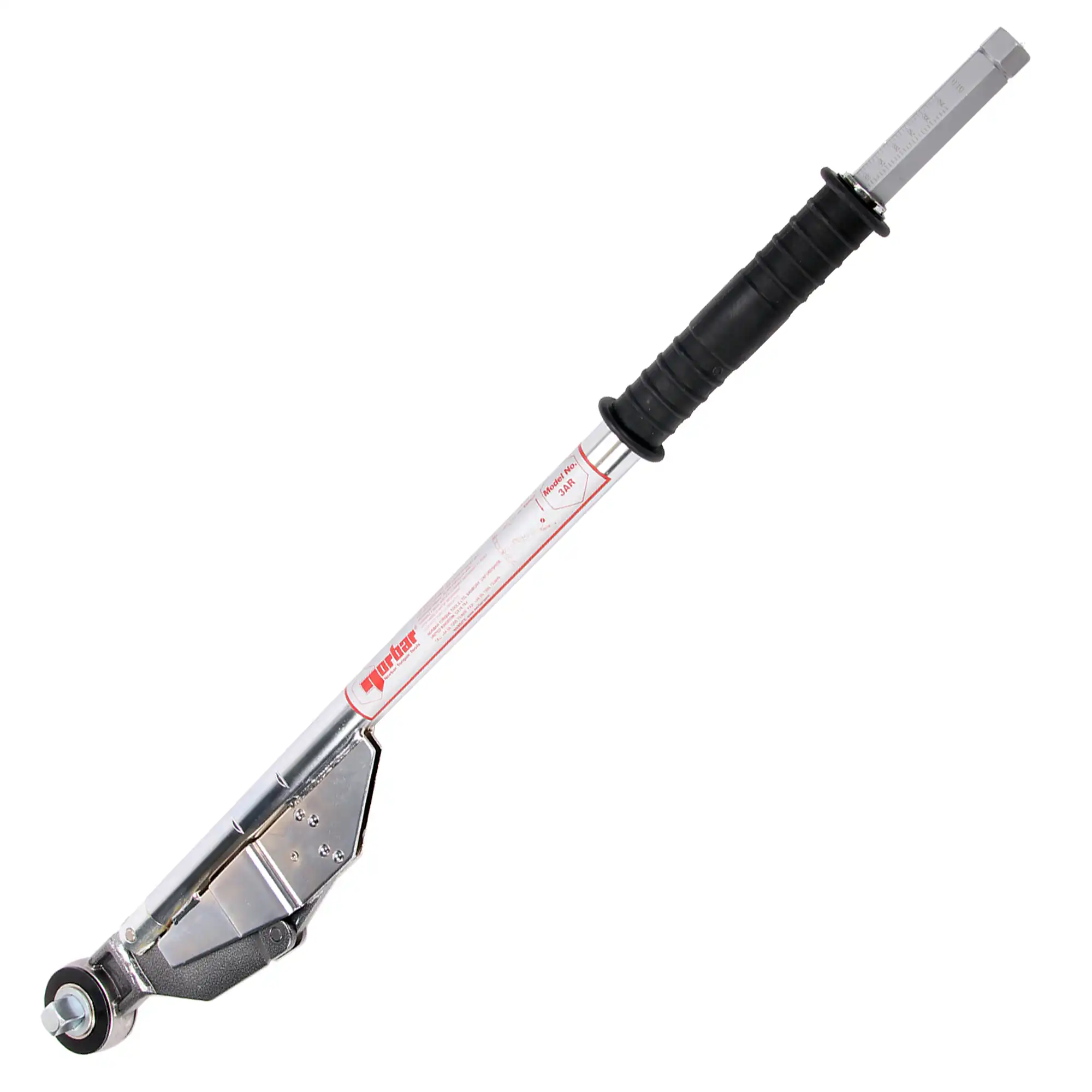

Norbar Industrial Range Torque Wrench
A break-back industrial torque wrench covering 100 to 2,000 Nm in 3/4″ and 1″ drive, with ±4% accuracy and a calibration certificate supplied.
Additional Information
More Information
The Norbar Industrial Range Torque Wrench is Norbar’s most robust torque tool, designed for arduous working conditions where a clear, unmistakable break-back signal is essential. A unique profiled cam and reaction plate deliver a much clearer torque break point than a standard click, reducing the possibility of over-torquing. Models cover 100 to 2,000 Nm across 3/4″ and 1″ square drives, with ±4% accuracy across the full range.
Key Features
- Break-back action provides an unmistakable signal, seen and felt, when set torque is reached.
- Unique profiled cam and reaction plate reduce the risk of over-torquing.
- Robust construction maintains ±4% accuracy even in demanding site conditions.
- Dual scale display in Nm and lbf-ft.
- Production ‘P’ type versions available with no setting scale, discouraging unauthorised alteration.

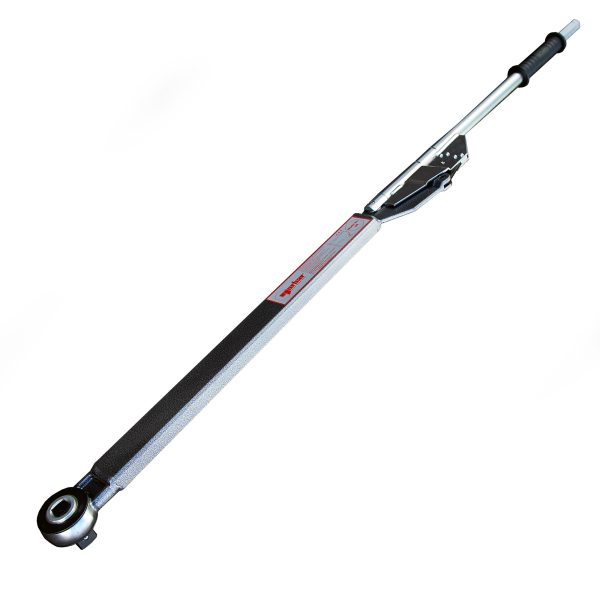

- Split models available for easier storage and transport, assembled in seconds.
- Calibration certificate supplied with every unit, meeting ISO 9000 requirements.

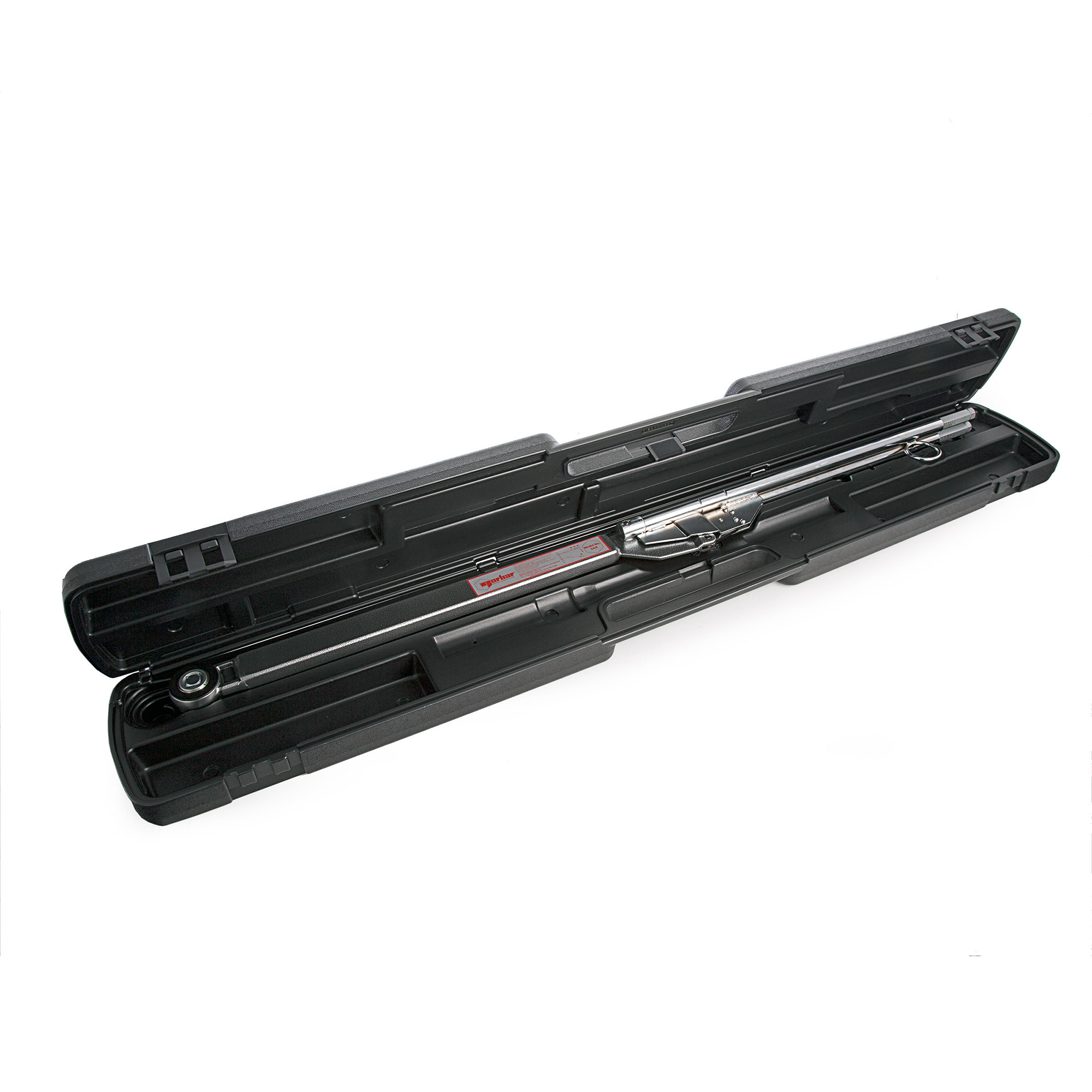

- Supplied in a high-quality blow-moulded plastic case with accessory space.
Typical Applications
- Heavy industrial maintenance in arduous working environments
- Applications requiring an unmistakable over-torque signal
- Production environments needing unauthorised-adjustment prevention (P type)
- High-torque bolting up to 2,000 Nm in 3/4″ or 1″ drive
Norbar Industrial Range Torque Wrench Specifications
| Spec | Detail |
|---|---|
| Torque Range | 100 – 2,000 Nm (100 – 1,500 ft-lb) |
| Drive Sizes | 3/4″, 1″ square |
| Accuracy | ±4% of reading |
| Mechanism | Break-back action |
| Display | Dual scale (Nm / lbf-ft) |
| Variants | Adjustable, Production ‘P’ type (no scale), Split model |
| Calibration | Certificate included, meets ISO 9000 |
| Case | High-quality blow-moulded plastic, with accessory space |
