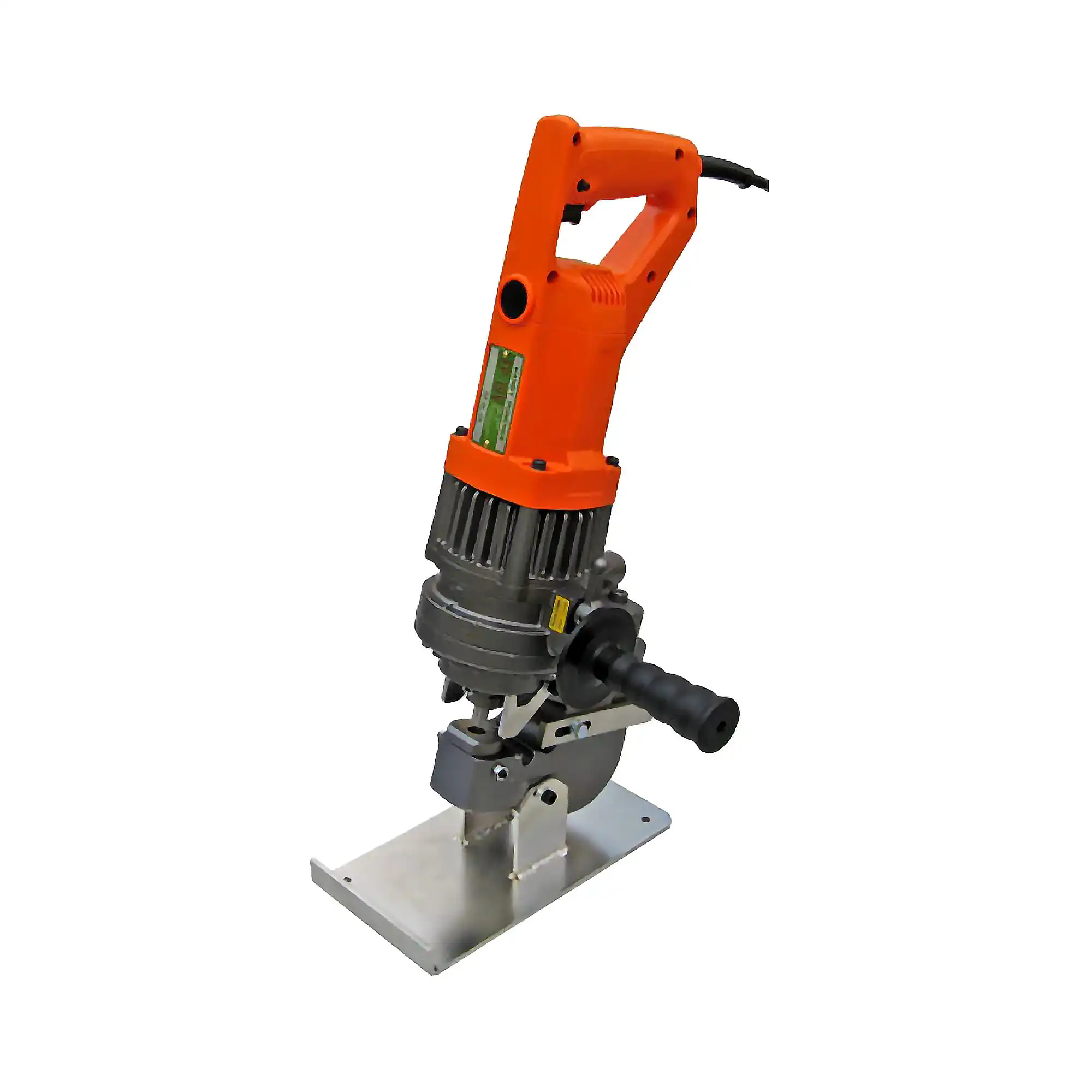

Diamond EP-19V Hole Punch – Up to 20mm

The Diamond EP-19V electric hole punch is simple and safe to use – just position the work and press the button.

  • No lubrication required
  • Adjustable guide makes positioning easy
  • Fast – punches through steel plate in approx 2 seconds
  • Portable – weighing 16.1kg, ideal for on-site work
  • Reliable – same unit as we hire out
  • 12-month warranty backed by HTC
  • Spares – common punches & spares carried by our in-house workshop
  • Comes with 11mm diameter punch & die set, side handle, tool kit, stand and steel carrying case
  • Will also punch slotted or clearance holes
Categories: , Brand:

Additional Information

More Information

  • Suitable for iron, steel, stainless & aluminium work pieces.
  • Max hole size Round 20mm, Elliptical 14 x 21mm
  • Max material thickness Steel or aluminium 6mm, Stainless steel 5mm
  • Max Throat depth 55mm
  • Power supply 230V
  • Dimensions 133 x 195 x 484mm
  • Weight 16.1kg
  • Manufactured in Japan
