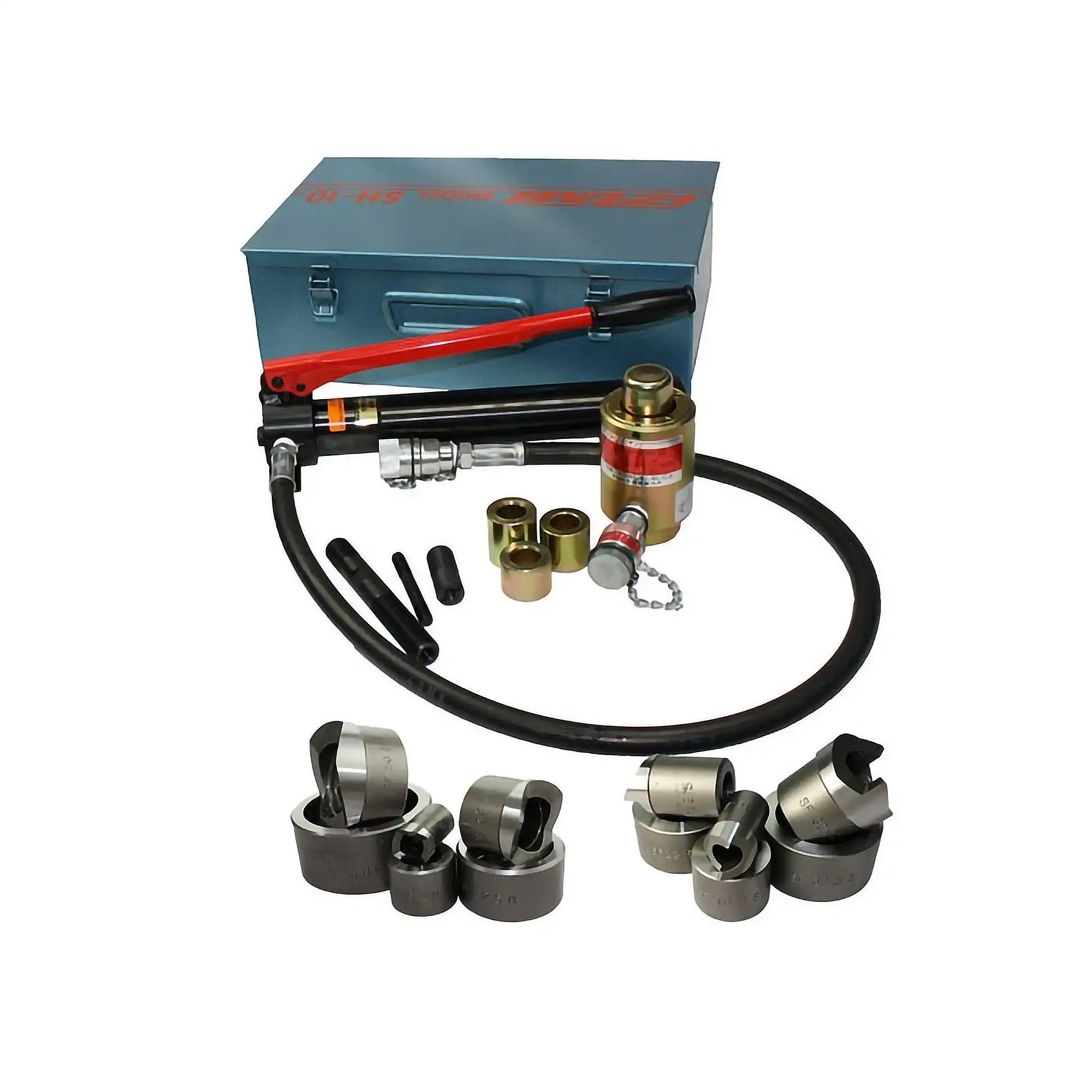

Izumi SH-10 Chassis Punch Sets

The Izumi SH-10 kits contain a punching cylinder with a separate hydraulic pump and a range of punches.

Capacity :

  • 63.5mm diameter hole in 1.6 mm thick stainless steel
  • 104mm diameter hole in 3.2 mm thick mild steel
  • 115.5mm maximum punch diameter

Large range of round punch & die sets stocked by HTC – square, rectangular, notched etc available on indent basis.

Categories: , Brand:

Additional Information

More Information

SH-10AP contains:

  • 19.8mm, 26.1mm, 32.5mm, 38.7mm, 51.6mm punches
  • 1 HP-180N hand pump
  • 1 Hydraulic punch cylinder
  • 2 Draw Studs (3/8” & 3/4”) Model No. 10-04 & 10-05
  • 3 Collars/Spacers (Large, Medium & Small)
  • 1 Steel Carrying Case

SH-10BP contains:

  • Same as above but with 21.8mm, 27.6mm, 34.1mm, 42.7mm, 48.7mm, 60.5mm punches
