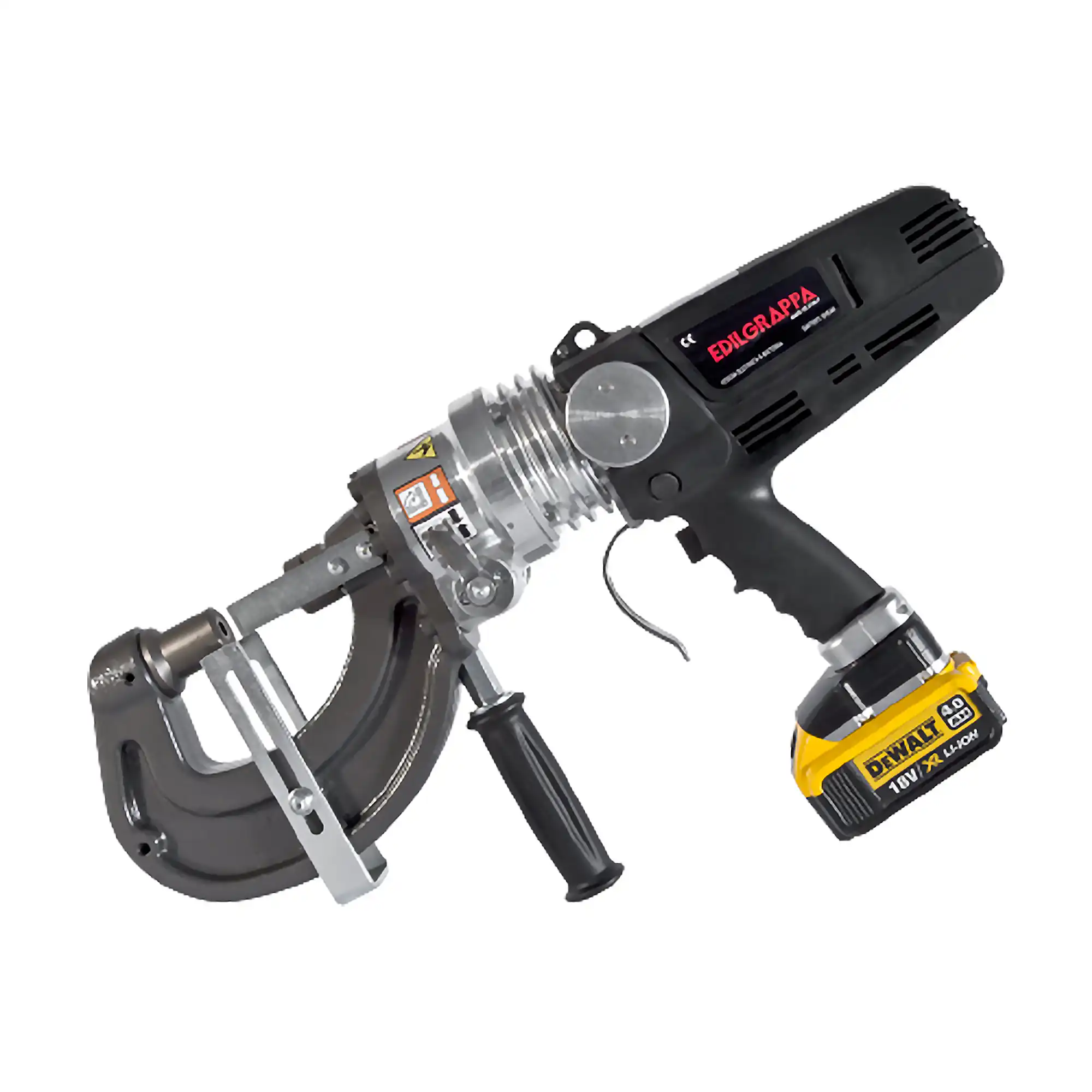

Edilgrappa PG22/60DE Cordless Hydraulic Hole PuncherPunch & Die Sets

The Edilgrappa PG22/60DE Cordless Hydraulic Hole Puncher is an electro-hydraulic tool produced by Edilgrappa, that is ideal for punching steel, copper, aluminium.

Its small size makes the PG22/60DE Cordless a very useful Hydraulic Hole Puncher when working in small and complicated spaces, where portable tools are needed.

PG22/60DE Cordless: the ideal product for building and industrial works.

Made by Edilgrappa in Italy.

Categories: , Brand:

Specifications:

  • Max punch – ø 22 mm
  • Punching force – 147 kN (15 t)
  • Working pressure – 70 Mpa (700 bar)
  • Power supply – Battery
  • Motor – 18V / 20V
  • Cylinder – Double acting
  • Weight – 11.9 kg
  • Dimensions LxWxH – 580 x 127 x 278 mm
