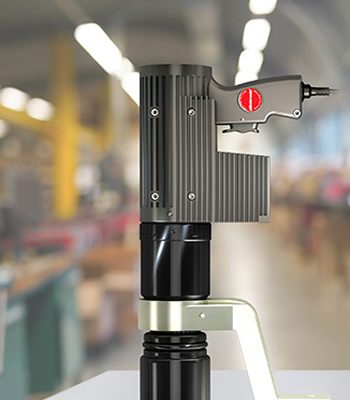

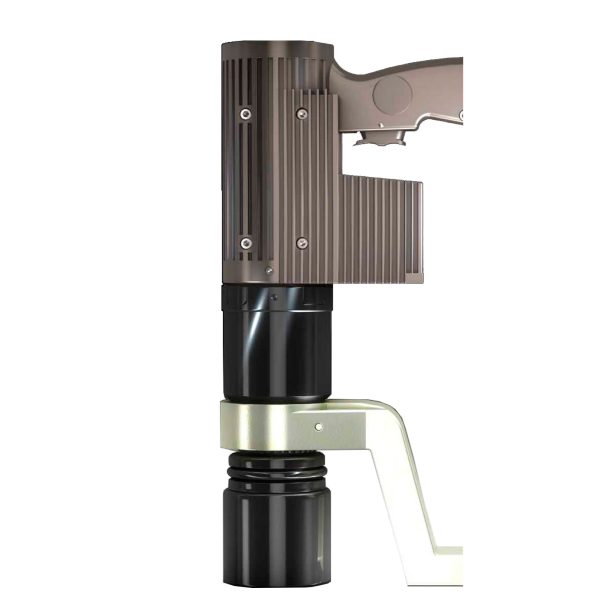

Alkitronic EFC-S Series – Up to 6500Nm
Electric torque multipliers from 75 to 6,500 Nm, running on any international power supply with IP54 protection and ±2% repeat shut-off accuracy.
More Information
The Alkitronic EFC-S Series covers electric torque multipliers from 75 to 6,500 Nm (55 to 4,800 ft-lbs), running on any international power supply from 100–253V and 45–66Hz. IP54 protection keeps it working safely in humidity and rain, and precise voltage-controlled shut-off suits on-site portable generators.
Key Features
- IP54 protection ensures safe, uninterrupted operation in humidity and rain.
- Maintenance-free, low-wear brushless synchronous motor keeps running costs low.
- Continuous rotation delivers permanently higher screwing quality than ratcheting tools.
- Simple one-finger operation for fast, comfortable working.
- Glare-free OLED display stays readable in all weather conditions.
- Menu-guided, multilingual interface with control and warning messages.
- 360° rotatable operating unit transmits no reaction forces to the operator.
Advanced Control Technology
- Torque/rotation angle method supports quality-controlled screwdriving.
- Sensorless control improves efficiency, lowers power consumption, and reduces heat generation.
- Repeat shut-off accuracy of ±2% reproduces the preselected torque precisely, application after application.
- Low heat generation extends service life and minimises downtime.
- Heavy-duty cast aluminium motor housing withstands demanding site conditions.
Alkitronic EFC-S Series Specifications
| Spec | Detail |
|---|---|
| Torque Range | 75 – 6,500 Nm (55 – 4,800 ft-lbs) |
| Power Supply | 100 – 253 V / 45 – 66 Hz (international) |
| Protection Rating | IP54 |
| Repeat Accuracy | ±2% |
| Motor | Brushless synchronous |
| Housing | Heavy-duty cast aluminium |
| Display | OLED, glare-free |
