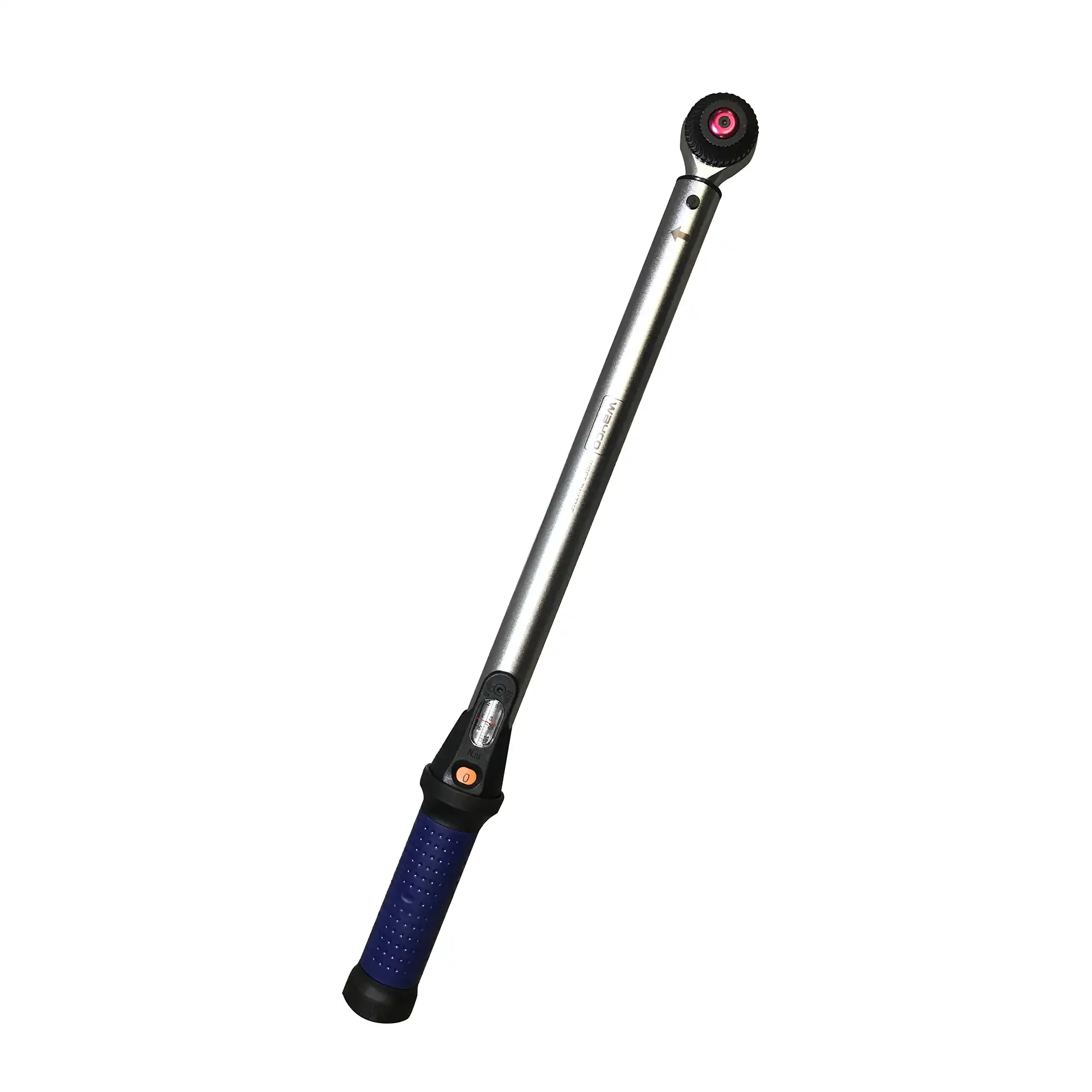

Wayco Reversible Torque Wrench 1/4″DR, 72 teeth 5-25Nm (53.1-212.4ft/lb), ±3%. Display Window. L 296mm
A reversible 1/4″ drive torque wrench covering 5 to 25 Nm with ±3% accuracy, a 72-tooth ratchet, dual-scale display, and calibration certificate.
More Information
The Wayco Reversible Torque Wrench 5-25Nm is a high-quality 1/4″ drive tool designed for precise torque application in both clockwise and counterclockwise directions. A robust 72-tooth ratchet with 5° gear action delivers smooth, precise operation, while the reversible design supports both right and left-hand tightening. Every wrench is tested before dispatch to confirm it meets its rated accuracy.
Key Features
- Reversible design supports both right and left-hand tightening.
- Robust 72-tooth ratchet with 5° gear action for smooth, precise operation.
- Dual-scale display shows torque values in both Newton-metres and foot-pounds.
- Additional micrometer scale allows precise setting of interim torque values.
- Ergonomically shaped handle grip for comfort during extended use.
- Locking button secures the torque setting, preventing unintentional adjustment.
- Factory calibration certificate and protective blow-mould storage case included.
- Meets DIN ISO 6789 and ASME B107.300-2010 quality standards.
Typical Applications
- Precision fastening on small fasteners
- Applications requiring bi-directional (left and right-hand) tightening
- Automotive, electronics, and light industrial assembly
- Tasks requiring interim torque settings
- Tasks requiring documented, traceable calibration
Wayco Reversible Torque Wrench 5-25Nm Specifications
| Spec | Detail |
|---|---|
| Drive Size | 1/4″ |
| Teeth | 72 |
| Range | 5 – 25 Nm (53.1 – 212.4 ft-lb) |
| Accuracy | ±3% |
| Length | 296 mm |
| Display | Dual scale (Nm / ft-lb) with micrometer interim setting |
| Standards | DIN ISO 6789, ASME B107.300-2010 |
| Calibration | Factory calibration certificate included |
| Case | Protective blow-mould storage case included |
