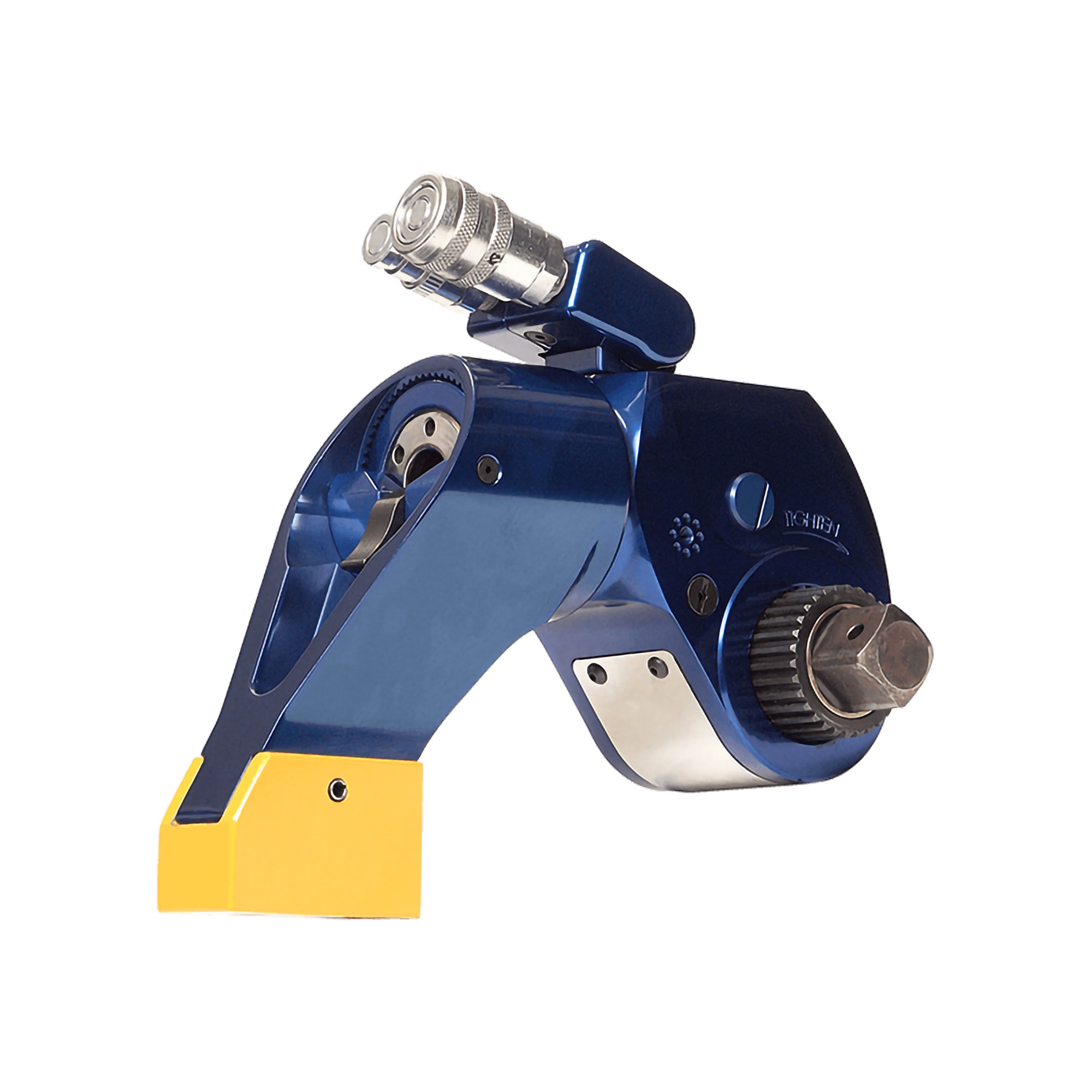

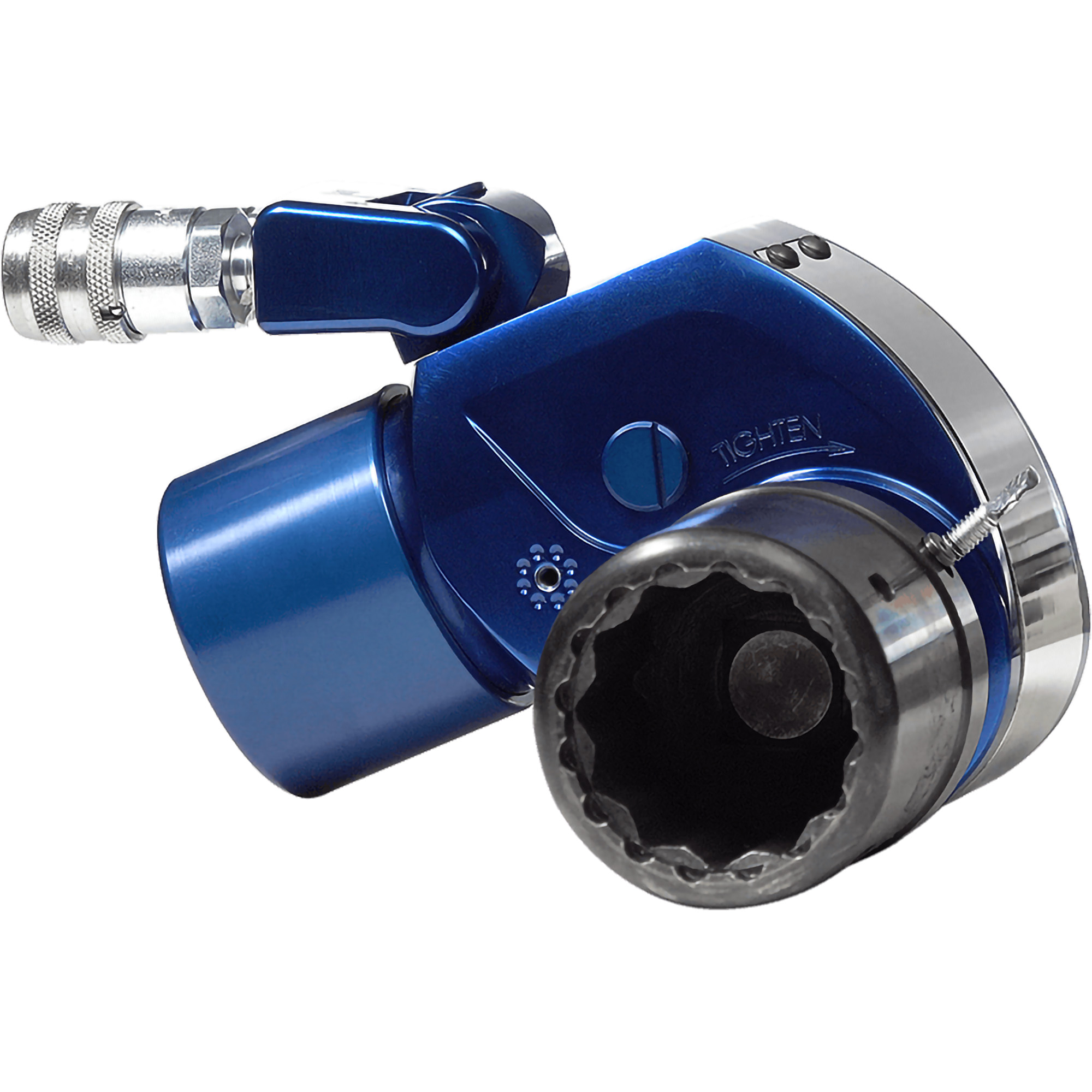

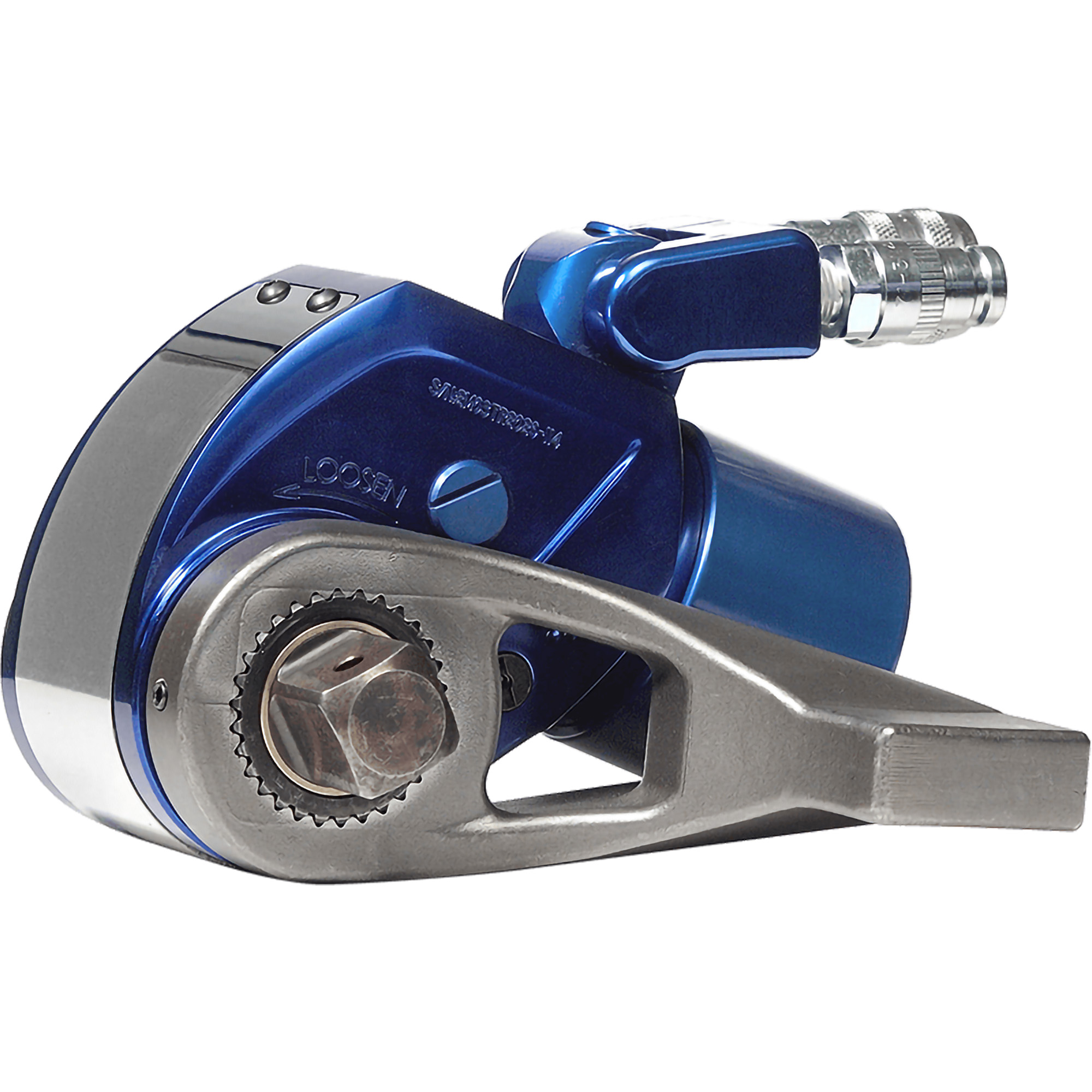

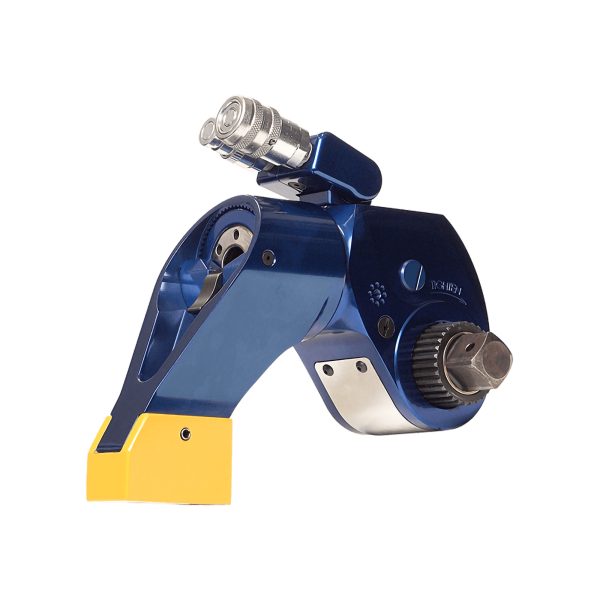

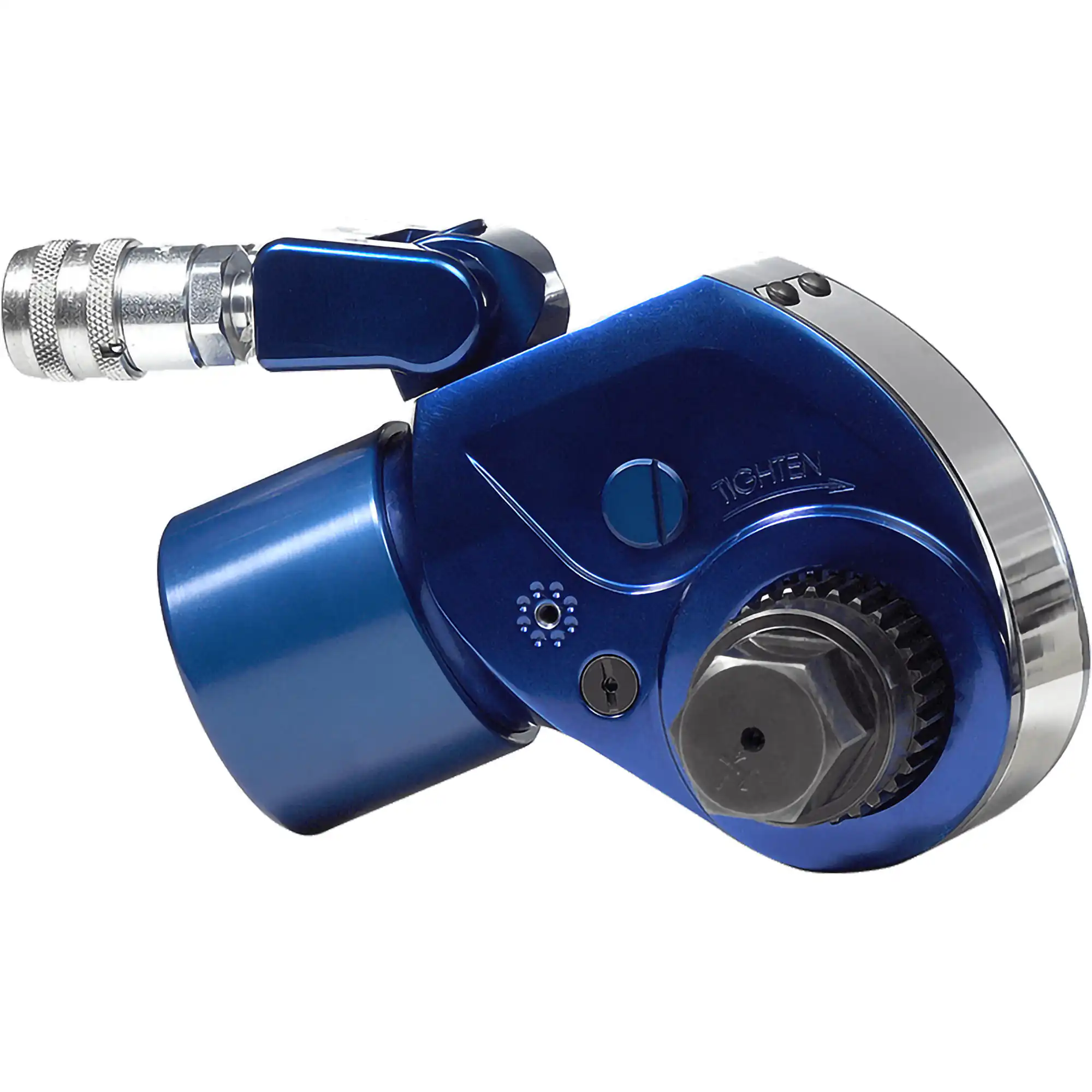

Hytorc – MXT+
An evolution of the original MXT, delivering 278 to 16,468 Nm with a coaxial reaction drive, auto-release, and an embedded cycle counter.
More Information
The Hytorc MXT+ combines HYTORC’s original MXT design with the latest reaction drive technology, including a coaxial reaction drive, auto-release, and a new cycle counter. Built from higher strength materials for rugged industrial use, it delivers highly repeatable performance. Torque output spans 278 to 16,468 Nm (205 to 12,148 ft-lbs).
Key Features
- Coaxial reaction drive reduces internal torsion for smoother, more reliable operation.
- Auto-release — advance the pump and the tool frees itself, with no lever to flip.
- Embedded cycle counter monitors tool use, supporting scheduled preventative maintenance and calibration.
- New quick-couplers provide faster job setup, with a locking mechanism to prevent accidental disconnection.
- Higher strength materials support rugged industrial use and highly repeatable performance.
Typical Applications
- Structural steel and flange bolting
- Oil and gas, petrochemical, and industrial maintenance
- Applications requiring fast job setup and secure hose connections
- Preventative maintenance programmes needing tracked tool usage
Hytorc MXT+ Specifications
| Spec | Detail |
|---|---|
| Torque Range | 278 – 16,468 Nm (205 – 12,148 ft-lbs) |
| Reaction Drive | Coaxial |
| Release | Auto-release (advance pump to free tool) |
| Cycle Tracking | Embedded cycle counter |
| Coupling | Quick-couplers with locking mechanism |
| Weight | Varies by model — confirm exact model with manufacturer |
