Type D Hydraulic torque wrench
A cassette-type hydraulic torque wrench with up to 8 cassettes per cylinder, a tool-free quick-change mechanism, and a compact, low-profile design.
More Information

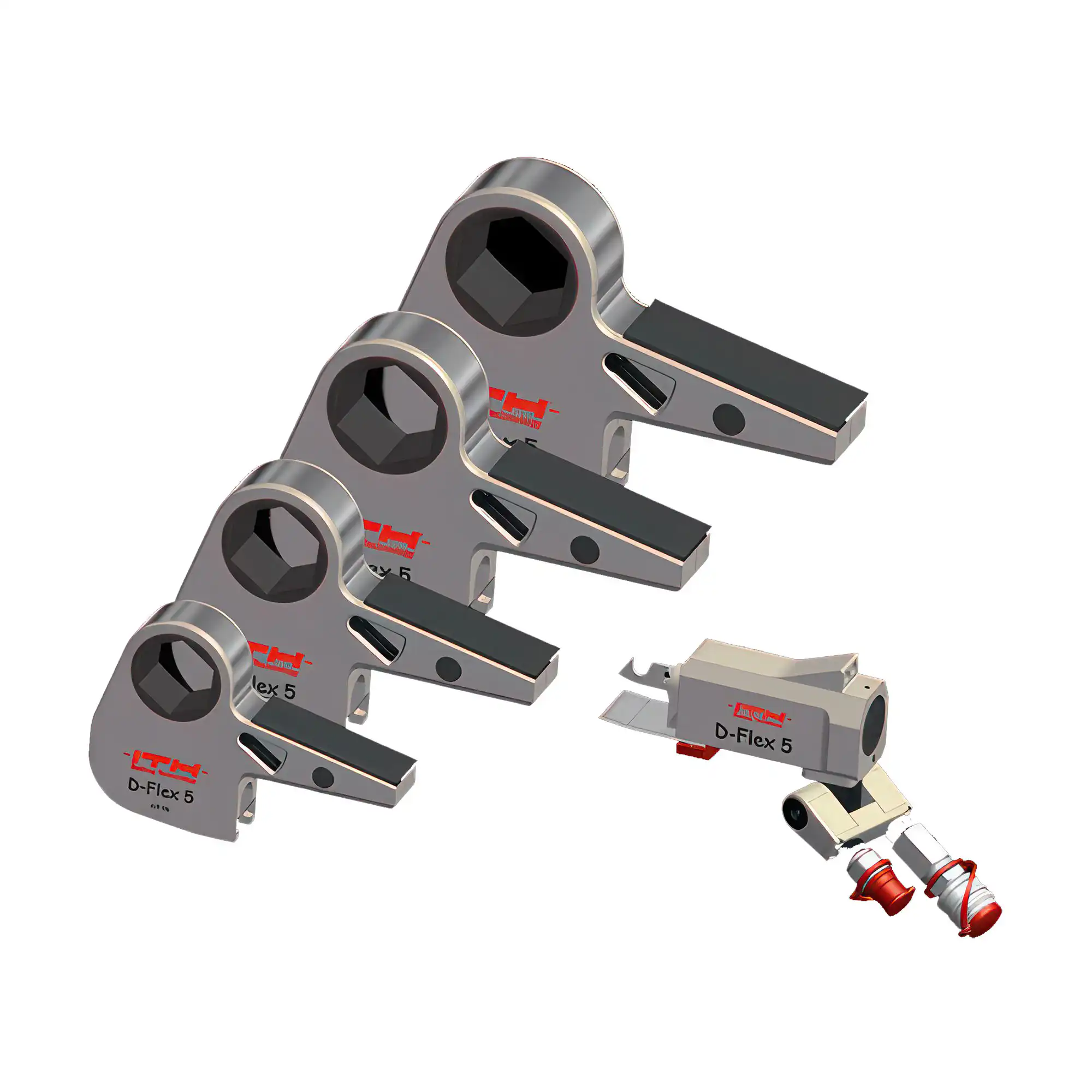

The ITH D-Flex is a cassette-type hydraulic torque wrench built for versatility, with each cylinder unit accepting up to 8 cassettes across different across-flats (A/F) sizes. Reduced head radiuses and an extra low-profile design keep the tool compact and lightweight for easy handling on site. It’s designed to match pipe flange standards including ASME B16.5 (class 300 to 2,500) and MSS SP-44 (class 150 to 900).
Key Features
- Flexible cassette-type design — each cylinder accepts up to 8 cassettes across different across-flats (A/F) sizes.
- Quick-change “QUICK-AND-GO” mechanism swaps between cylinder and cassette by hand, with no additional tools required.
- Compact and lightweight — reduced head radiuses and an extra low-profile design support easy handling on any site.
- Matches ASME B16.5 (class 300–2,500) and MSS SP-44 (class 150–900) pipe flange standards.
- Multiple support options available to suit different job requirements.
- Optional TORQUE FIX accessory supports overhead applications.
- Power wrench sockets included for enhanced efficiency.
- Dual-hose TWIN swivel connector for reliable, flexible hose operation.
Typical Applications
- Pipe flange bolting to ASME and MSS standards
- Applications requiring a wide range of across-flats (A/F) sizes from one tool
- Overhead bolting work
- Restricted-access sites where a low-profile design is needed
ITH D-Flex Specifications
| Spec | Detail |
|---|---|
| Cassette Capacity | Up to 8 cassettes per cylinder unit |
| Change Mechanism | Quick-change (“QUICK-AND-GO”), no tools required |
| Flange Standards | ASME B16.5 (class 300–2,500), MSS SP-44 (class 150–900) |
| Hose Connection | Dual-hose TWIN swivel connector |
| Design | Reduced head radius, low-profile |
| Torque Range | Not published — confirm with manufacturer |
