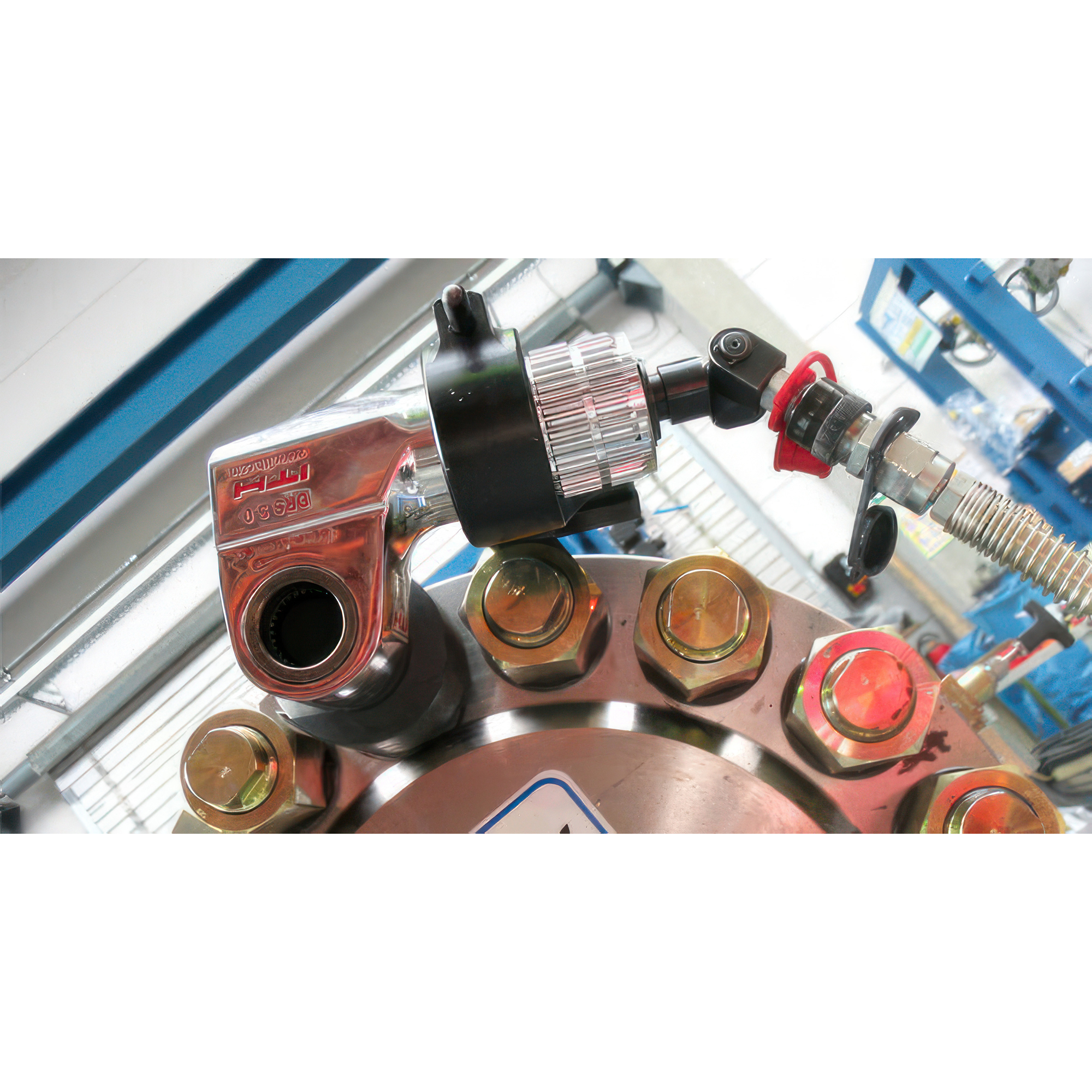

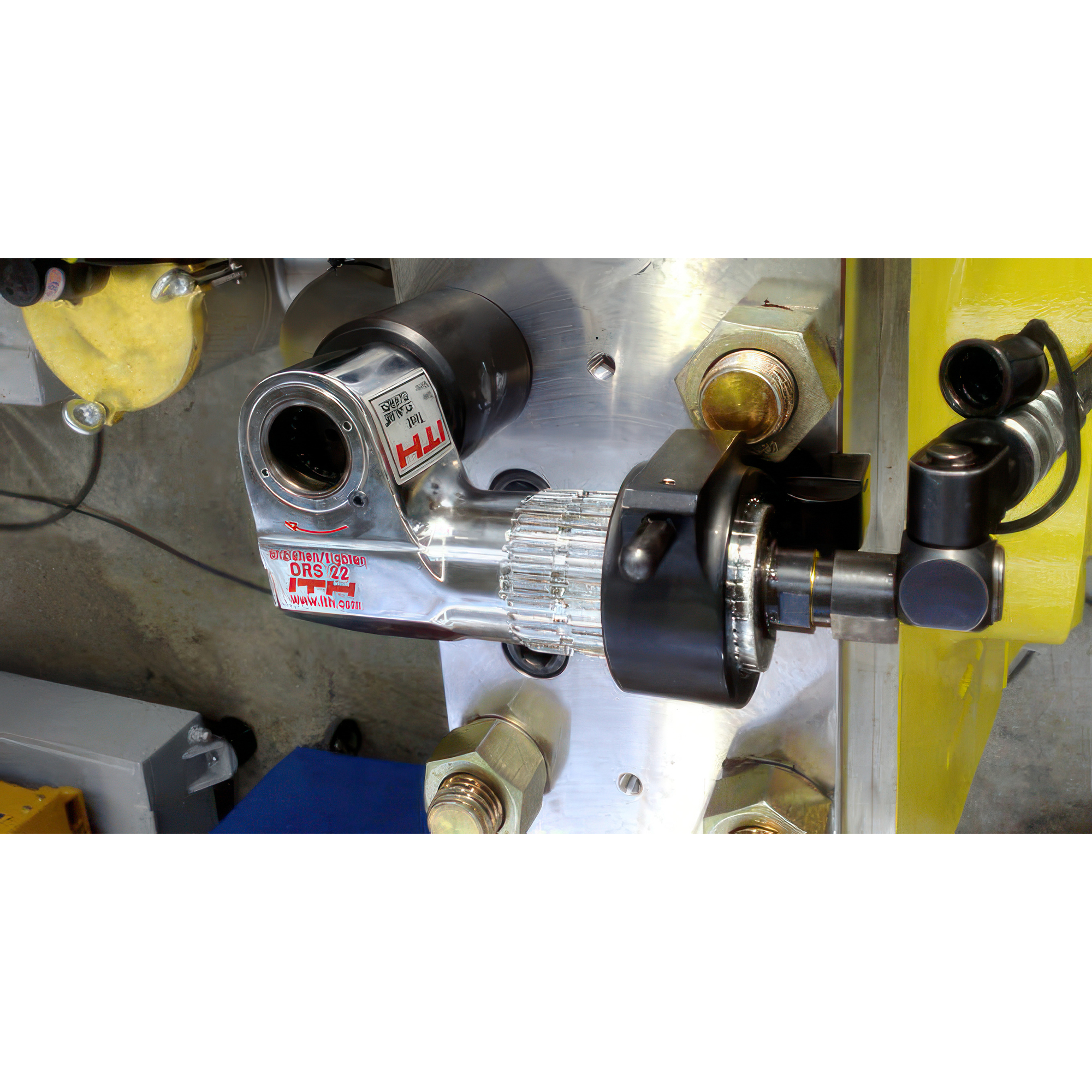

Hydraulic Torque Wrench type DRS
A universal nut tool hydraulic torque wrench with power classes up to 80,000 Nm, a large reaction arm, and a compact housing design.
More Information
The ITH DRS is a universal nut tool hydraulic torque wrench built for versatility and reliability, with power classes reaching up to 80,000 Nm. A large reaction arm delivers stability and control during operation, and a compact housing with a small head radius suits limited radial spaces. A single-hose system keeps setup simple.
Key Features
- Universal nut tool provides adaptability across a wide range of torque applications.
- Various inserts and sockets add flexibility for diverse industrial applications.
- Large asymmetrical reaction arm can be positioned in both directions, delivering stability and control.
- Power classes up to 80,000 Nm suit demanding, high-torque applications.
- Compact housing with a small head radius and 3-level splined connection suits limited radial spaces.
- Hydraulic coupler positioned at the end of the tool for use in constrained radial spaces.
- Single-hose system simplifies setup and operation.
Typical Applications
- Applications requiring a wide range of insert and socket configurations
- High-torque bolting up to 80,000 Nm
- Limited radial clearance sites

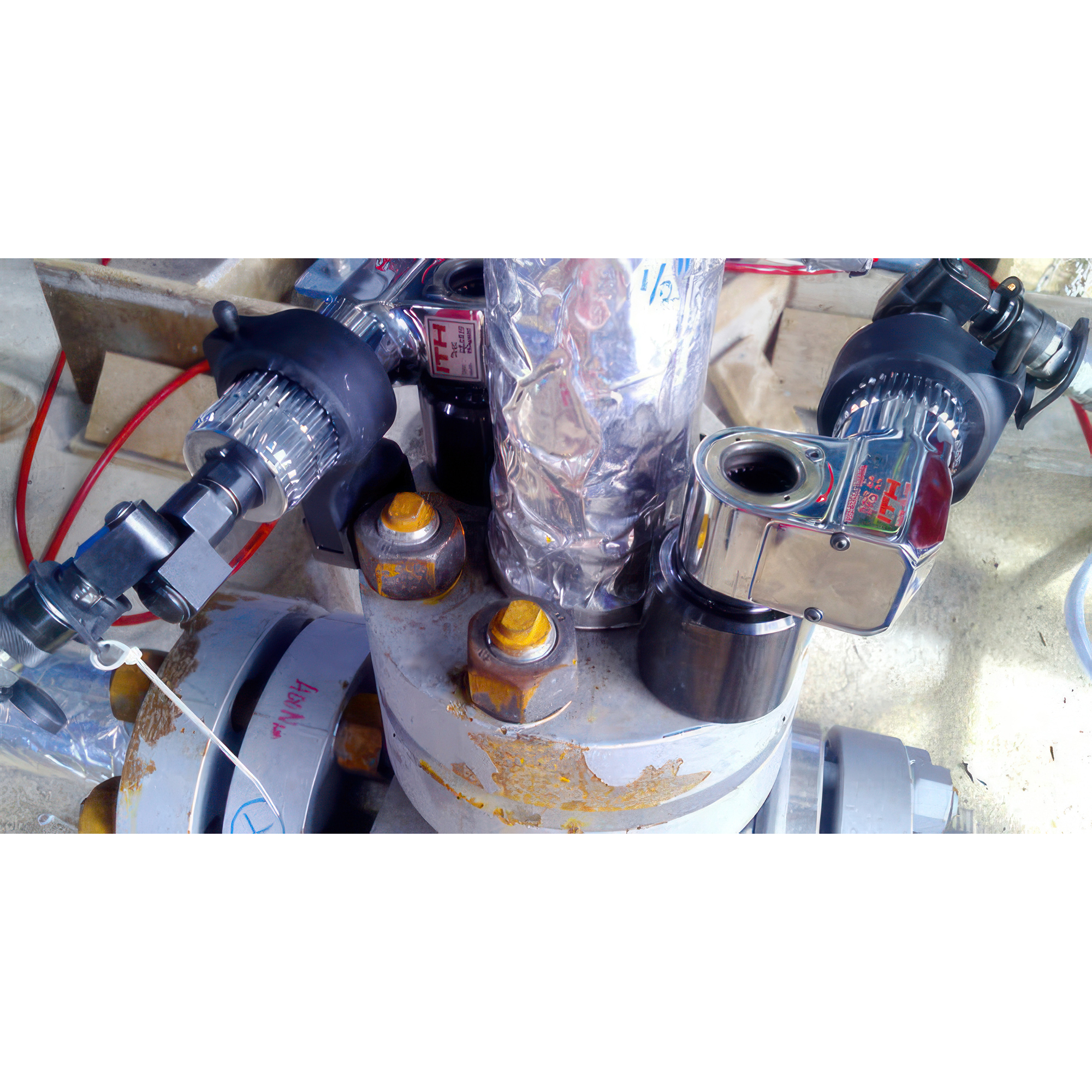

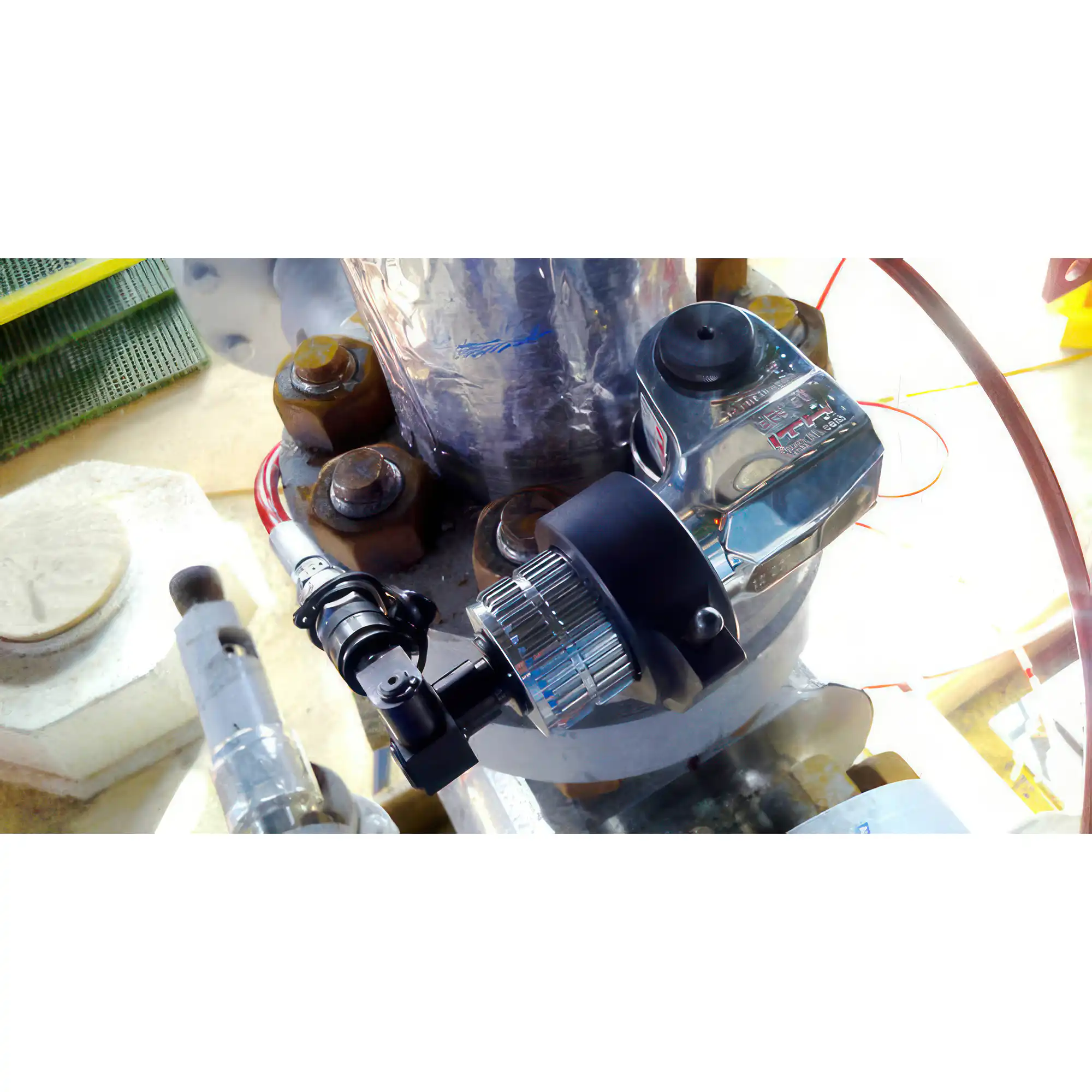

- Structural steel, flange, and heavy industrial bolting
ITH DRS Specifications
| Spec | Detail |
|---|---|
| Torque Capacity | Up to 80,000 Nm |
| Reaction Arm | Large, asymmetrical, positionable in both directions |
| Housing | Compact, small head radius, 3-level splined connection |
| Hose System | Single-hose |
| Coupler Position | End-mounted, for constrained radial spaces |
| Weight / Dimensions | Not published — confirm with manufacturer |
