EP-510HC Remote 12 Tonne Hydraulic Crimp Head

Izumi EP-510HC 12 Tonne Remote Head Crimper

Izumi 12 tonne compression tools use standard 12 tonne dies for applying compression fittings to copper, aluminium, ACSR and various other cables and conductors.

The EP-510HC is a remote C-head that requires an external 10,000psi pump for operation. This unit has a larger jaw opening than the EP-431C. The 42mm opening allows the user to compress larger splices up to 300mm2 aluminium or 400mm2 copper.

Dies are sold separately.

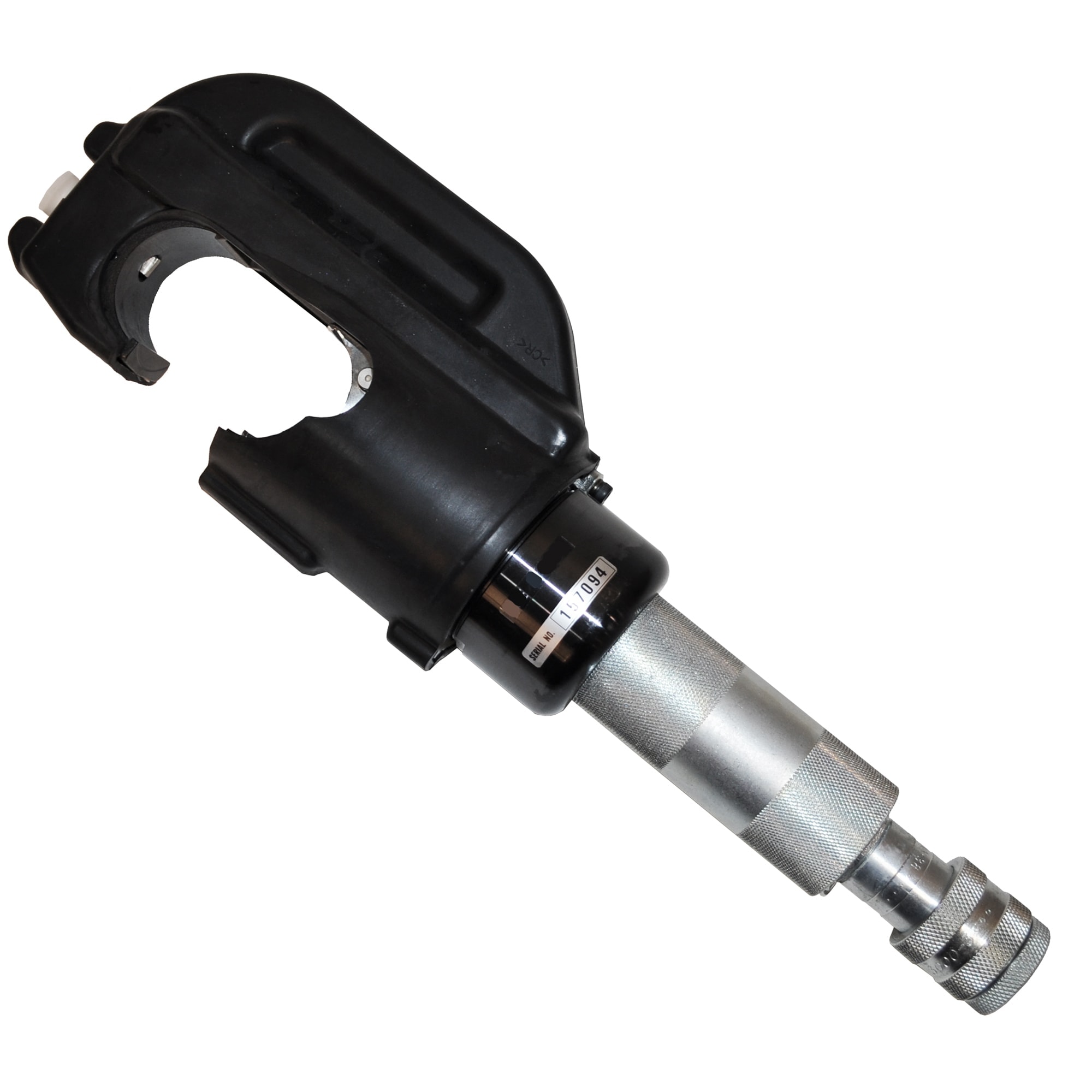

Crimp Head

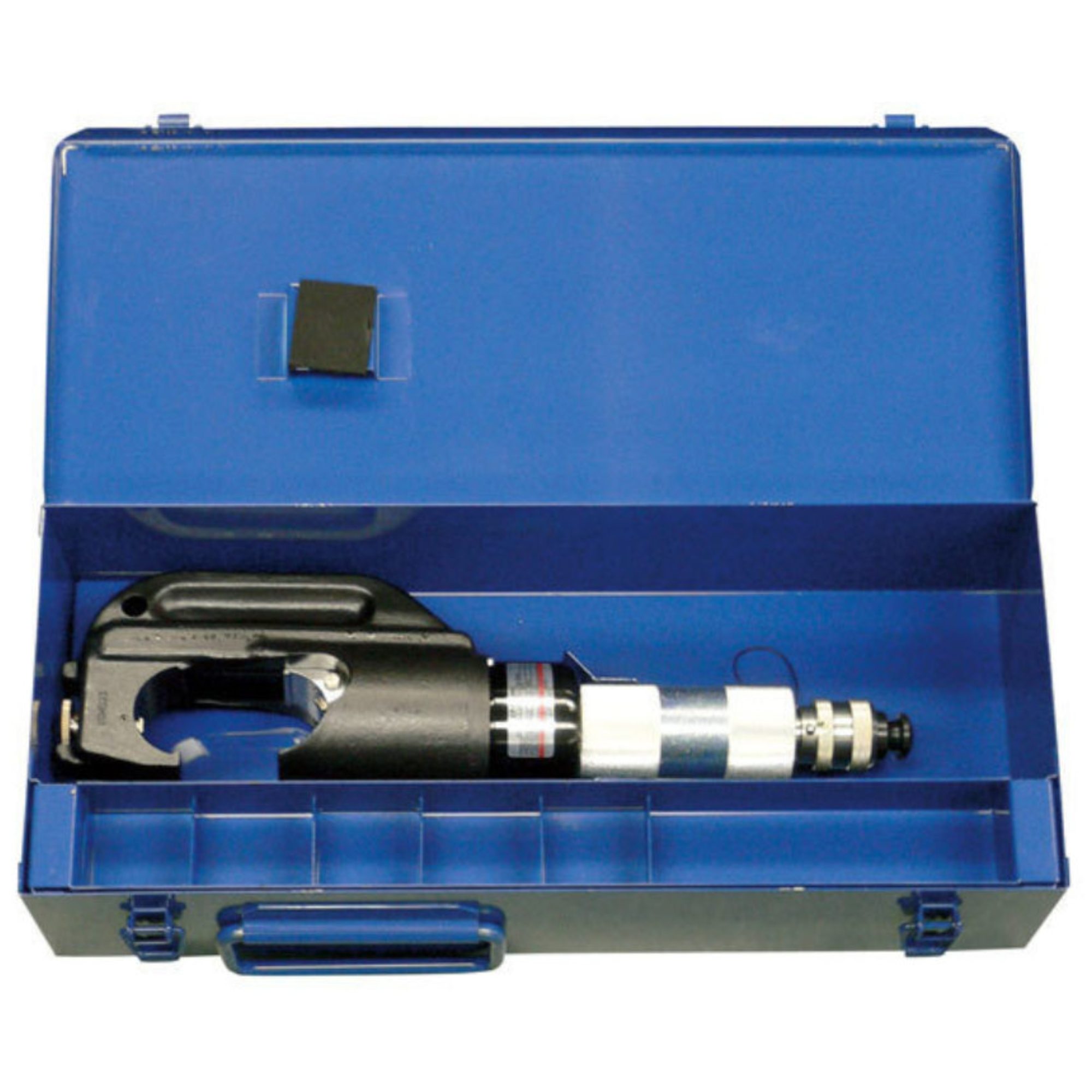

Steel carrying case with die tray

Category: Brand:

More Information

Jaw opening 42mm
Capacity 300mm2 Al/400mm2 Cu
Oil volume required 77cc
Force at die face 118kN
Weight 5.7kg
Made in Japan
