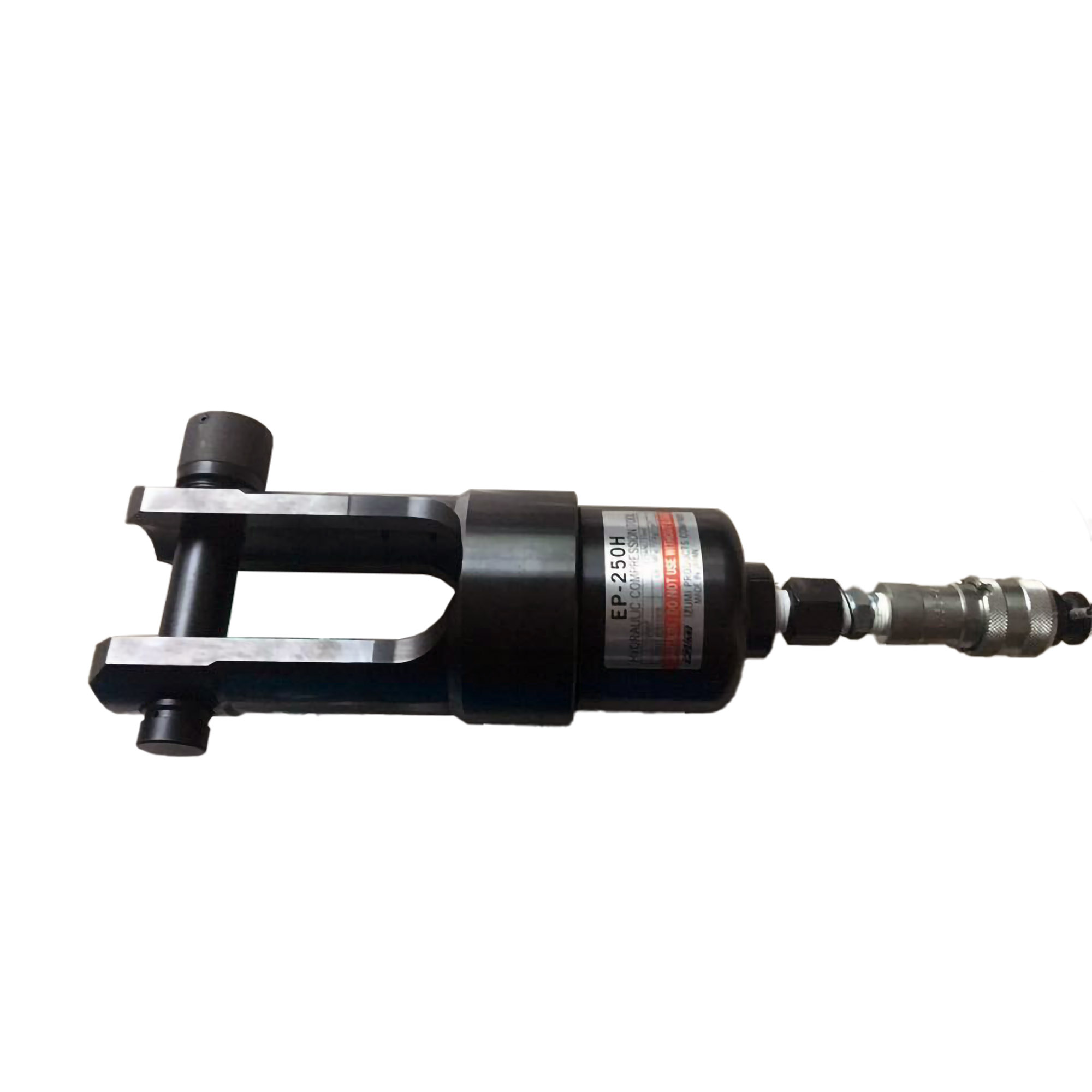

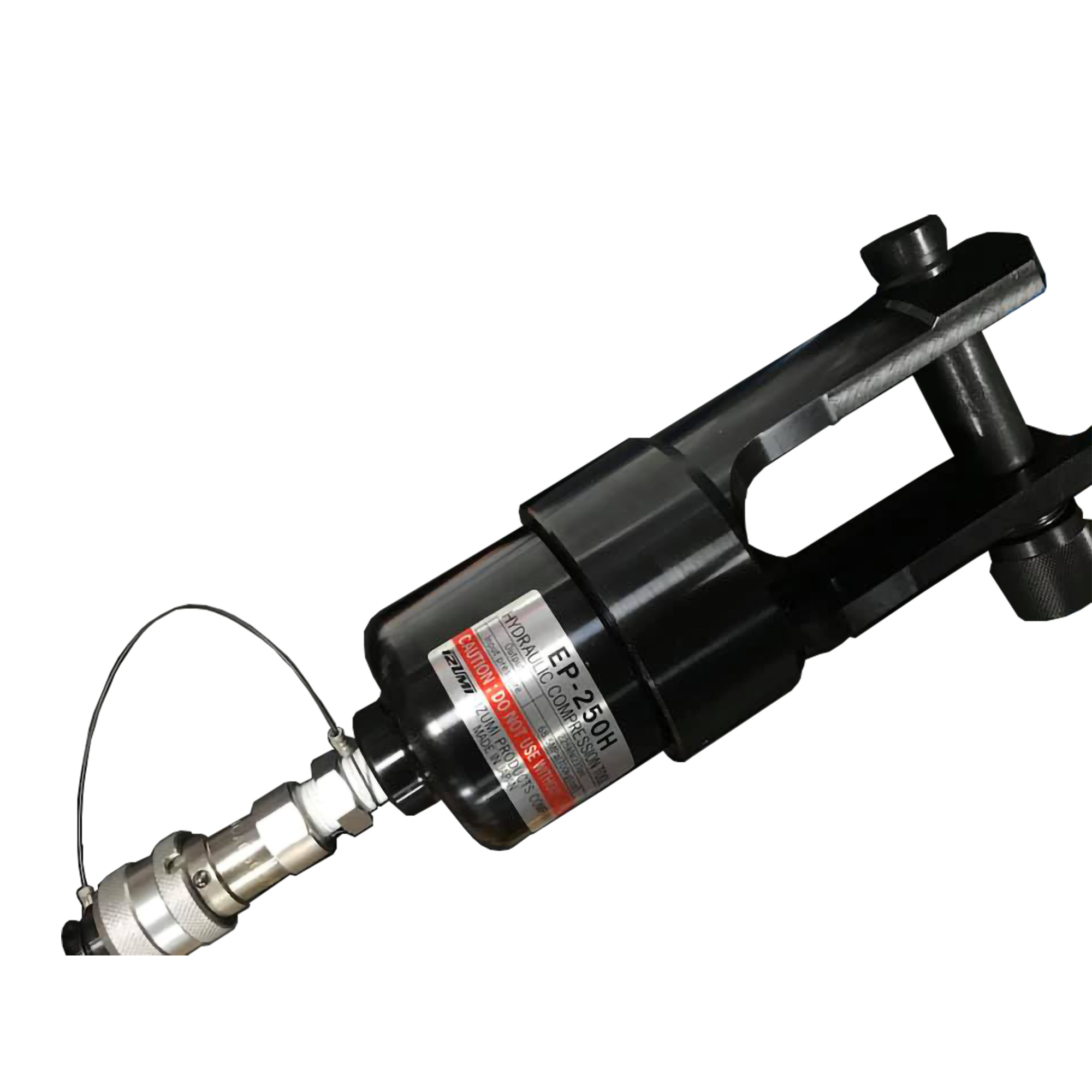

Izumi EP-250H Remote 25 Tonne Hydraulic Crimp Head

Izumi EP-250H 25 Tonne Remote Head Crimper

Izumi compression tools are used for applying compression fittings to copper, aluminium, ACSR and various other cables and conductors.

The EP-510HC is a remote C-head that requires an external 10,000psi pump for operation. The removeable die pin and 25 ton capacity allows the user to compress larger splices up to 500mm2 aluminium or 630mm2 copper.

Unique twist lock die retaining pin hold top die in place and cannot be misplaced or incorrectly fitted.

Die adapators are available for using standard 12 tonne dies with this head.

Dies are sold separately.

Additional Information

More Information

Crimp Head
Steel carrying case with die tray

Jaw opening 42mm
Capacity 300mm2 Al/400mm2 Cu
Oil volume required 93cc
Force at die face 225kN
Weight 6.8kg
Made in Japan
