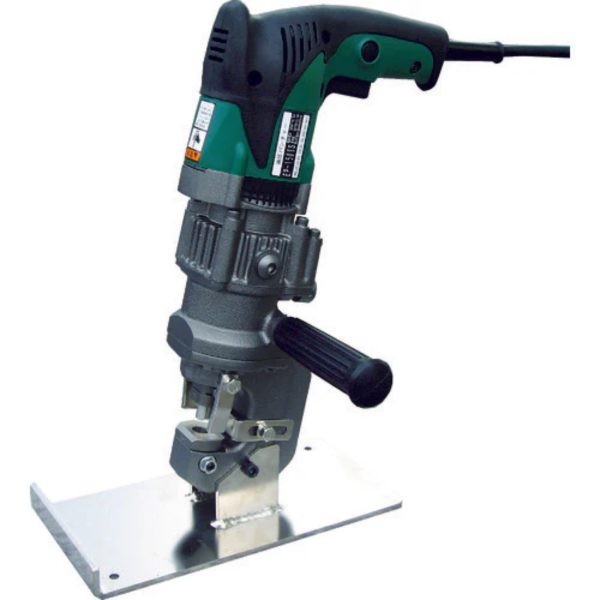

Diamond EP-1506S Electric Hydraulic Punch

  • The motor unit can rotate 360 degrees, allowing use in any direction.
  • It enables drilling holes just 33.5mm from the wall (with the motor unit rotated 90 degrees).
  • Despite its compact and lightweight design, it can handle plate thicknesses up to 6mm for general steel and 5mm for stainless steel.
  • When detached from the stand, the handheld unit weighs just 5.6kg.
Categories: , Brand:

Specifications:

  • Maximum round hole diameter: φ15mm
  • Maximum elongated hole size: 11×16.5mm
  • Maximum plate thickness: Equivalent to SS400 – 6mm; Equivalent to SUS304 – 5mm
  • Body dimensions: (L) 355 × (W) 180 × (H) 80mm
  • Weight: 7.0kg (including 2-core, 2.5m cord)
  • Optional Foot Switch Available

Mechanism:

  • Double insulation
  • Position stopper

Standard Accessories:

  • Tool Set
  • Hydraulic Oil
  • Side Handle
  • Dedicated Resin Case
  • Standard Punch and Die: Ø11 Round Hole Set
