Battery Punch – LS100XB

LS100XB Battery-Hydraulic Knockout Kit is complete knockout system optimized for mild steel with conduit sizes from 1/2″ to 4″.

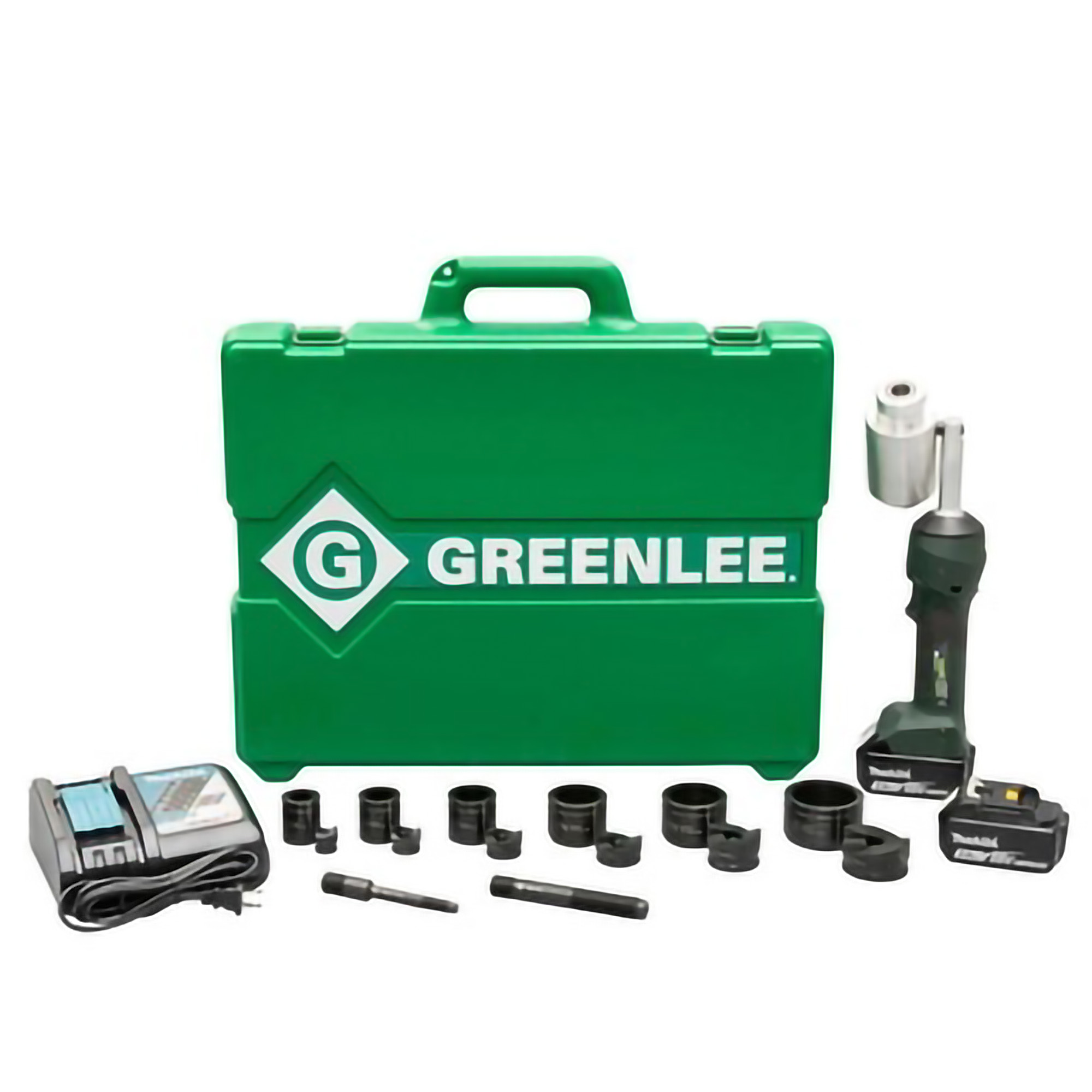

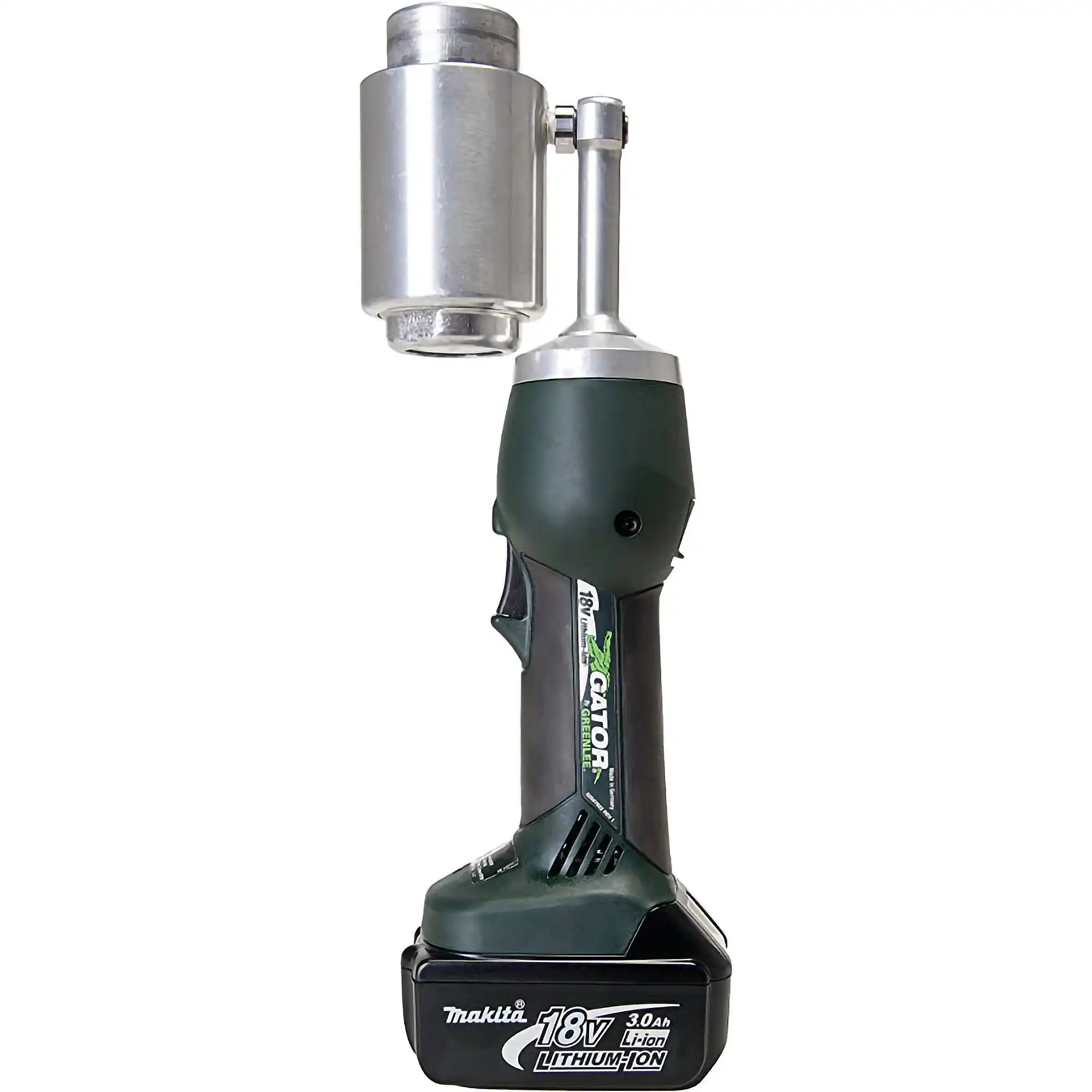

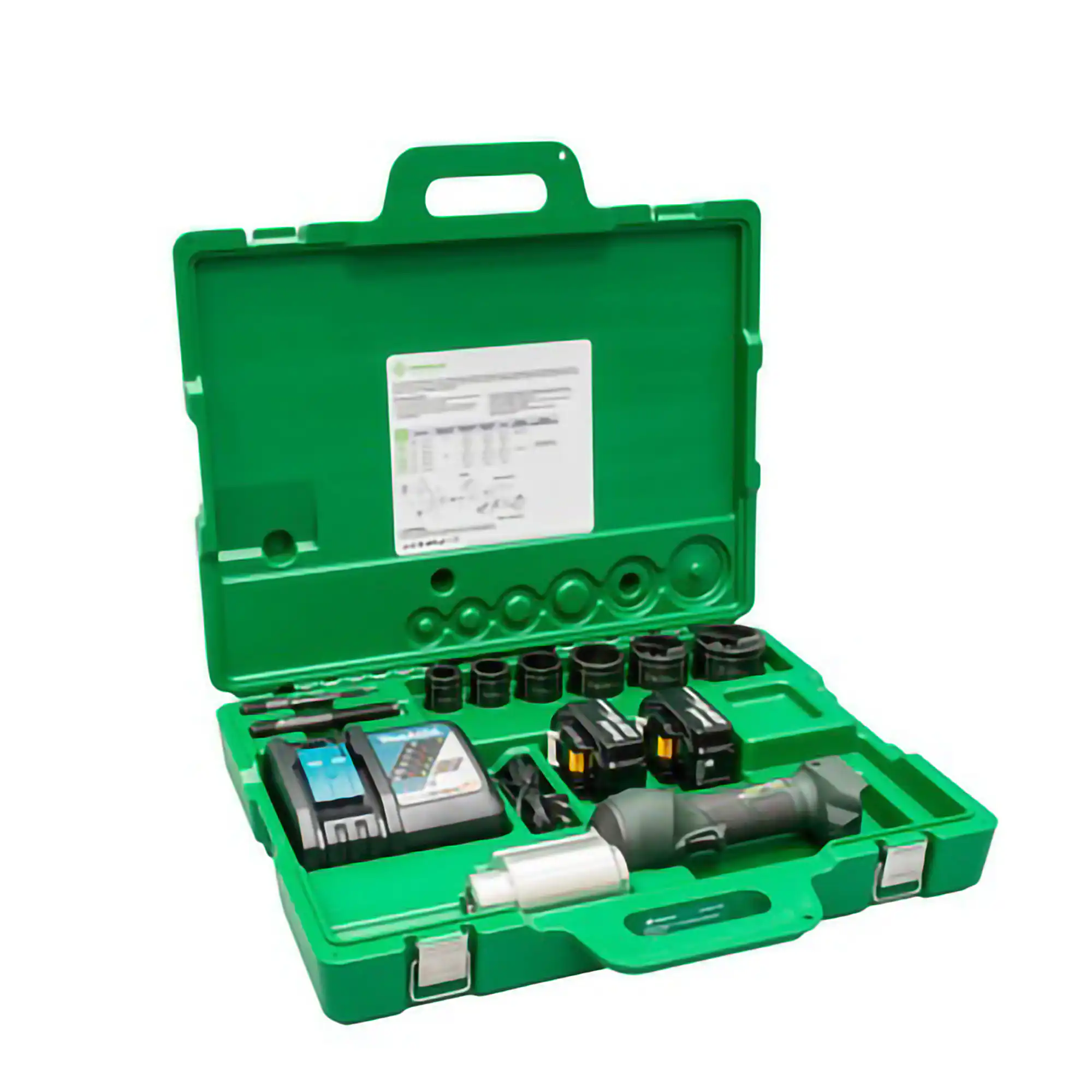

This kit includes the Intelli-Punch driver with a powerful 11-ton punching force, Slug Buster® knockout punches and dies, accessories, and a carrying case.

Made by Greenlee in the USA.

Categories: , Brand:

Additional Information

More Information

LS100XB Battery-Hydraulic Knockout Kit with Slug-Buster ½” – 2”

  • Features:
    • Time Saver – maximum cycle time of 8 seconds.
    • Patent-Pending Auto-Retract Technology – Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, for longer tool life.
    • 360° Rotating Head – Rugged, patent-pending swivel design to punch at any angle.
    • Compact, Ergonomic Design – Ergonomic tapered grip for easy one-handed operation.
    • Slug-Buster® knockout set punch profile splits slugs for easy slug removal.
    • Knurled edge on punches for better grip.
    • New die design optimized for widest range of materials and drivers.
    • Laser markings for quick part identification. Alignment markings for improved accuracy.
    • Easy threading – draw studs with “”dog point”” tip helps eliminate cross-threading. Hex key access for easy removal from tool.
    • Gator Eye® Compatible – with i-Press™ software, monitor tool performance including peak forces and number of cycles.
    • Works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH™, LS50L2 and 746A ram.
