Diamond EP-2110V Hole Punch – Up to 22mm

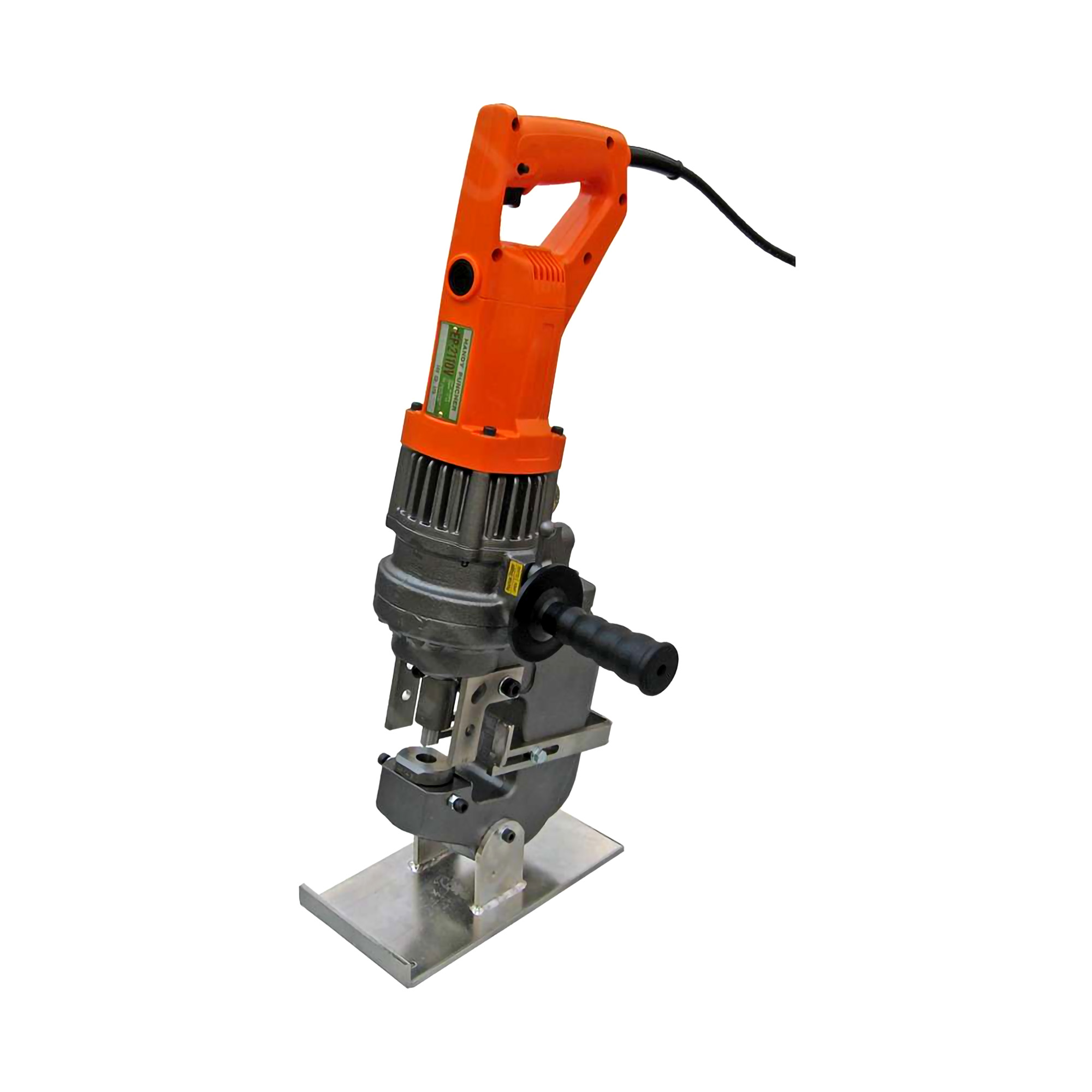

Diamond EP-2110V electric hole punch

Simple and safe to use – just position the work and press the button
No lubrication required
Adjustable guide makes positioning easy
Fast – punches through steel plate in approx 2 seconds
Portable – weighing 23.8kg, ideal for on-site work
Reliable – same unit as we hire out
12-month warranty backed by HTC
Spares – common punches & spares carried by our in-house workshop
Comes with 11mm diameter punch & die set, side handle, tool kit, stand and steel carrying case
Will also punch slotted or clearance holes.

Categories: , Brand:

Additional Information

More Information

EP-2110V Technical Data

Suitable for iron, steel, stainless & aluminium work pieces.

Max hole size Round 22mm, Elliptical 18.2 x 22mm

Max material thickness Steel or aluminium 10mm, Stainless steel 5mm

Max Throat depth 65mm

Power supply 230V

Dimensions 138 x 217 x 554mm

Weight 23.8kg

Manufactured in Japan
