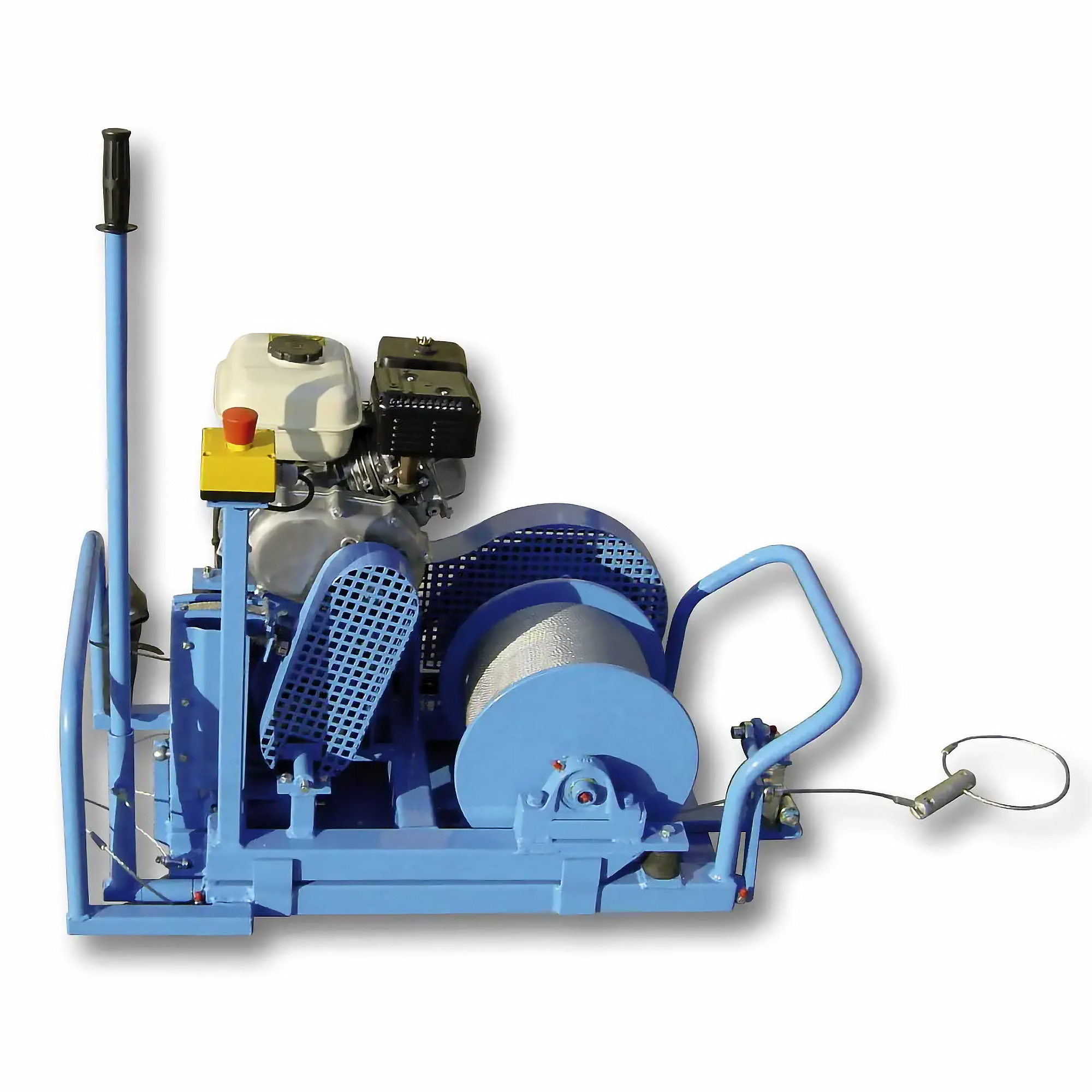

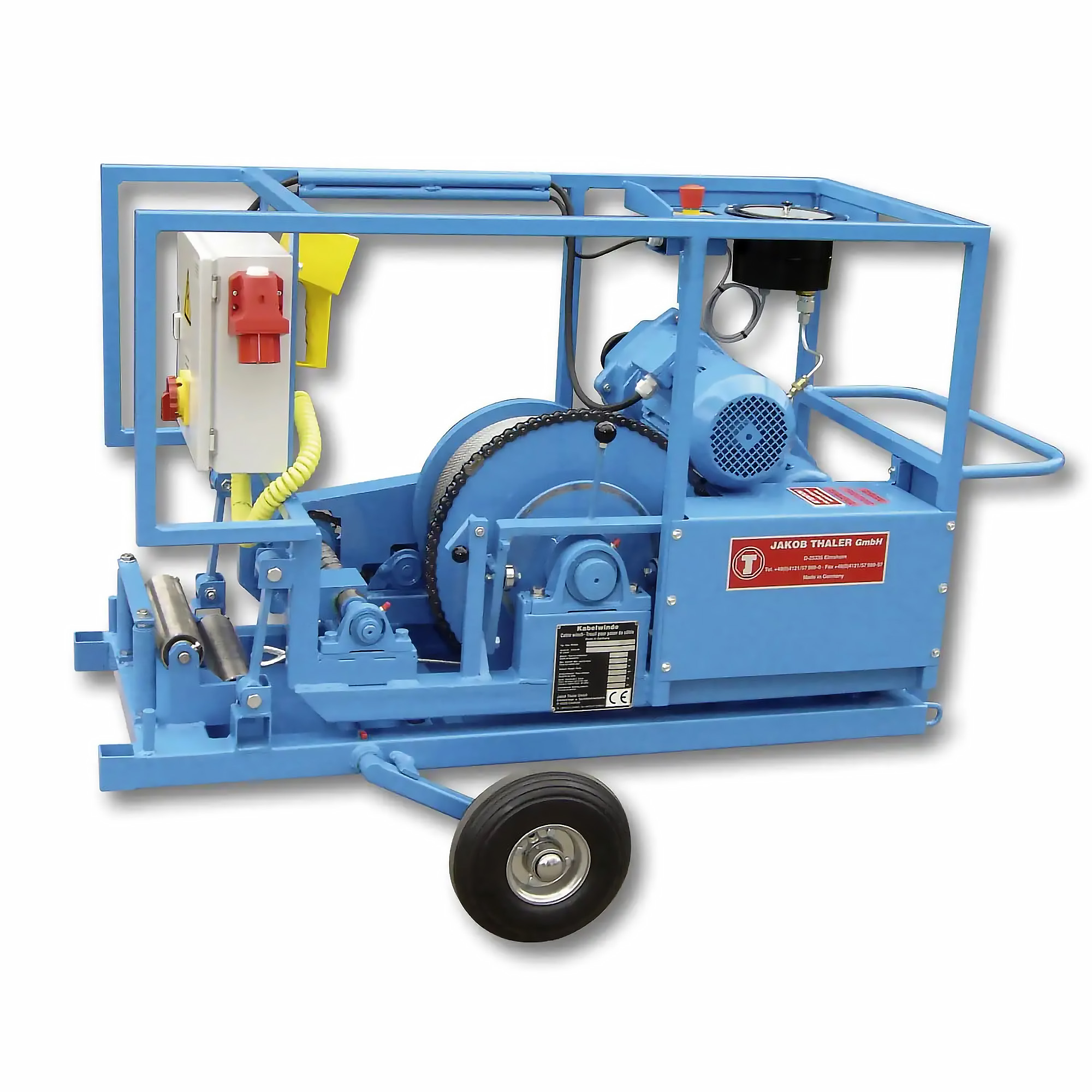

Thaler KE Cable Drum Winches

The THALER KE Cable Drum Winch range is specially designed for pulling highly sensitive power cables as well as for Telecom cables for inside and outside use.

This range has models capable of pulling 500kg-1600kg and is available in both electric and petrol engines.

Made by Thaler in Germany.

Categories: , Brand:

More Information

Standard equipment:

  • Mechanical drive
  • Rope drum with 250 m steel wire rope, Dia. = 6,5 mm (max. rope length 400 m)
  • Rope drum disengegable for pulling-out the rope
  • Automatic rope layering
  • Pulling force indication by measuring clockwork (ø 160 mm)
  • Adjustable pulling force limit value with automatic cut-off system
  • Petrol or electric engine
  • Cover by blue awning
  • Painting: RAL 5015 (blue)

Optional equipment:

  • Single phase AC engine 1,5 kW 230 V, 50 Hz
  • Bigger rope lengths up to max. 400 m
  • Mounted on single axle chassis
  • Electric brake motor for holding the load (Only for KE-1600 mit electric engine)
  • Electronic measuring system TM 3000 with USB / printer
  • Other colours upon request
