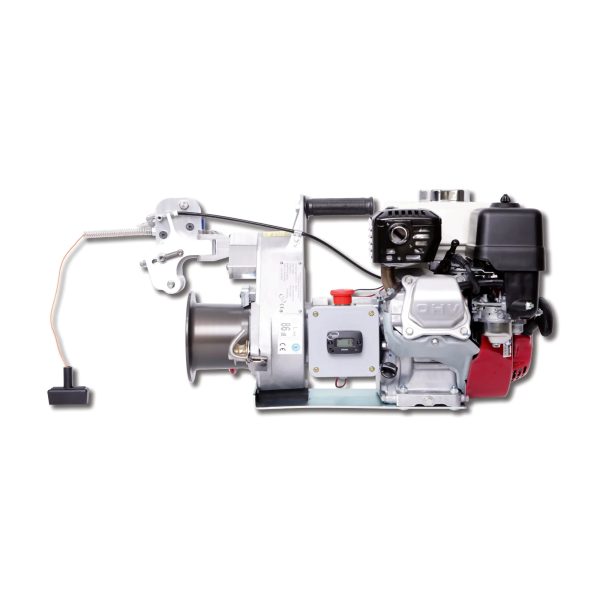

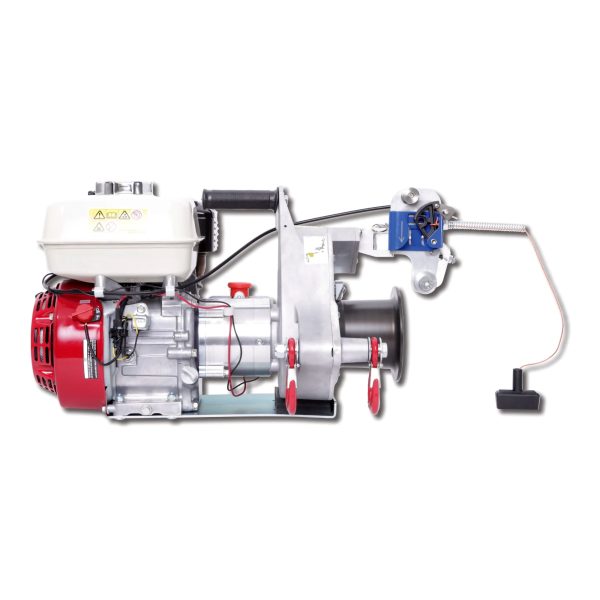

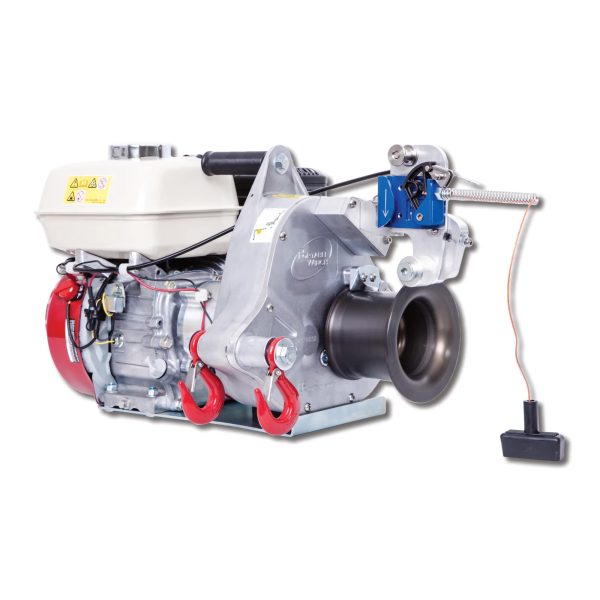

PCH2000 Petrol-Powered Pulling & Lifting Winch

Developed for lifting, the PCH series benefits from its own unique clutch and rope Progressive Capture System (PCS). Once the rope is inserted into the grabbing system, the operator activates the clutch and initiates the movement by pulling the rope horizontally.

The PCH2000 features an unprecedented pulling power of 1150kg and a lifting capacity of 450kg in a single line.

More Information

The PCH2000 has a capstan drum that allows to maintain a constant force over an unlimited length of rope. It is also the first model to offer a 108mm anodized drum. By oversizing the drum, the friction surface is expanded and it results in better load control. Through anodic oxidation treatment, the PCH2000’s drum features better wear resistance and does not increase the rope conductivity. These attributes make it ideal for its assignment to tasks around and on electrical structures.

  • CAPACITY
    Maximum pulling force with installed drum : 1150 kg
    Rated lifting capacity with installed drum : 450 kg
  • CAPSTAN DRUMS
    Installed : 108 mm
    Optional : N/A
  • SPEED
    108 mm drum : 22 m/min
  • ROPE
    Lifting : Low stretch double braided polyester – unlimited length – Eye splice and thimble mandatory for lifting applications
    Minimum diameter : 12 mm
    Maximum diameter : 13 mm
    Ideal diameter : 12 mm
  • WEIGHT & DIMENSIONS
    Weight : 34.5 kg
  • WARRANTY
    Private use : 2 years
    Commercial use : 1 year
    Engine/Motor : Honda International Warranty
