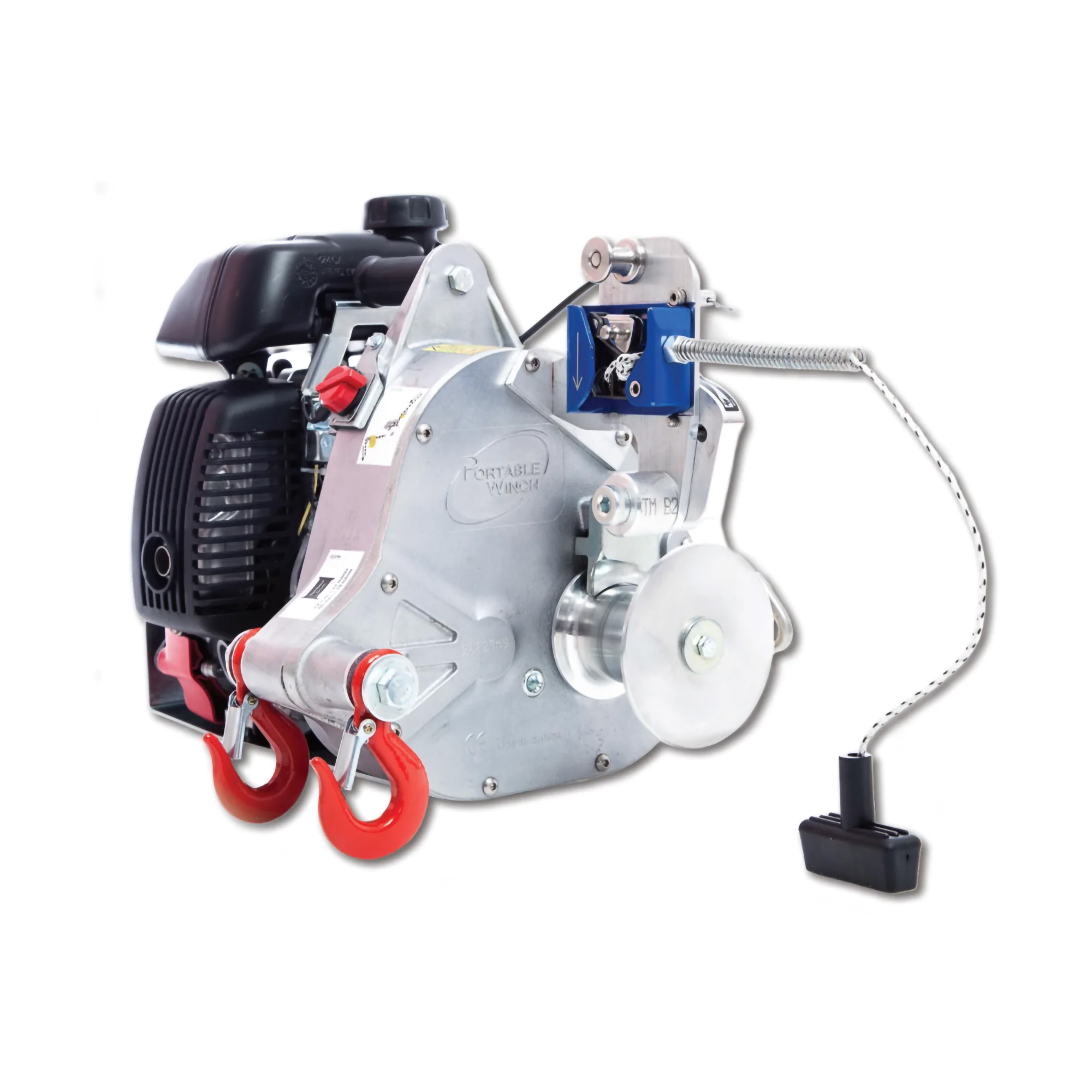

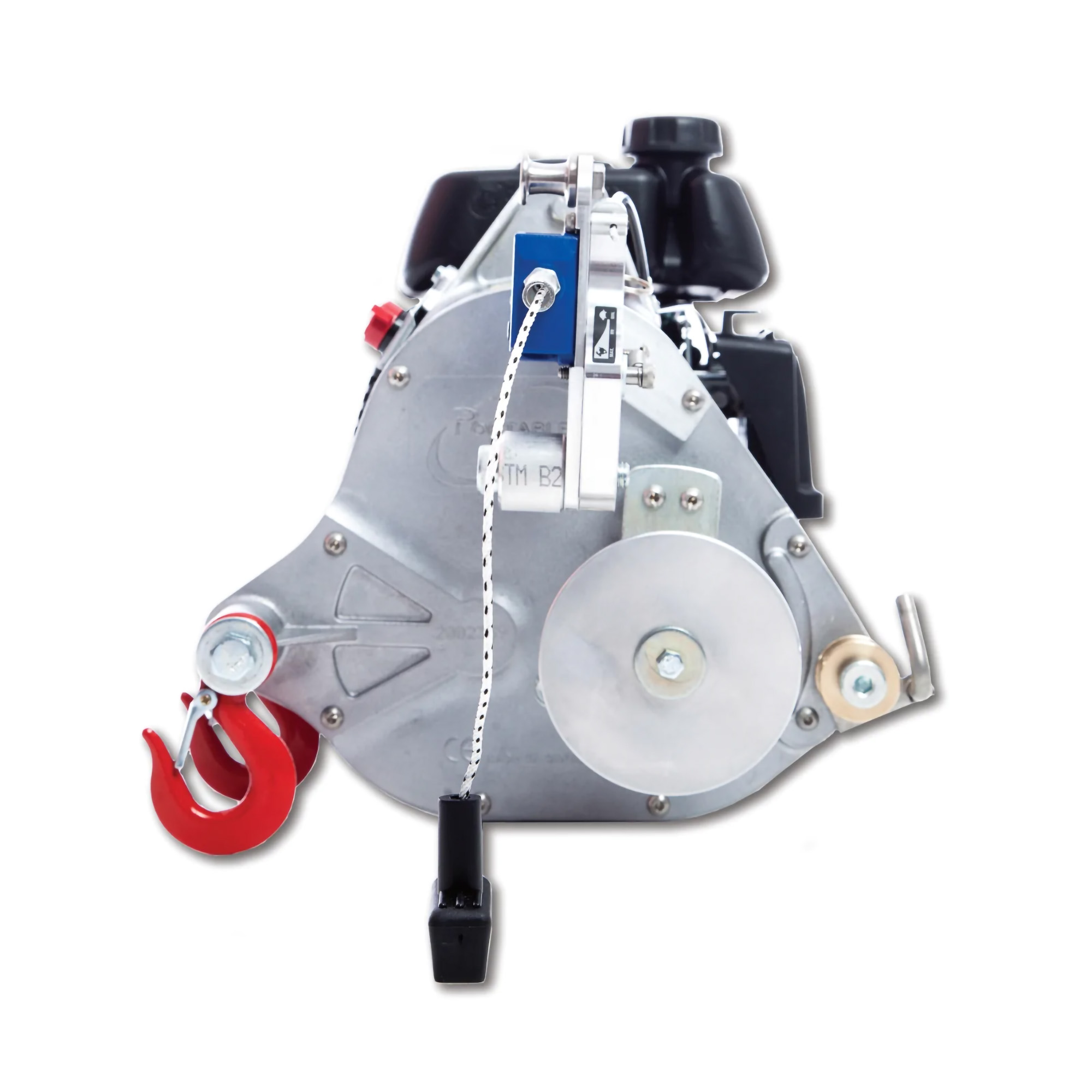

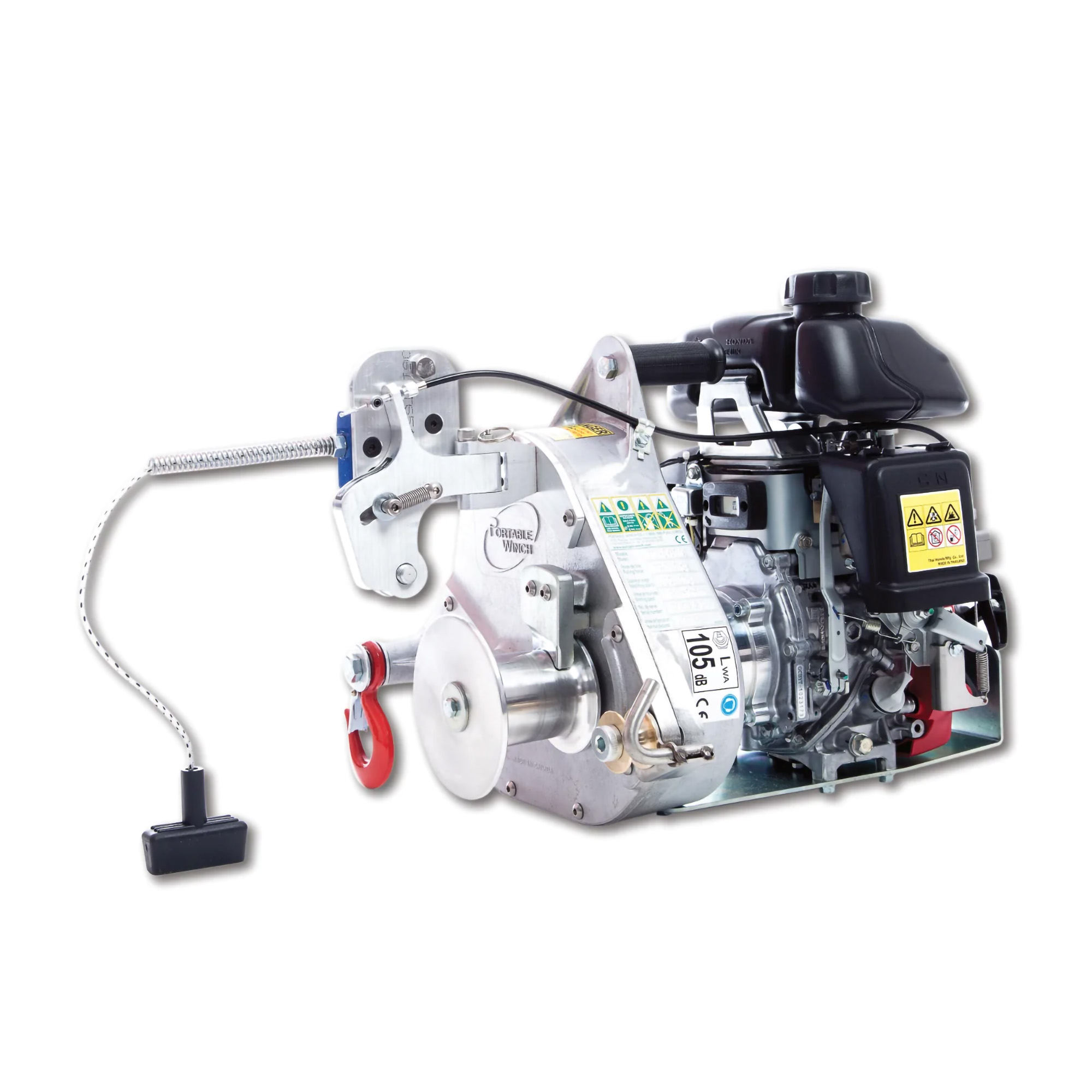

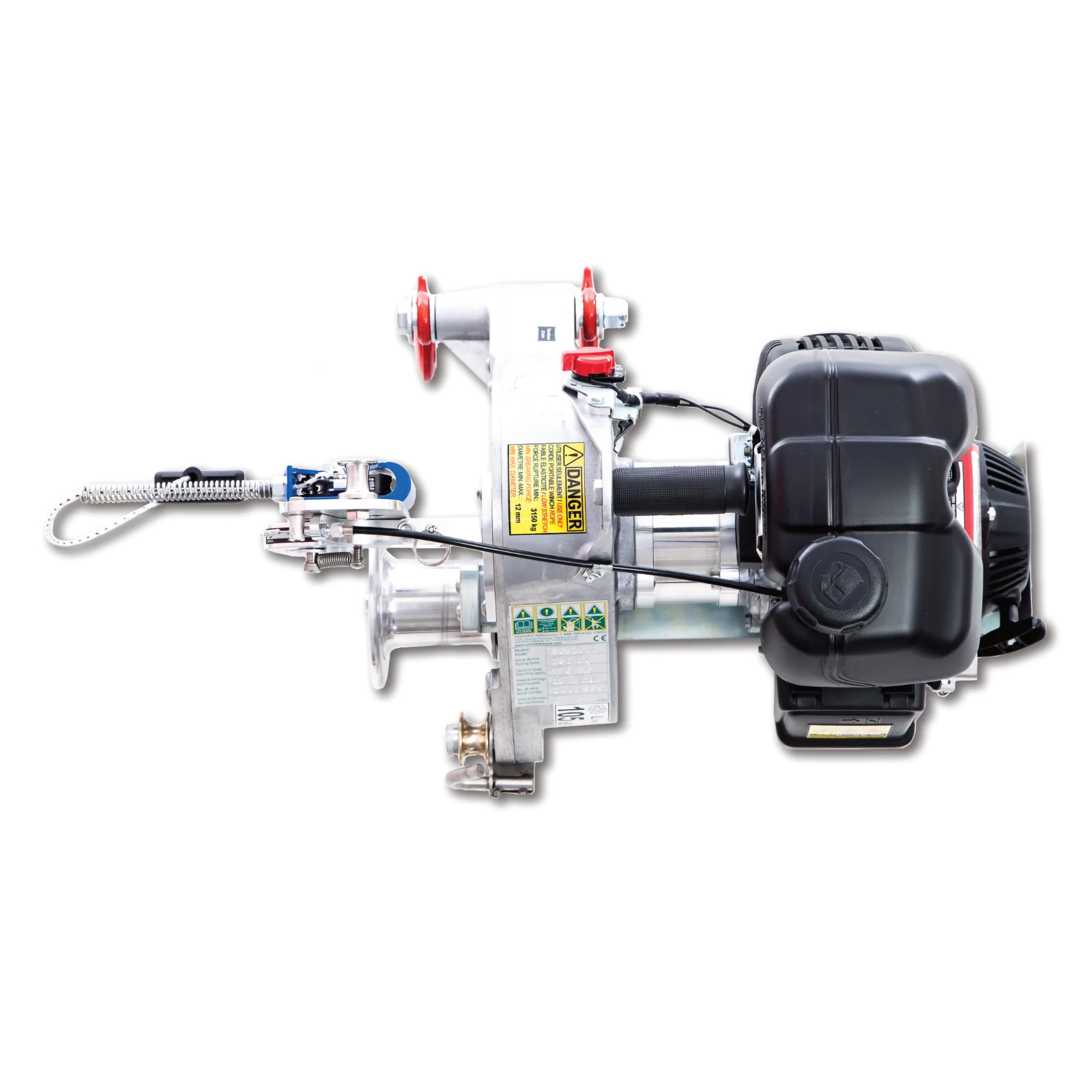

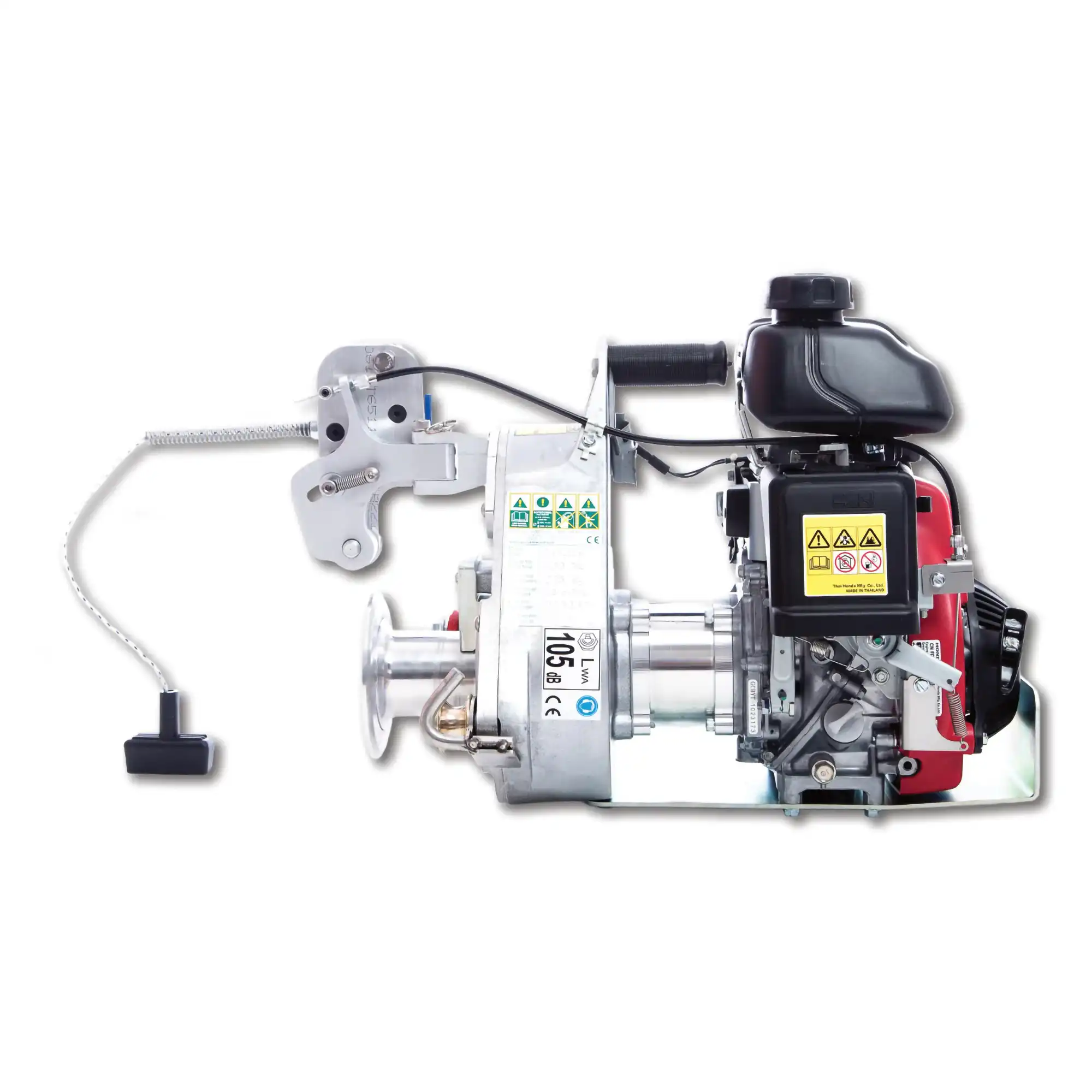

PCH1000 Petrol Powered Portable Winch
The PCH1000 Petrol Powered Portable Winch. Specifically designed for the lifting needs of the industrial sector, features the Progressive Capture System (PCS).  This is essential for lifting, lowering and holding loads safely.
-  The PCH1000 is versatile and safe. Whether for telecommunications structures assembly, for lifting various equipment on a site or simply for pulling loads.
- In addition, a wide variety of anchoring systems are available so you can easily do your setup.
Additional Information
More Information
- Located between the engine and the gearbox, the clutch system ensures that the capstan drum does not rotate when the engine idles.
- Additionally, once the rope is inserted into the PCS, the operator activates the clutch and initiates the movement simply by pulling on the rope horizontally.
- The rope grabbing system prevents the rope from slipping on the drum therefore holding the load when the rope is released.
- The winch can also be used to lower a load by disengaging the Progressive Capture System.
- To do this, the operator should simply pull the handle of the grabbing system cord and control the main rope during the descent.
- It can lift a load of 250 kg with a single line and a block and tackle system will allow you to increase its capacity.
- A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
CAPACITY
Maximum pulling force with installed drum : 775 kg
Maximum pulling force with optional drum : 540 kg
Rated lifting capacity with installed drum : 250 kg
Rated lifting capacity with optional drum : 175 kg
CAPSTAN DRUMS
Installed : 57 mm

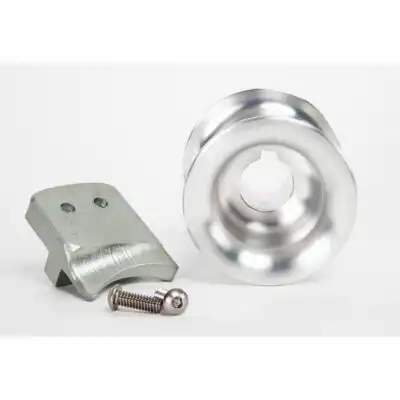

Optional : 85 mm
SPEED
57 mm drum : 12 m/min
85 mm drum : 18 m/min
ROPE
Lifting : Low stretch double braided polyester – unlimited length – Eye splice and thimble mandatory for lifting applications
Minimum diameter (metric) : 12 mm
Maximum diameter (metric) : 13 mm
Ideal diameter (metric) : 12 mm
WEIGHT & DIMENSIONS
Weight (metric) : 19 kg
ANCHOR
Included : Polyester sling 60 mm x 2 m (PCA-1260)
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
