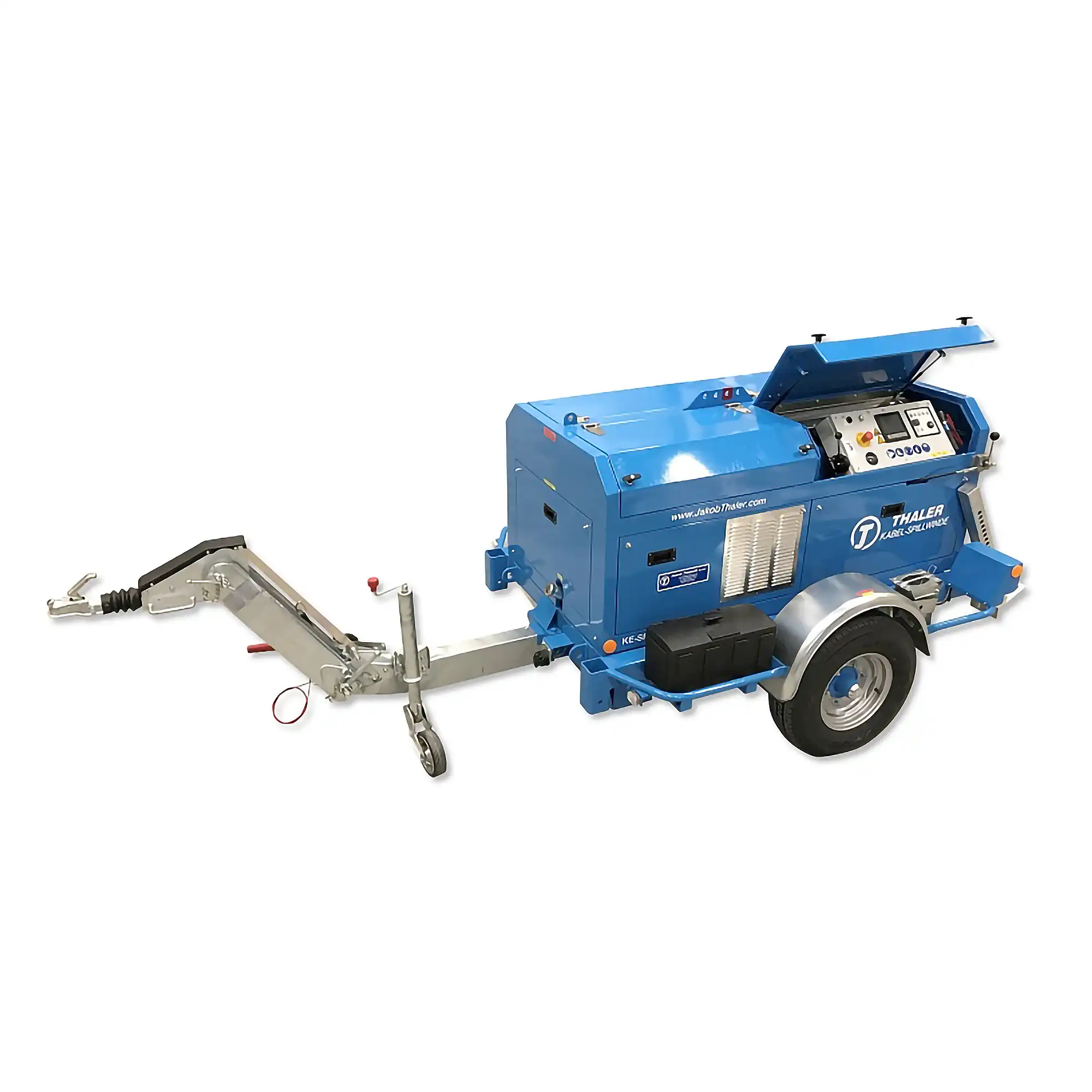

Thaler 4000 Series Trailer Winches

The THALER Cable Capstan Winch – product line 4000 – is of captivating compact construction.

This range has models capable of pulling 4000kg-5000kg and with the standard rope length of 500m the winch has a weight of up to 1980kg so can therefore be drawn by most vehicles.

Made by Thaler in Germany.

More Information

Standard equipment:

  • Double capstan system
  • Hydrostatic drive
  • Diesel engine
  • 500 m usable rope length, bigger rope lengths upon request
  • Drum capacity for bigger rope lengths:
  • KE-SP 4040, with 4.000 kg pulling force and an max. rope length up to 1400 m, Dia. = 11,0 mm
  • KE-SP 4050, with 5.000 kg pulling force and an max. rope length up to 1200 m, Dia. = 12,0 mm
  • Pulling force control by electronic measuring system with USB port and stick – SYSTEM TM 3000
  • Single axle chassis with overrunning brake, height adjustable drawbar and jockey wheel
  • Lockable sheet steel cover hood with integrated loading equipment with central crane hook
  • Painting RAL 5015 (blue)

Optional equipment:

  • Other measuring systems
  • Printer for the electronic measuring system TM 3000/1 (additional to USB port)
  • Remote control by cable or radio transmission
  • Winch on basic frame for mounting on trucks
  • Biodegradable hydraulic oil upon request
  • Other colours upon request
