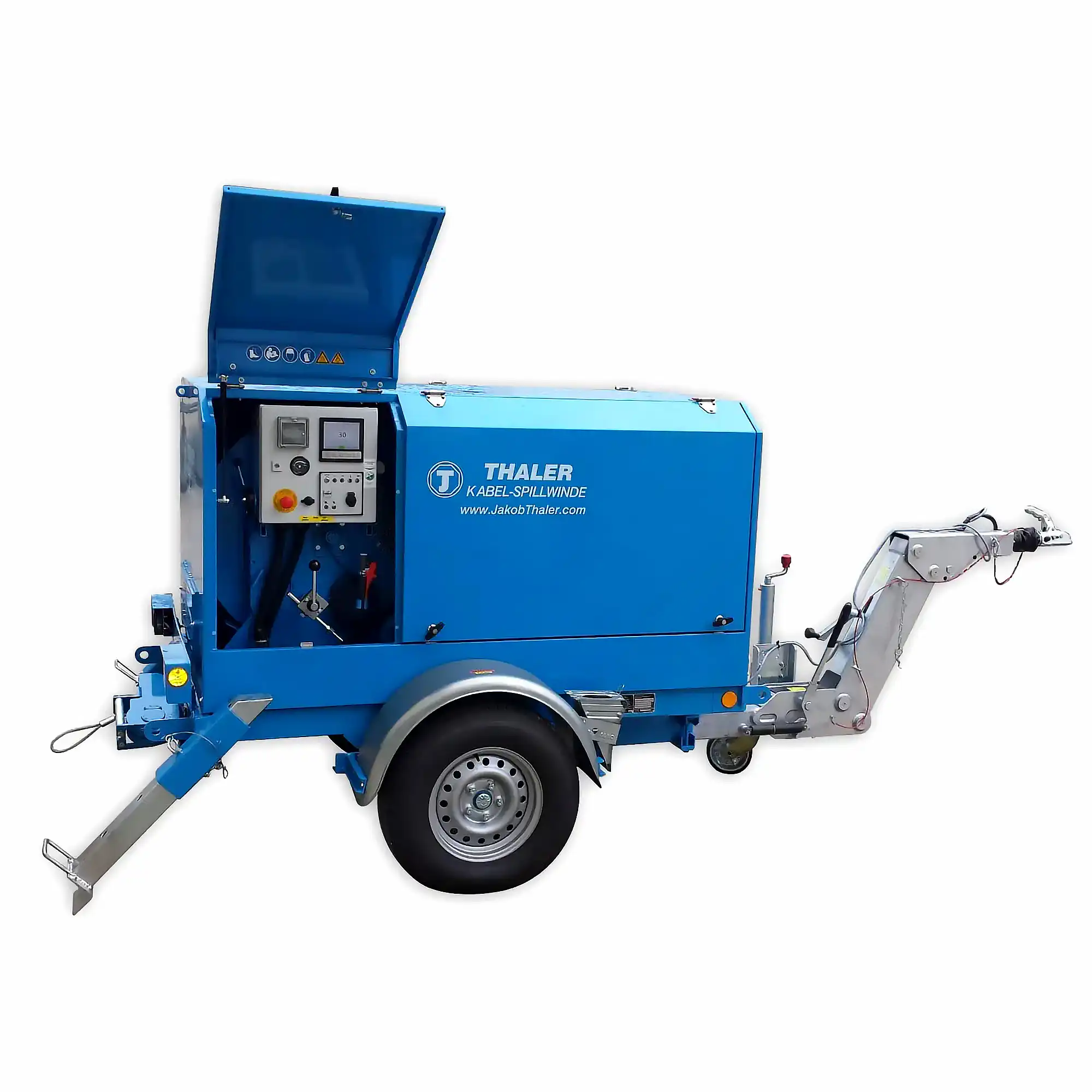

Thaler 3000 Series Trailer Winches

The THALER cable capstan winch from the winch series 3000 represents the current state-of-the-art in the field of hydraulic cable pulling winches.

This range has models capable of pulling 2000kg-5000kg.

Made by Thaler in Germany.

More Information

Standard Equipment:

  • Double capstan system, both capstan heads are driven
  • No chains between hydraulic motor and capstan system
  • Hydrostatic drive
  • Diesel engine
  • 500 m usable rope length, longer rope lengths possible
  • Drum capacity for long rope lengths:
  • KE-SP 3020, with 2,000 daN tensile force and up to 2,200 m rope, D = 8.0 mm
  • KE-SP 3030, with 3,000 daN tensile force and up to 1,600 m rope, D = 9.5 mm
  • KE-SP 3040, with 4,000 daN tensile force and up to 1,200 m rope, D = 11.0 mm
  • KE-SP 3050, with 5,000 daN tensile force and up to 1,000 m rope, D = 12.0 mm
  • Automatic cable guide device to the drum
  • Tension monitoring by electronic measuring device TM 3000 with USB interface
  • Braked single-axle chassis with height-adjustable drawbar and support wheel
  • Sheet steel hood
  • Paintwork: RAL 5015 (blue)


Optional Equipments:

  • Other measuring systems, such as TM 3001, allow the operator data to be entered directly into the draw log via the browser of the smartphone / tablet if required
  • Petrol, diesel or electric motor
  • Printer for the measuring device TM 3000 / TM 3001 (in addition to the USB interface)
    tandem chassis
  • Remote control via cable or radio
  • Straight drawbar without height adjustment
  • Winch on a base frame for mounting on a vehicle
  • Biodegradable hydraulic oil on request
  • Loading frame with central lifting eye
  • Other finishes are possible on request
