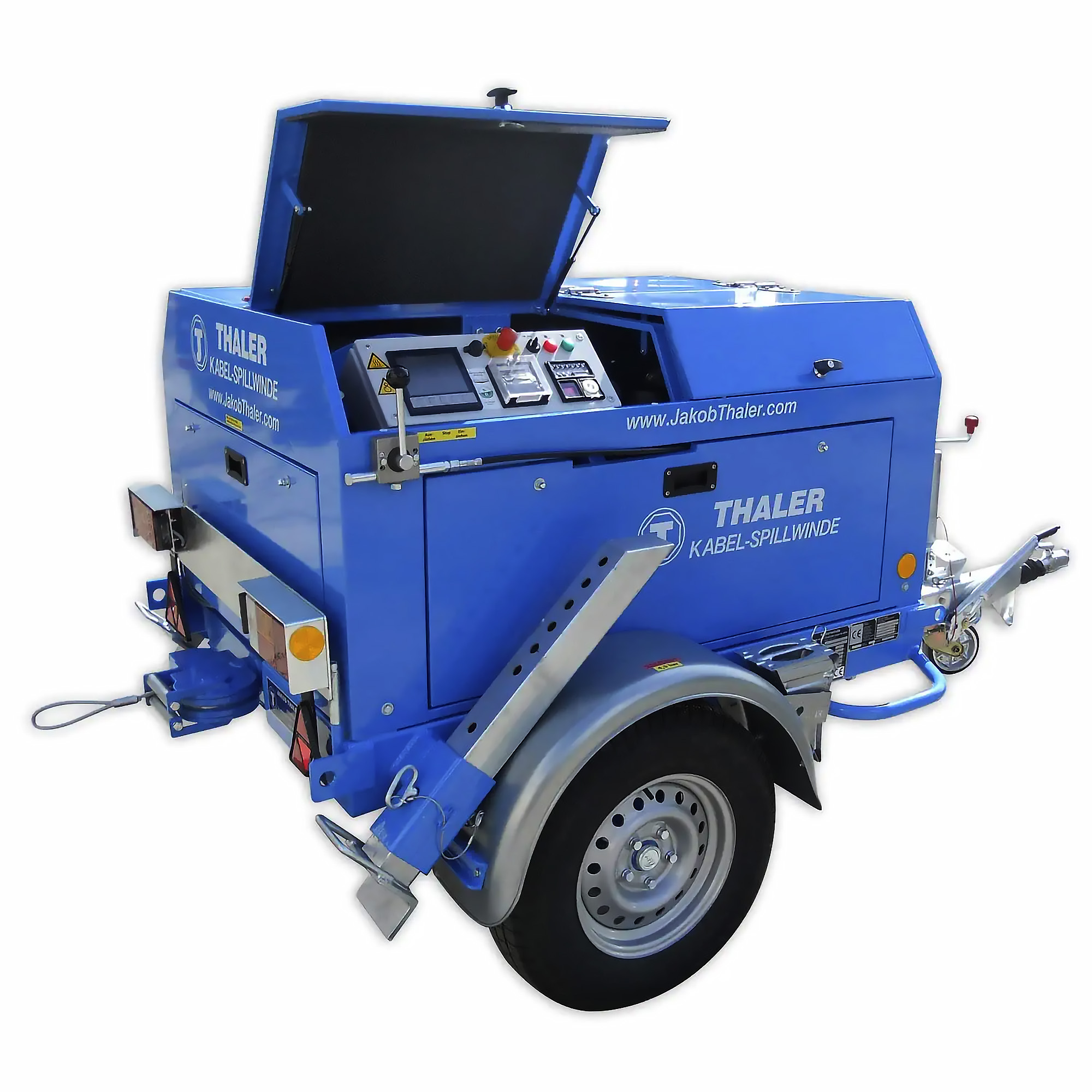

Thaler 2000 Series Trailer Winches

The THALER Mini Power Puller (MPP) Cable Capstan Winch is the slim version of product line 2000, but has all necessary equipments for a professional cable pulling.

This range has models capable of pulling 1000kg-3000kg.

Made by Thaler in Germany.

Categories: , Brand:

More Information

  • Double capstan system
  • Hydrostatic drive
  • Petrol engine
  • 500 m usable rope length, bigger rope lengths upon request
  • Drum capacity for bigger rope lengths:
  • KE-SP 2010, with 1.000 kg pulling force and an max. rope length up to 2000 m, Dia. = 6,5 mm
  • KE-SP 2020, with 2.000 kg pulling force and an max. rope length up to 1500 m, Dia. = 8,0 mm
  • KE-SP 2030, with 3.000 kg pulling force and an max. rope length up to 1000 m, Dia. = 9,5 mm
  • Measuring clockwork (dynamometer) for indication of the pulling force
  • Pre-adjustable pulling force limit via pressure control valve
  • Without pulling force registration
  • Single-axle chassis, brakeless, ring eye coupling with jockey feet
  • Lockable sheet steel cover hood with integrated loading equipment with central crane hook
  • Painting RAL 5015 (blue)

Optional equipment:

  • Diesel engine
  • Single-axle chassis with overrunning brake, straight draw-bar, ball coupling and jockey wheel
  • Winch on basic frame for mounting on trucks
  • Biodegradable hydraulic oil upon request
  • Other colours upon request
  • TÜV (Technical Surveyance Authorities) approval for the public traffic
  • Deflection boom
