Slurry Gate System SG4-SG6

The DOA Slurry Gate System is an accessory for trash pumps DOA models SP45 – SP55 – SP65.

  • This accessory is helpful when the liquid that is to be pumped is very thick and has suspended solids (like sediments, mud balls or oil balls or other agglomerate of semi solid/ pasty liquids) that must be disintegrated to become more fluid.
  • Made by Doa in Italy.
Category: Brand:

Additional Information

More Information

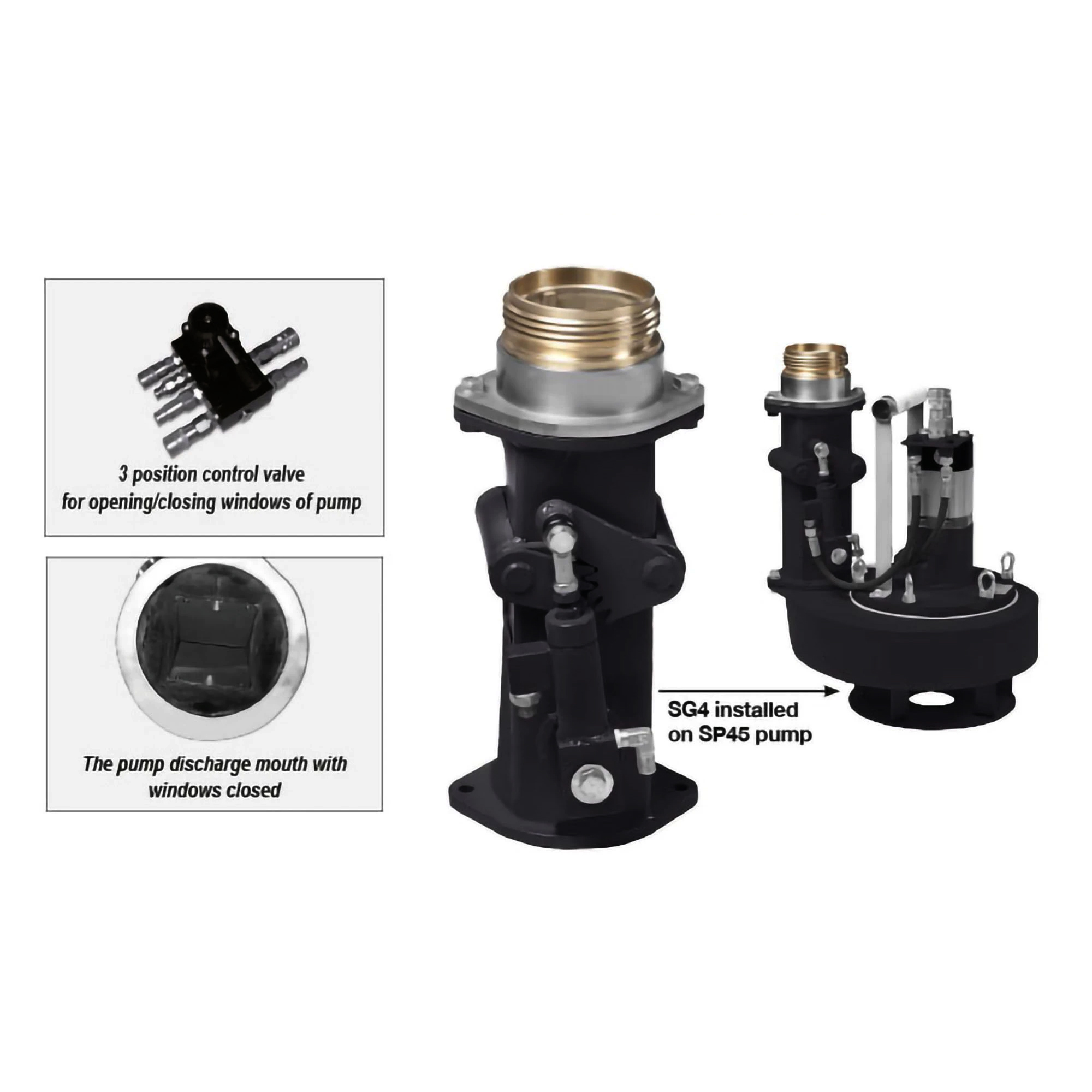

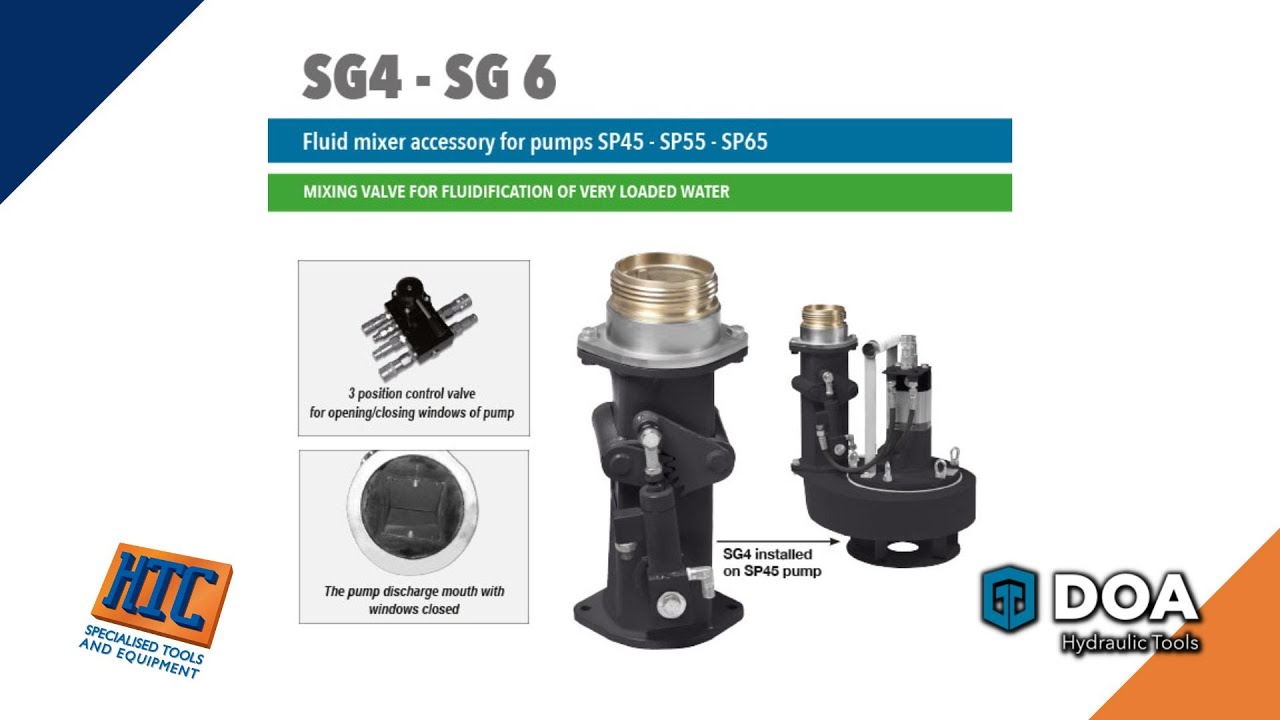

This accessory consists of:

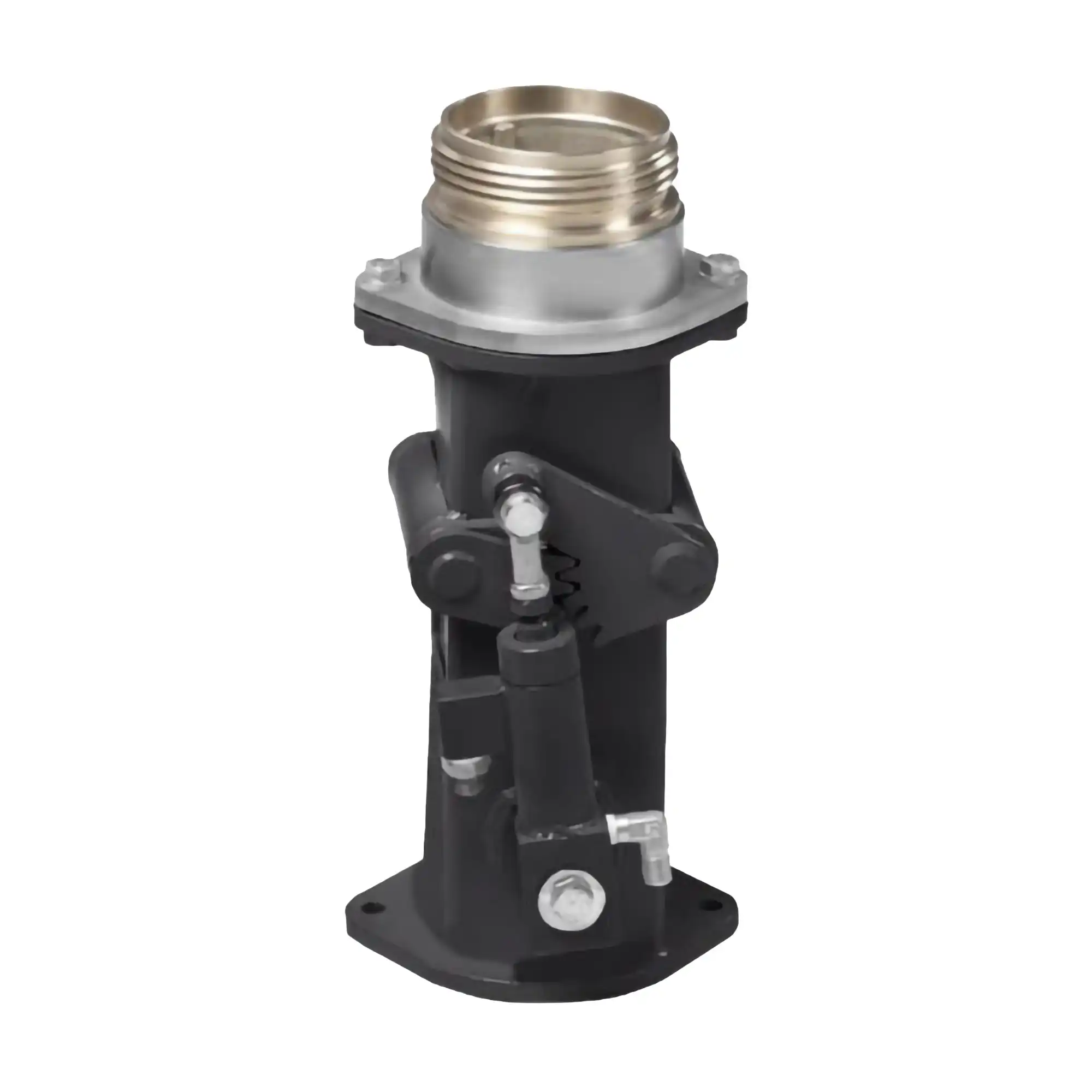

  • SG4 – SG6 body and cylinder, this element to be installed on the pump outlet mouth.
  • Hydraulic control valve and hoses that can control the opening/ closing action of the slurry gate.

The Slurry Gate is a “retrofit accessory” that can be installed on pumps, its action as mixer is necessary when the liquid that is to be pumped is very thick and has suspended solids (like sediments, mud balls or oil balls or other agglomerate of semi solid/ pasty liquids) that must be disintegrated to become more fluid and pumped.  This is also needed to avoid choking at the pump inlet.

After some minutes of this treatment the liquid can be pumped easier and the pump will run in its natural function.

The length of the hydraulic pipe that connects the three-position valve to the mixer body must be prepared at the time of purchase.
