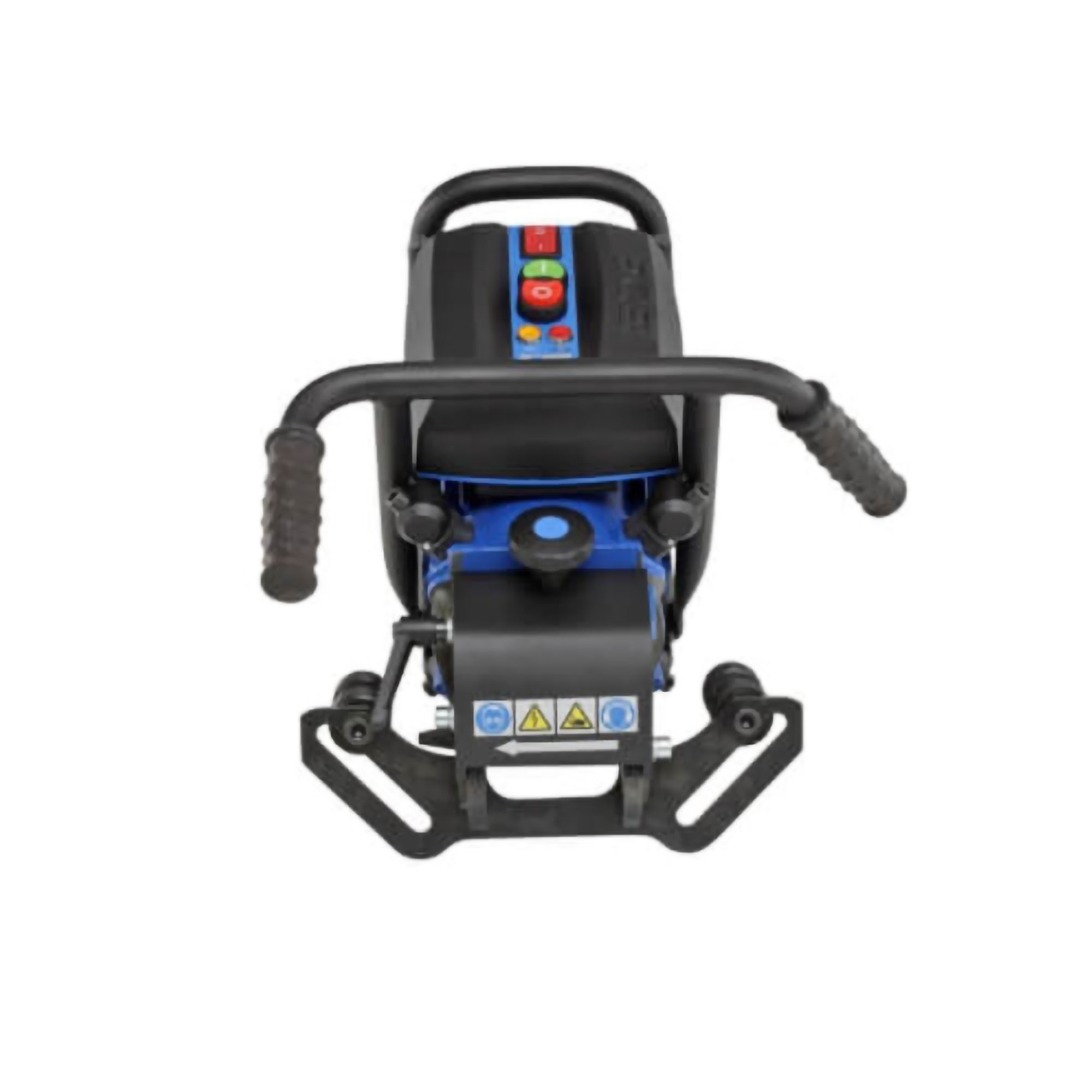

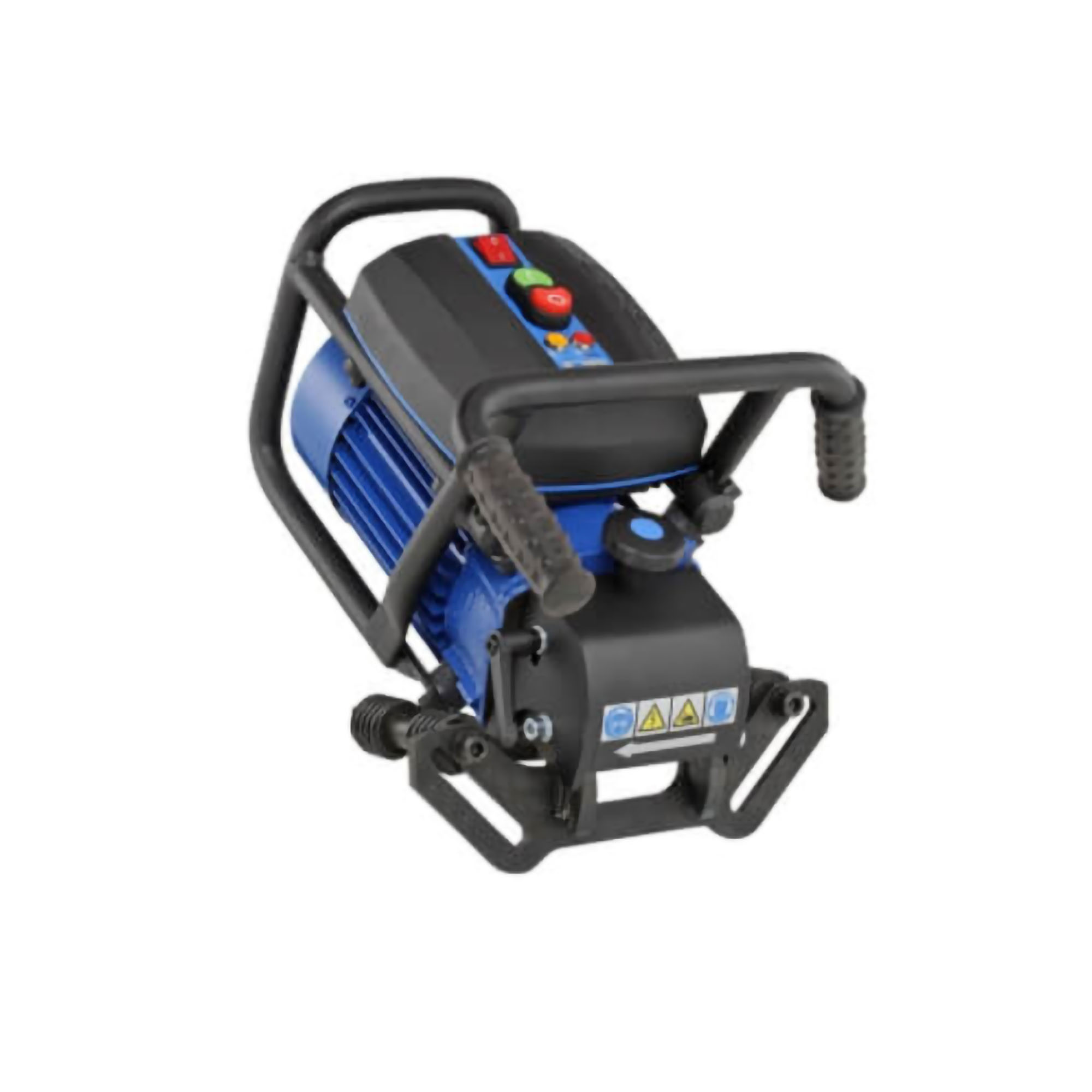

SKF 25 Portable Beveling Machine

The SKF 25 portable beveling machine delivers wide chamfers up to 15 mm, continuous angle adjustment from 15 to 60 degree. The SKF 25 beveling machine has ergonomic handle arrangement, easily guided with guide rollers.

Good work preparation, good results – this universal plate beveling machine enables perfect weld preparation. Large guide rollers and a continuous angle adjustment from 15 to 60° render the system practical. On account of its low weight of 22 kg, it is easy to handle and can be guided exactly and easily with smooth-running rollers. The end result is uniformly milled edges for perfect welded seams.

Ideal for use on steel, stainless steel, aluminum and nonferrous metals. Robust design, single operator control and easy handling; designed for continuous operation with smooth roller guides.

The SKF 25 beveling machine’s anti-vibration system protects the electronics and allows for more comfortable operation. Includes one milling head and 10 indexable inserts for fast metal removal and extended tool life.

Work on welding angles and weld preparation on pipes/tubes with a minimum OD of 160mm with built-in pipe roller guide.

Category: Brand:

More Information

Motor Output 1100 Watt
Voltage 220-240 / 110-125 Volt (50-60 Hz)
Speed 2850 min -1
Feed Manual
Chamfer Width 15 mm
Angle Adjustment 15° – 60° Continuous
Milling Cutter ZFR 250
Carbide Reversible Disc (Insert) SHM 800
Weight 22 kg
