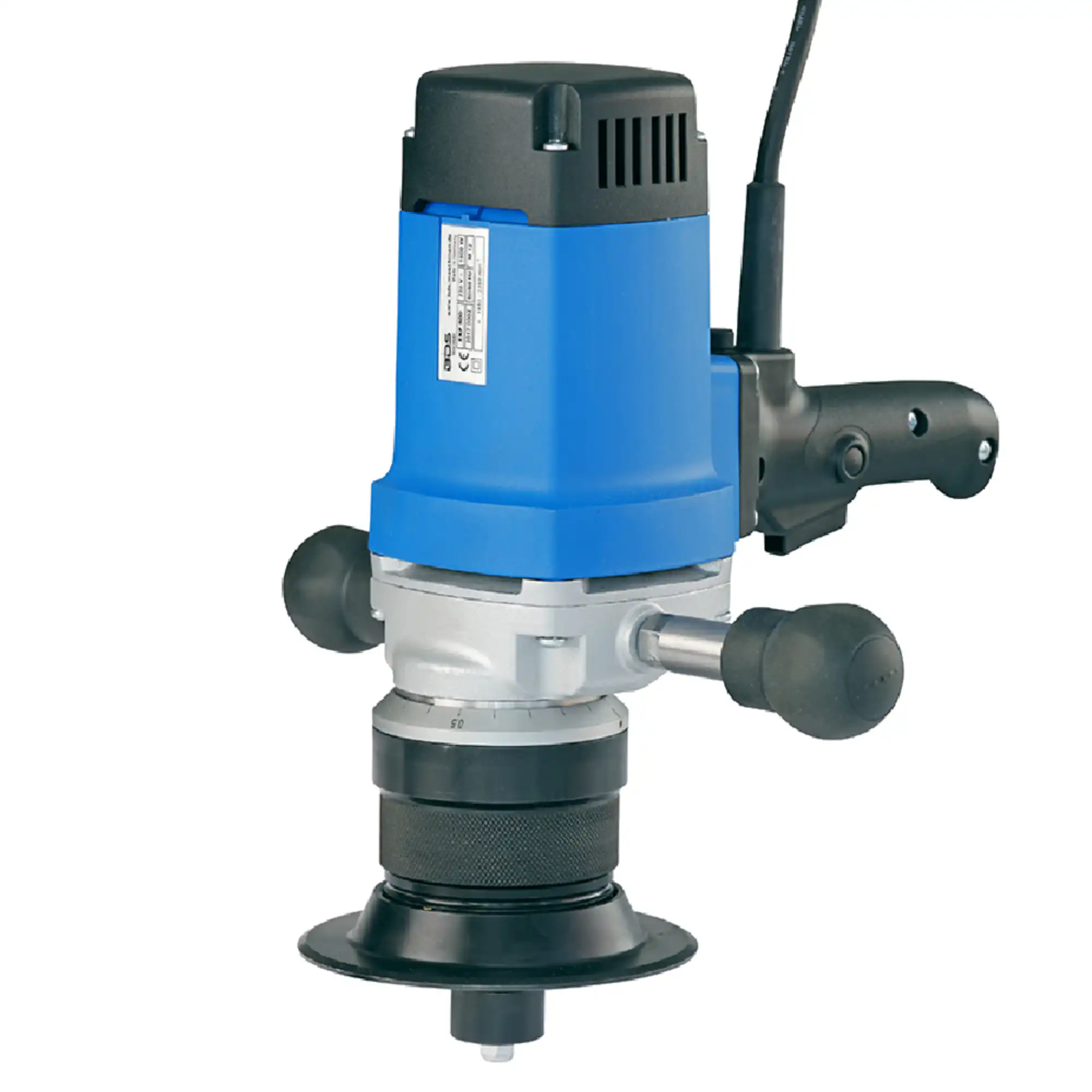

EKF 645 Plate Chamfering Machine

The Made in Germany Portable Plate Beveling Machine is designed for 45-degree chamfering with a width of 15 mm (0.590”). It features a robust 2300-watt (20.9 Amp) motor that delivers 1600 – 3000 RPM with variable speed control.

The EKF 645 model is available in both 220-240 Volt and 110-125 Volt versions and weighs only 10.2 kg (22.48 lbs).

Its rotary disc with recirculating bearings minimizes friction and energy consumption. The innovative tangential plate configuration ensures smooth operation without impact jarring at low speeds, resulting in clean milled edges for both internal and external radii. This makes it ideal for weld seam preparation.

Category: Brand:

More Information

Motor Output 2300 Watts
Voltage 220-240 / 110-125 Volt (50-60 Hz)
Speed Seamless Electronic speed regulation (1600 -3000 min-1) with full wave control electronics
Feed Manual
Chamfer Width 15 mm
Angle Adjustment 45°
Milling Cutter ZFR 645
Carbide Reversible Disc (Insert) SHM 900 / SHM 900 E
Weight 10.2 Kg
