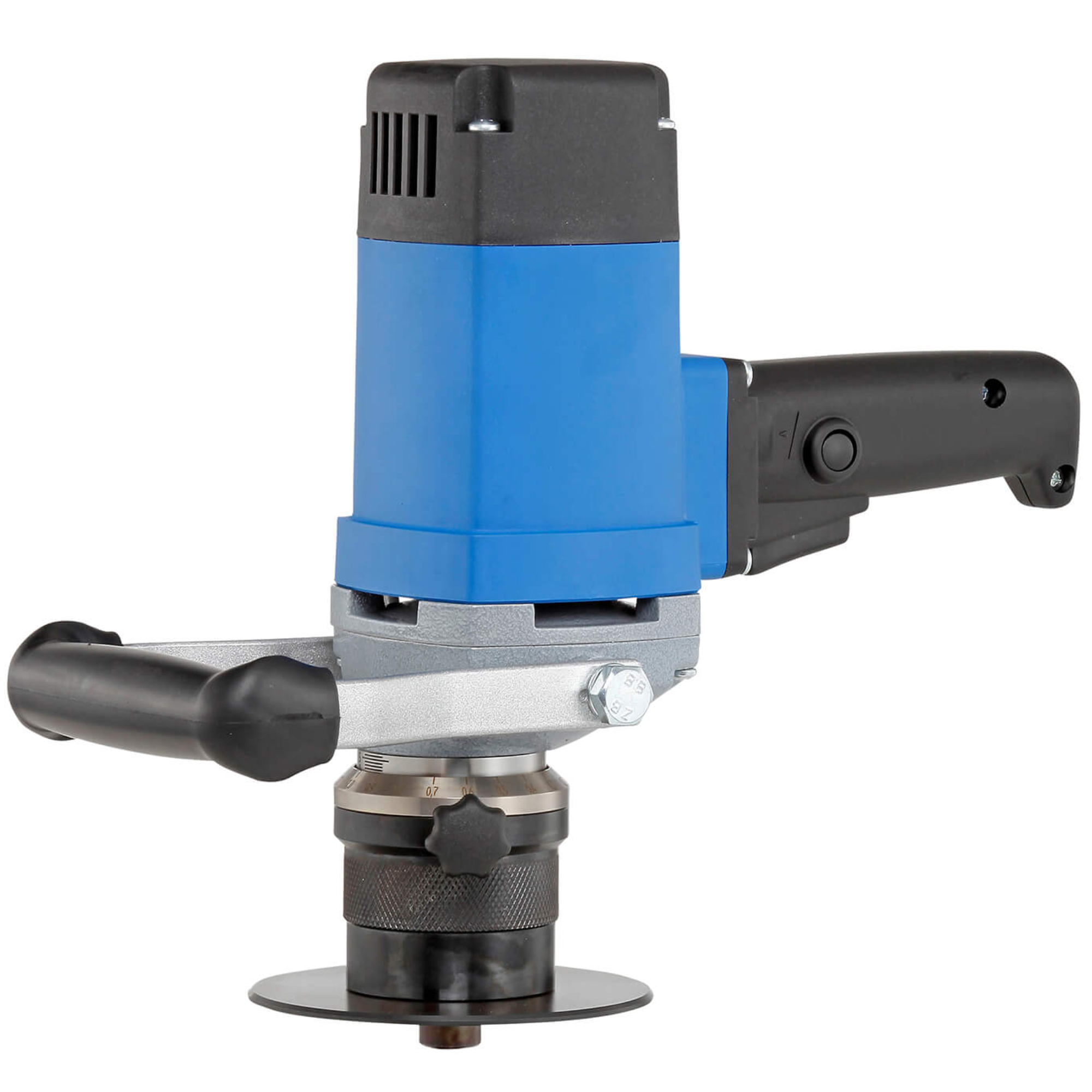

EKF 300.3 Plate Chamfering Machine

The EKF 300.3 Chamfering Machine features fine adjustment capabilities for precise chamfering during deburring, ideal for weld seam preparation.

It is designed to chamfer at a 30-degree angle with a width of 5 mm (1/4″), perfect for both straight edges and the inner and outer edges of profiles.

The machine is equipped with a durable milling cutter that includes three triangular carbide inserts, each of which can be used on three sides.

Manufactured in Germany, the EKF 300.3 boasts a powerful 1500 Watt (13.6 Amp) motor that delivers 6000 RPM.

This compact chamfering machine weighs just 4.6 kg (10.5 lbs).

Category: Brand:

More Information

Motor Output 1500 Watt
Voltage 220-240 / 110-125 Volt (50-60 Hz)
Speed 6000 min -1
Feed Manual
Chamfer Width 0-5 mm
Angle Adjustment 30°
Milling Cutter ZFR 300.3
Carbide Reversible Disc (Insert) SHM 200-E
Weight 4.6 kg
