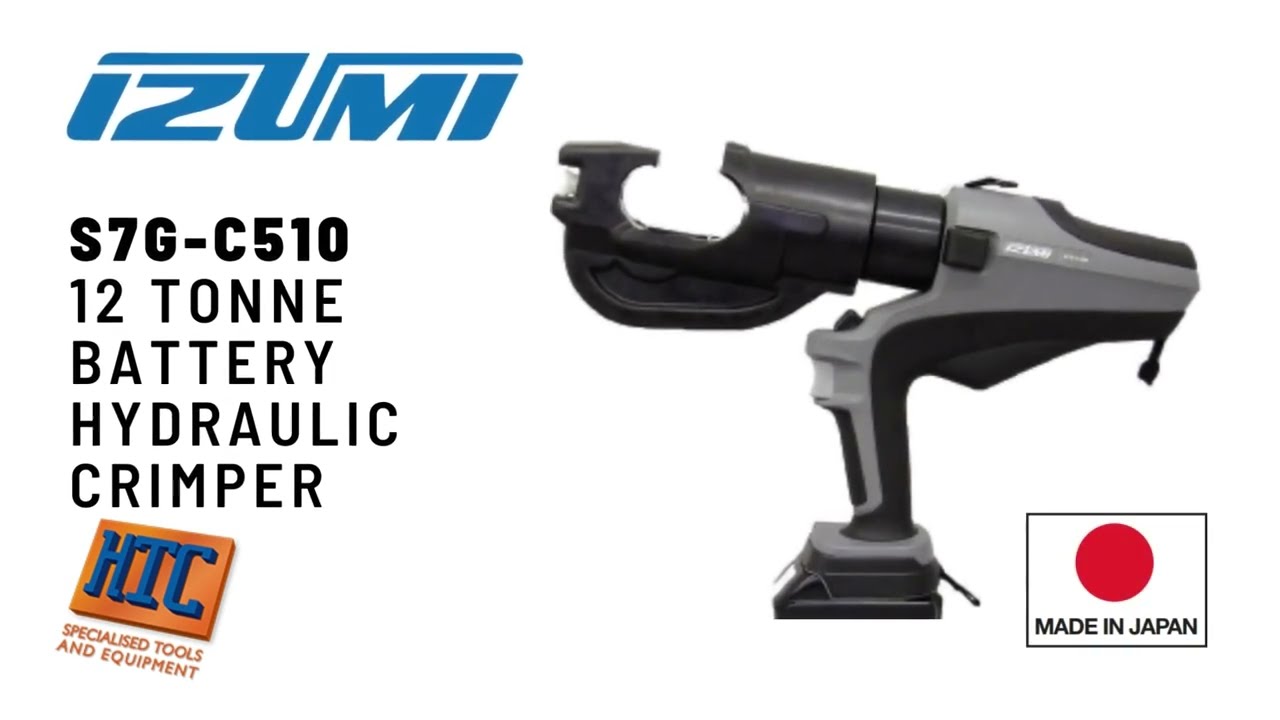

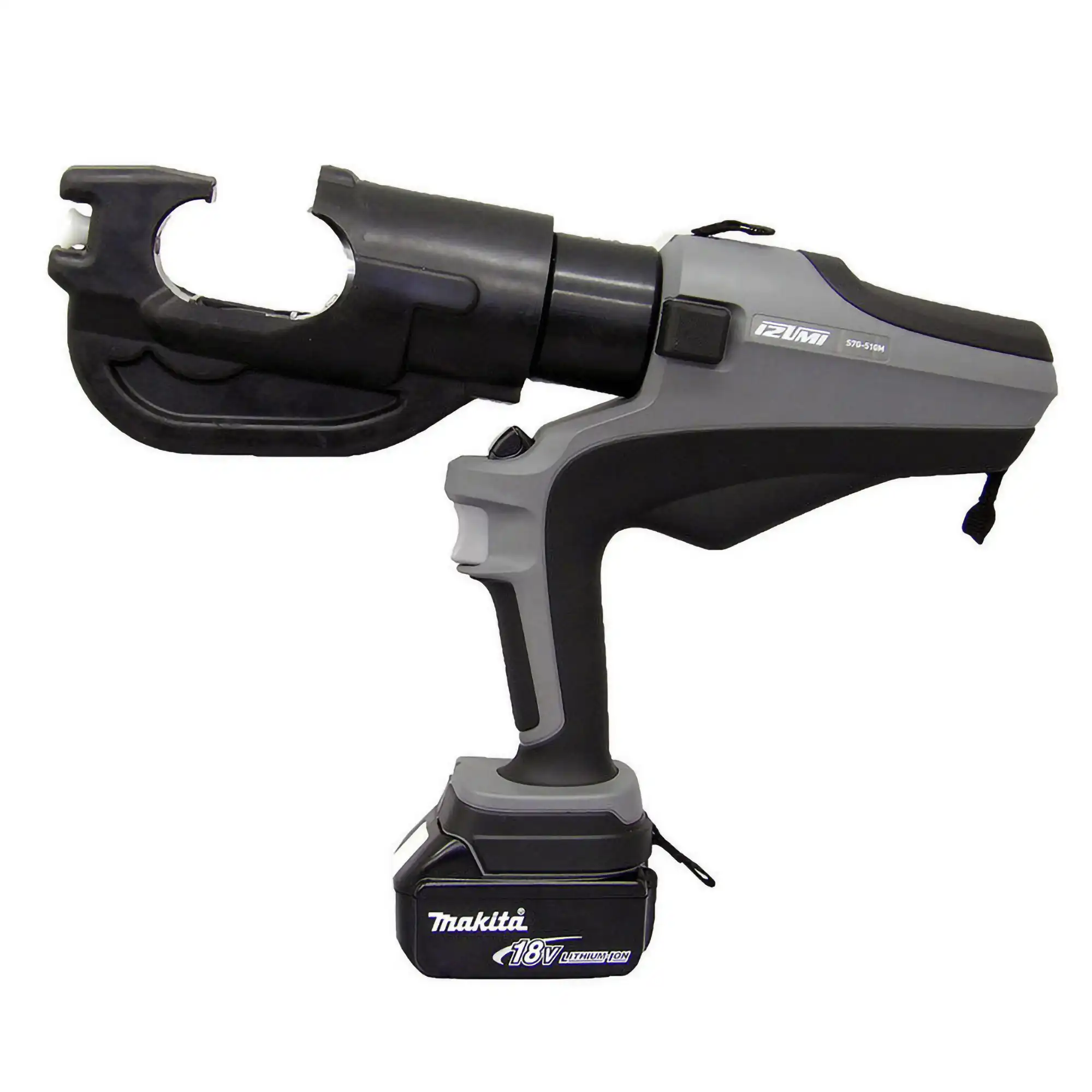

Izumi S7G-C510M 12 Tonne Battery Hydraulic Crimper

The Izumi battery operated 12 tonne compression tools use standard 12 tonne dies for applying compression fittings to copper, aluminium, ACSR and various other cables and conductors.

The pistol version “Series 7” tools are well balanced and preferred for overhead and switchboard applications. The trigger switch and return button are activated by only one hand (left or right), so that other hand is always free to hold working material.

Uses the common 18V Makita battery platform.

Dies are sold separately.

More Information

Jaw opening 42 mm
Capacity Max 300mm2 AL/400mm2 CU
Force at die face 120kN
Weight 7.8kg with battery
Number of crimps per charge for maximum size conductor: Approximately 75

Manual retract button, does not rely on battery
Retract stop feature for doing multiple crimps
Non slip soft grip
Ergonomic design and hand grips
Pinch Free Design
LED Light (For dark working places)
Rapid ram advance mechanism
Right or Left handed operation
270 degree swivel head
Quality backed by ISO9001
Made in Japan

• Shoulder strap
• Double moulded carry case
