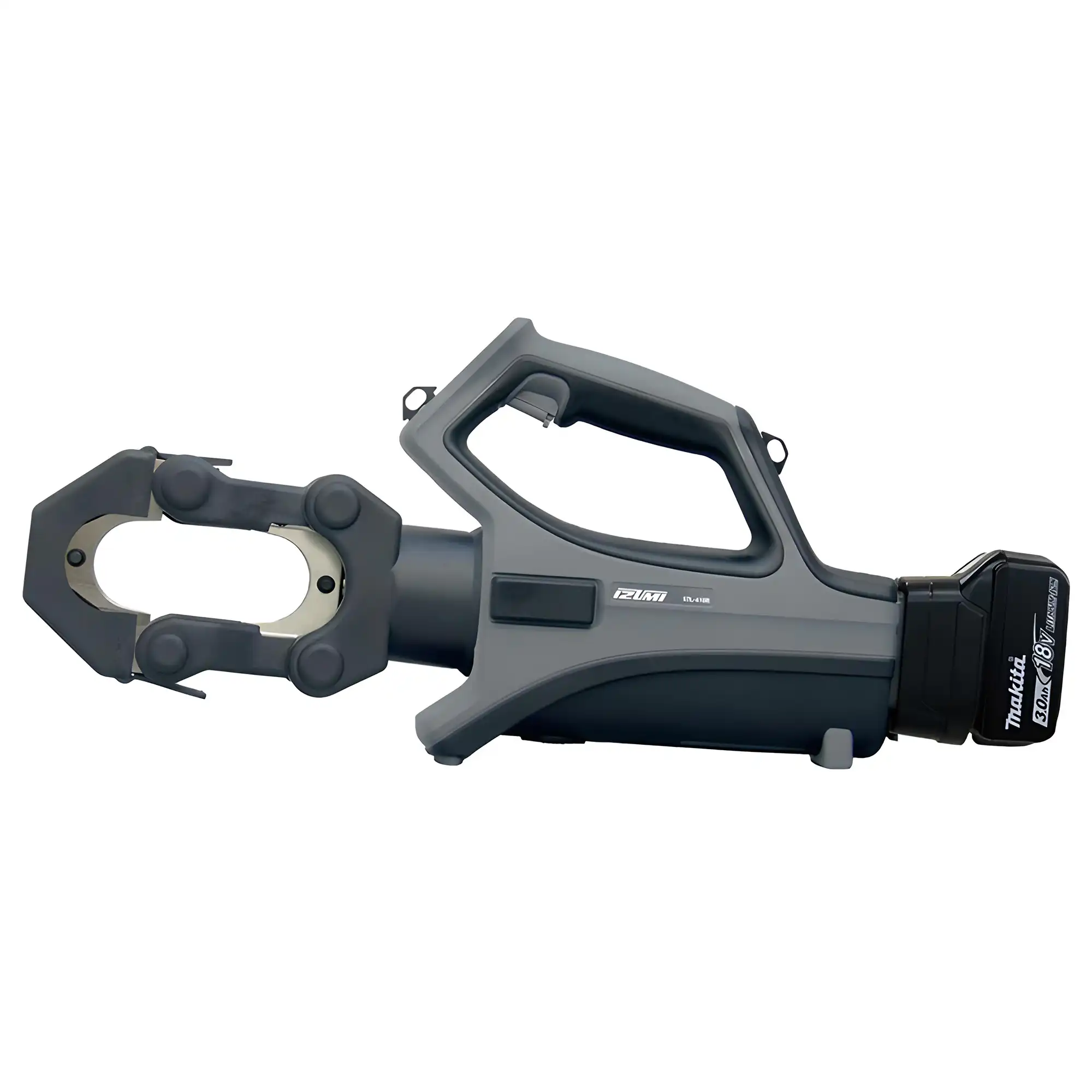

Izumi S7L-610 15 Tonne Battery Hydraulic Crimper

The Izumi S7L-610M battery operated 15 tonne compression tools use dies for applying compression fittings to copper, aluminium, ACSR and various other cables and conductors. This tool uses either specific 15 tonne dies or can use 12 tonne dies with an adaptor. The S7L-610M has the largest output and piston travel of all the Izumi tools allowing it to crimp up to 400/500mm2 aluminium or 630mm2 copper lugs.

The lunch box style “Series 7” tools can either be placed on the ground or have finger indents in the base for easier handling. The crimper now features a new larger handle opening with a rocker type advance/retract switch located on top of the handle for one finger trigger operation.

Uses the common 18V Makita battery platform.

Dies are sold separately.

More Information

MODEL No: S7L-610M
Jaw opening 50mm
Capacity Max 400/500mm2 AL/630mm2 CU
Force at die face 134kN
Weight 10.6kg with battery

Manual retract button, does not rely on battery
Auto retract function by electronic control (user selectable)
Non slip soft grip
Ergonomic design and hand grips
LED Light (For dark working places)
Rapid ram advance mechanism
Right or Left handed operation
Quality backed by ISO9001
Made in Japan

• Shoulder strap
• Double moulded carry case
