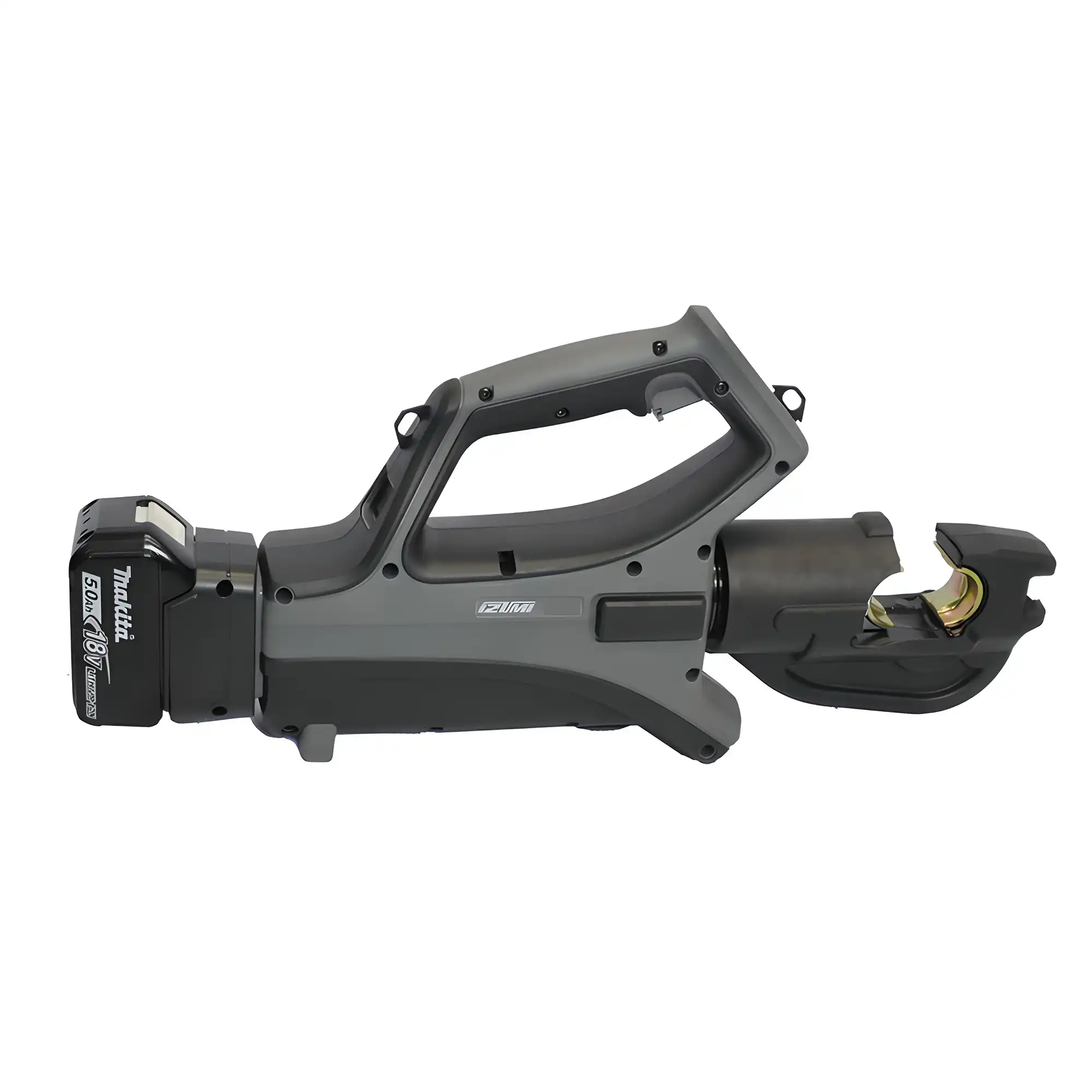

Izumi S7L-510M 12 Tonne Battery Hydraulic Crimper

The Izumi S7L-510M battery operated 12 tonne compression tools use standard 12 tonne dies for applying compression fittings to copper, aluminium, ACSR and various other cables and conductors.

The lunch box style “Series 7” tools can either be placed on the ground or have finger indents in the base for easier handling. The crimper now features a new larger handle opening with a rocker type advance/retract switch located on top of the handle for one finger trigger operation.

Uses the common 18V Makita battery platform.

Dies are sold separately.

More Information

MODEL No: S7L-510M
Jaw opening 42mm
Capacity Max 300mm2 AL/400mm2 CU
Force at die face 120kN
Weight 8.0kg with battery

Manual retract button, does not rely on battery
Auto retract function by electronic control (user selectable)
Non slip soft grip
Ergonomic design and hand grips
LED Light (For dark working places)
Rapid ram advance mechanism
Right or Left handed operation
Quality backed by ISO9001
Made in Japan

• Shoulder strap
• Double moulded carry case
