OB/85S Manual tube bender

CBC OB/85S Portable hydraulic pipe bender

This hydraulic pipe bender is the smallest in its range and also the easiest to handle. It is very powerful and is able to bend big diameter pipe with the minimum effort.

– Die-cast aluminium body and stainless steel body pump with double hydraulic circuit
– High working range thanks to very long piston stroke
– Adjustable pump lever according to hand size
– Die-cast aluminium formers: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm & 22mm

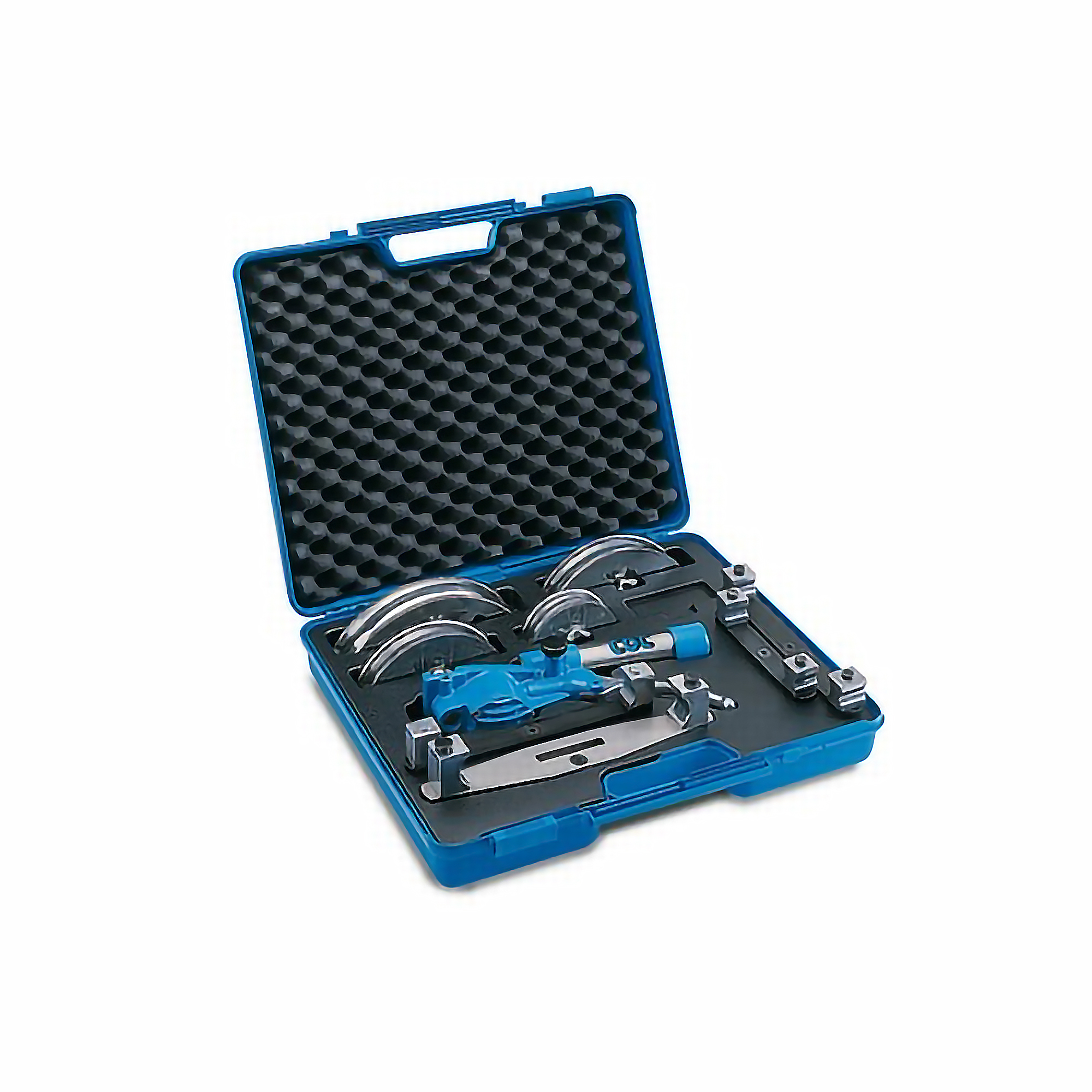

– Bender comes with 10 formers and 3 counterformers of which 2 are reinforced.
– Supplied with a PVC plastic carry case.
– Weight: 7.7kg
– Made in Italy

For bending:

Annealed copper pipe max 22mm dia x 1mm
Annealed staniless steel pipe max 18mm dia x 1.2mm
Bonderised steel pipe max 18mm x 2mm

Category: Brand:
