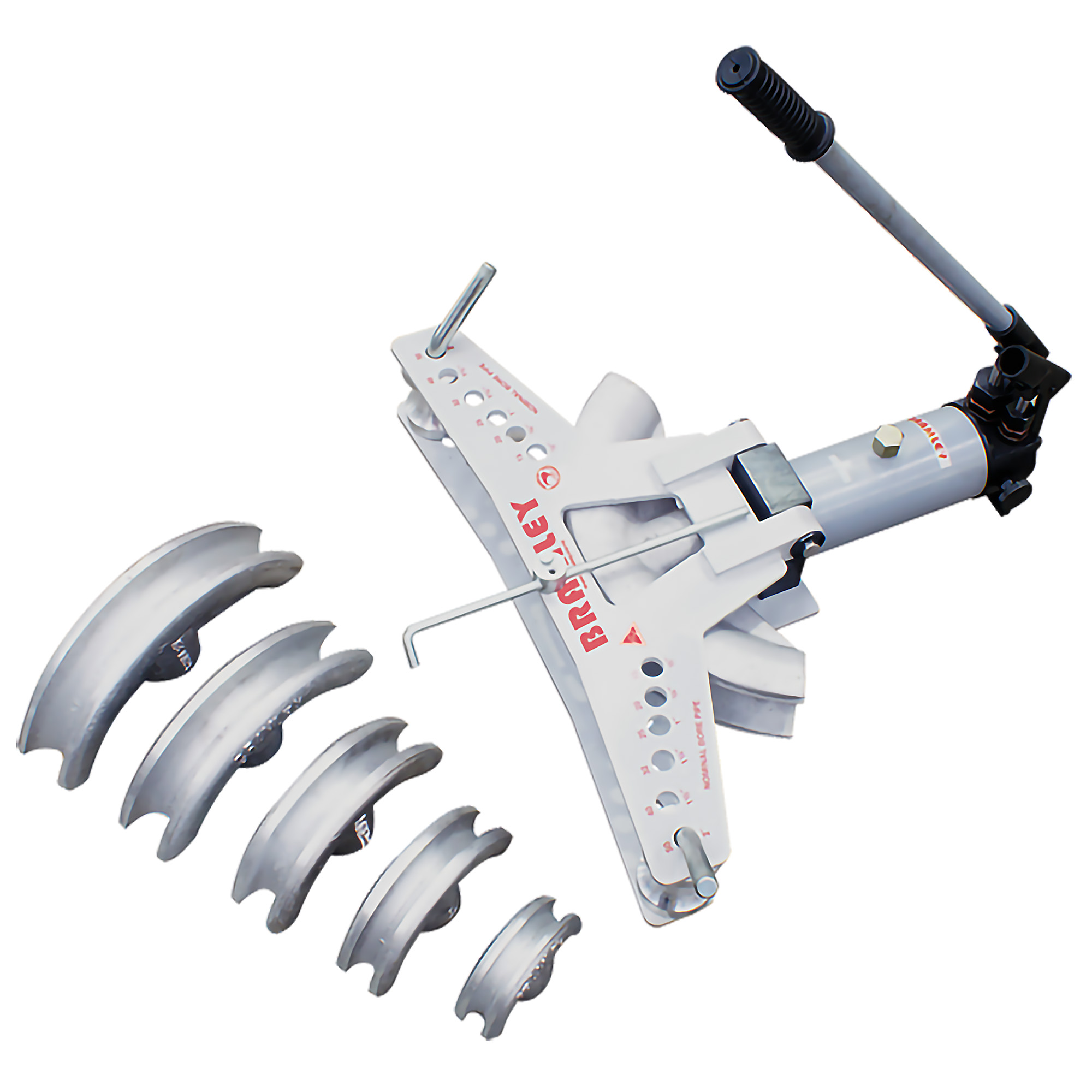

Bramley Model 024 Manual Hydraulic Pipe Bender
The Bramley Model 024 Manual Hydraulic Pipe Bender has lightweight aluminium alloy formers with a large angle of arc to support the pipe during bending. The cross-section of formers is of “”elliptical”” form to minimise flattening of the bend. This results in a superior quality bend.
The Solid frame fabrication eliminates flexing during bending operation. The hydraulic ram is easily removed from the frame and converts to a 12 ton jack.
Made by Bramley in New Zealand.
Additional Information
More Information
FEATURES
- For pipe bending to 90 degrees
- Flip-top frame for easy pipe and former replacement
- Bending radius measuring stop
- Two-stage pump action
- Spring return ram
- Hydraulic ram can be removed and used as 12 ton jack
- Can be retro-fitted with optional additional Electric Powered Unit
- Made in New Zealand
SPECIFICATIONS
- Capacity 1/2″” – 2″” (3mm wall thickness)
- Formers’ spigot size 38mm
- Weight 60Kg
FORMERS’ SPECIFICATIONS
Radius of Bend Centres
- 1/2″” – 75mm
- 3/4″” – 105mm
- 1″” – 140mm
- 1-1/4″” – 175mm
- 1-1/2″” – 200mm
- 2″” – 240mm
WHAT YOU GET
- Bramley Hydraulic Pipe Bender Manual 1/2″” – 2″” 024
- 6 Formers (1/2″”, 3/4″”, 1″”, 1-1/4″”, 1-1/2″”, 2″”)
- 2 Bobbins (support rollers)
- Pins
Video
