ITH Nut Runner type PDS
A pneumatic planetary geardrive nut runner delivering up to 14,000 Nm, with high/low gear change and optional explosion-risk area coating.
More Information
The ITH Nut Runner type PDS is a pneumatic torque wrench with a planetary geardrive powered by a pneumatic air motor, delivering up to 14,000 Nm. No electrical power supply is required — the air motor runs from standard compressors, making it suitable for areas where no electrical power is available. Independent rotation between the handle and gearbox ensures steady, optimal positioning during operation.
Key Features
- No electrical power required — runs from standard air compressors.
- High and low gear change enables a wider range of rotational speed for faster work.
- Independent rotation between handle and gearbox for steady, optimal positioning.
- Torque set via compressed air precision control valve at idling, using tabular data.
- Optional explosion-risk area version — gearbox and reaction arm can be coated on demand, ideal for oil and gas applications.

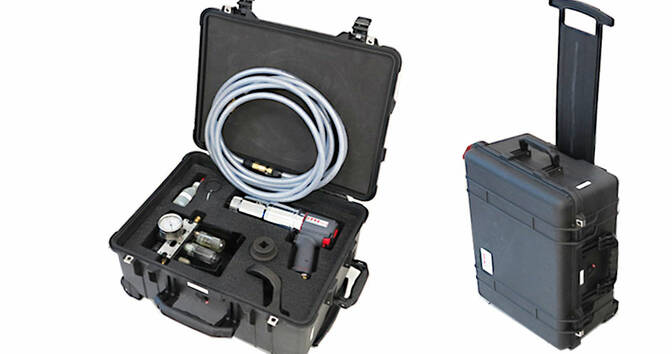

- Various accessories available including extensions, sockets, and special reaction arms.
Typical Applications

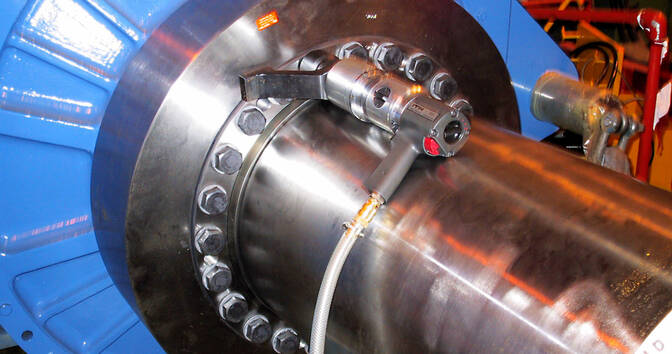

- Industrial bolting in areas without electrical power access
- Oil and gas applications requiring explosion-risk area rated tools
- Heavy bolting up to 14,000 Nm
- Jobs requiring flexible positioning via independent handle rotation

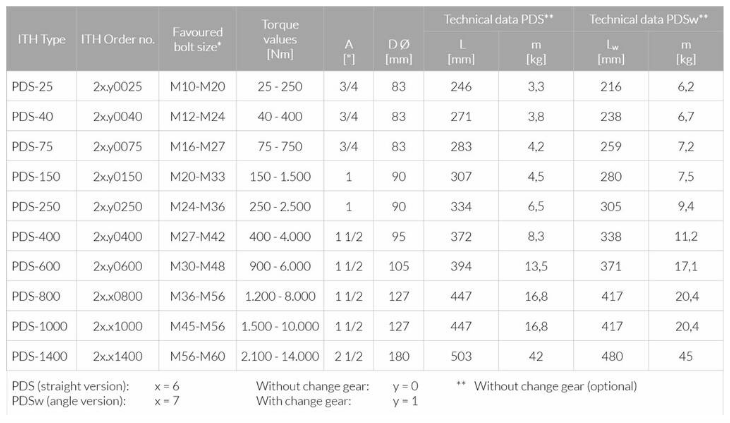

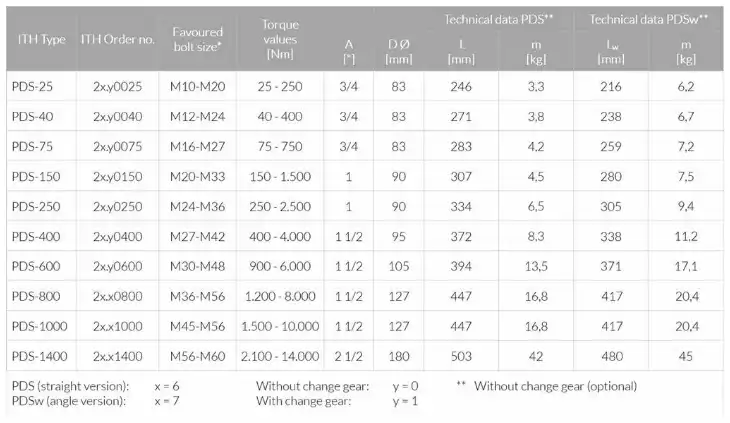

ITH Nut Runner type PDS Specifications
| Spec | Detail |
|---|---|
| Drive Type | Planetary geardrive |
| Power Source | Pneumatic air motor (standard compressor) |
| Max Torque | Up to 14,000 Nm |
| Gear | High and low gear (change gear) |
| Handle | Independent rotation from gearbox |
| Explosion-Risk Option | Available on demand (coated gearbox and reaction arm) |
| Accessories | Extensions, sockets, special reaction arms |
