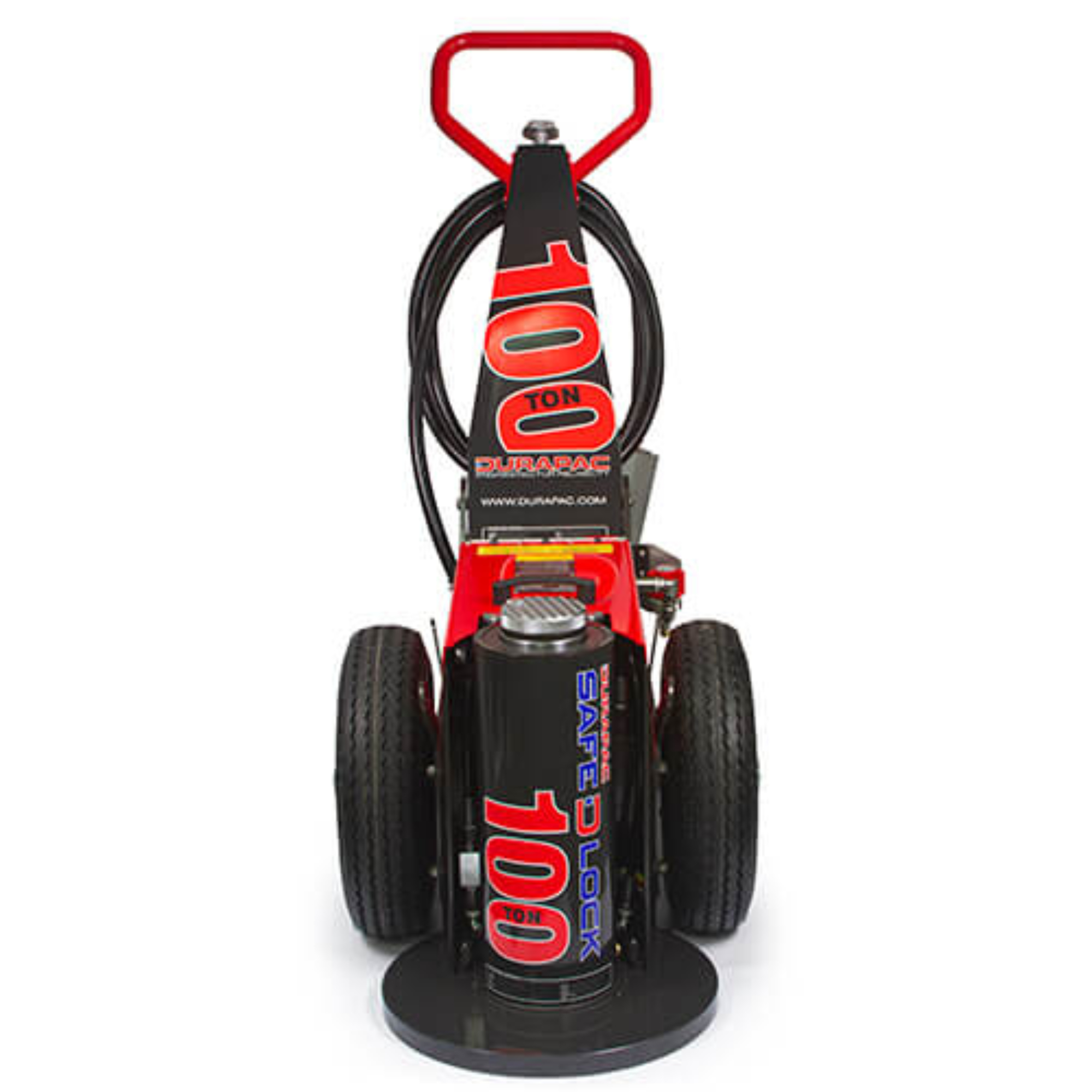

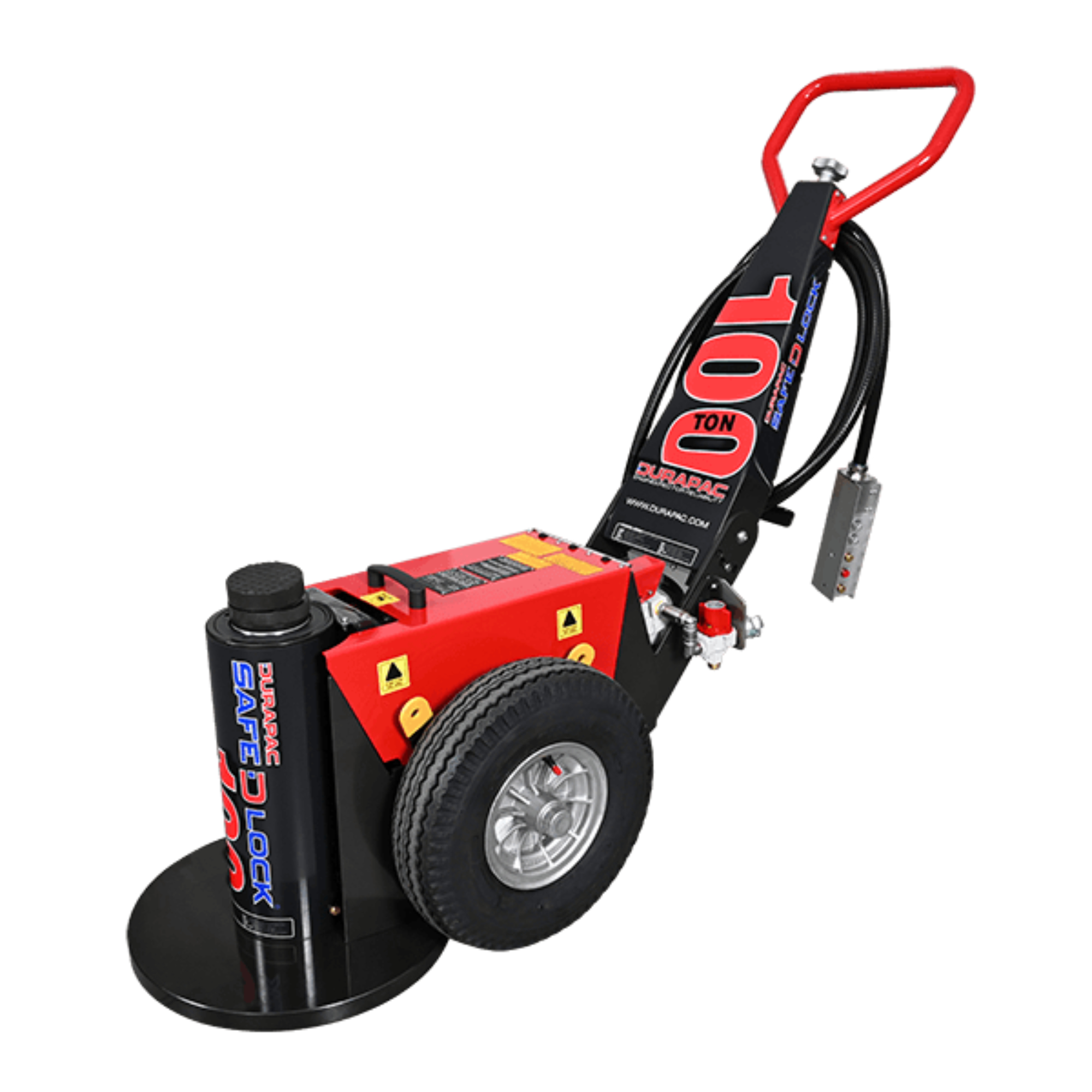

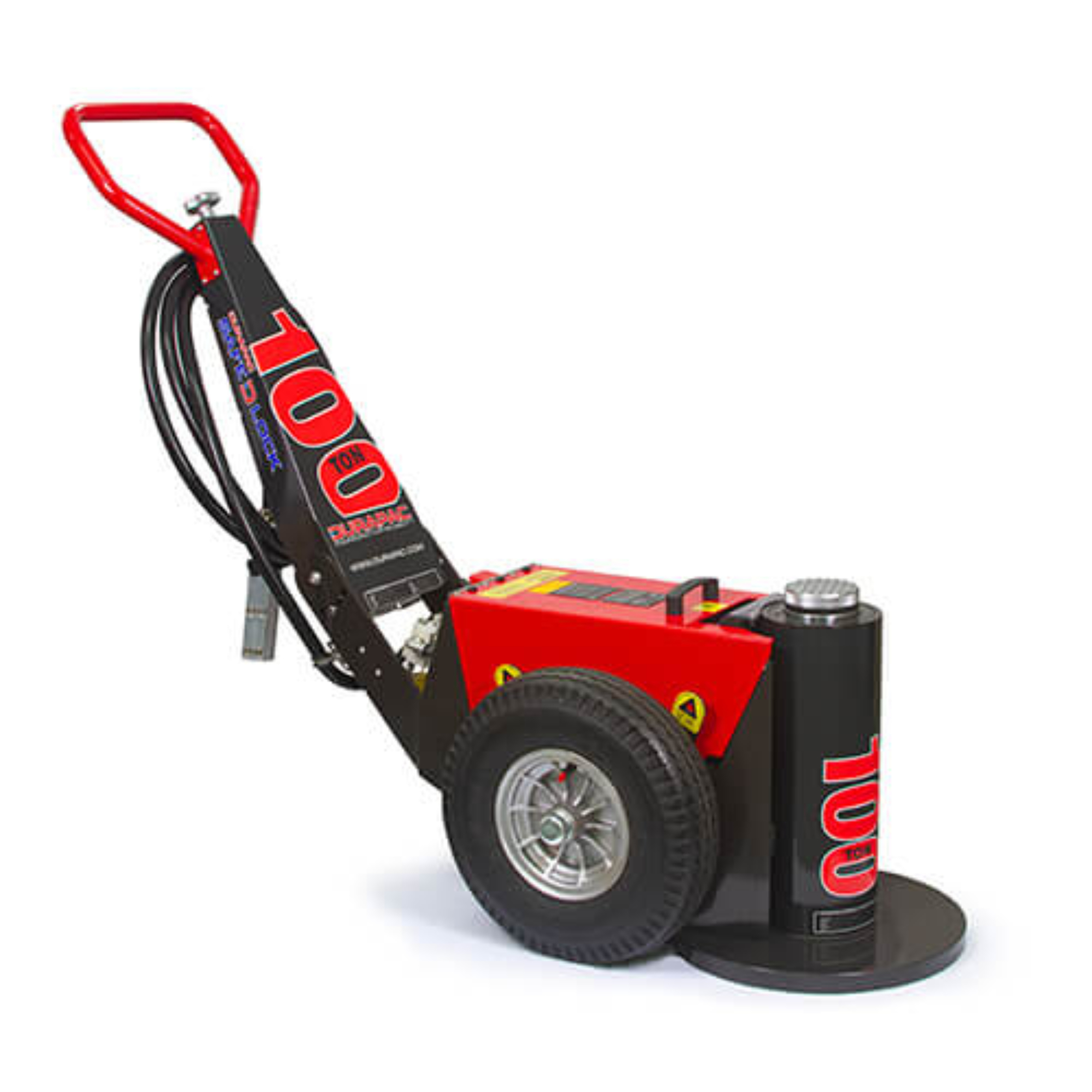

Durapac SDL Safe-D-Lock Dozer Lifting Jacks – 100 Ton
The Safe D Lock® jaThe Safe D Lock® jack stands out as a groundbreaking design prioritizing operator safety. It serves as both a lifting jack and a robust vehicle jacking stand, specifically engineered for heavy mining vehicles. When equipped with the POWERDRIVE feature, it evolves into a self-propelled jack, enhancing its functionality.
More Information
Australian Designed and Manufactured
Crafted in Australia to comply with the AS/NZS 2693:2007 standard for vehicle jacks and the AS/NZS 2538:2004 standard for vehicle support stands.
Innovative Fail-Safe Design
Featuring patented oil-bathed internal locking quadrants that remain activated throughout the lifting operation, ensuring fail-safe functionality.
Mechanical Quadrant Locking System
In the rare event of hydraulic failure, the locking mechanism automatically engages for added safety.
Portable and Space-Saving
Compact and easily transportable, the Safe D Lock jack is an ideal solution for both workshops and service vehicles.
Safe D Lock Jack with PowerDrive
Capable of self-propelling up workshop slopes of up to 5 degrees.
Precise Load Lowering
Equipped with a counterbalance valve for precise and controlled lowering of the load.
|
Model Number
|
Jack Capacity Metric (tonne)
|
Jack Capacity US (ton)*
|
Jack Capacity (kN)
|
Cylinder Effective Area (cm2)
|
Collapsed Height (mm)**
|
Stroke (mm)
|
Maximum Lift Height (mm)***
|
Weight (kg)
|
Oil Tank Capacity (L)
|
|---|---|---|---|---|---|---|---|---|---|
| SDL-07068 | 70 | 77 | 686 | 143 | 680 | 404 | 1,408 | 290 | 24 |
| SDL-07068-PD | 70 | 77 | 686 | 143 | 680 | 404 | 1,408 | 290 | 24 |
| SDL-07081 | 70 | 77 | 686 | 143 | 812 | 535 | 1,680 | 320 | 24 |
| SDL-07081-PD | 70 | 77 | 686 | 143 | 812 | 535 | 1,680 | 320 | 24 |
| SDL-10055 | 100 | 110 | 980 | 143 | 550 | 274 | 1,250 | 270 | 24 |
| SDL-10068 | 100 | 110 | 980 | 143 | 680 | 404 | 1,408 | 290 | 24 |
| SDL-10068-PD | 100 | 110 | 980 | 143 | 680 | 404 | 1,408 | 290 | 24 |
| SDL-10081 | 100 | 110 | 980 | 143 | 812 | 535 | 1,680 | 320 | 24 |
| SDL-10081-PD | 100 | 110 | 980 | 143 | 812 | 535 | 1,680 | 320 | 24 |

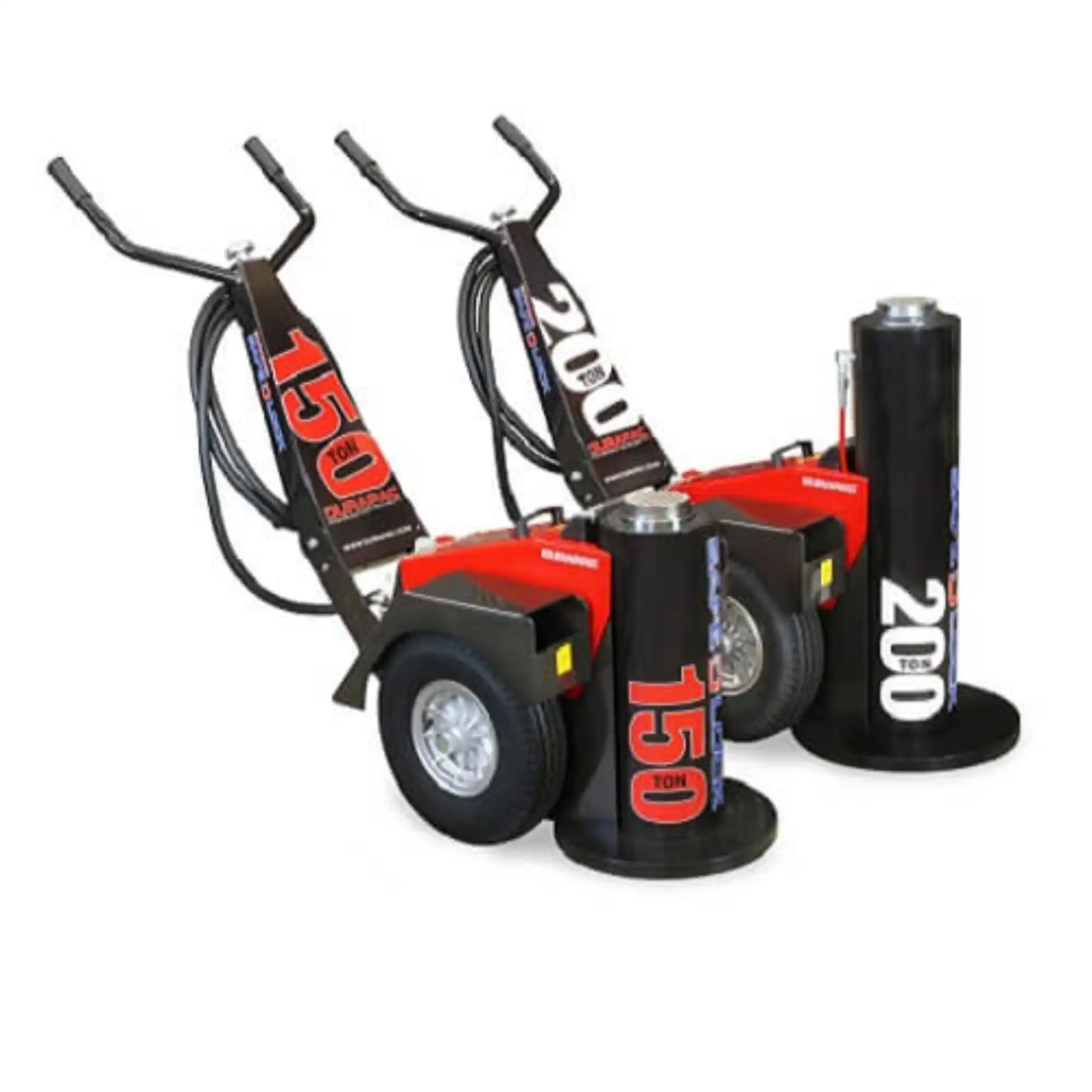

| SDL-15068 | 135 | 150 | 1,324 | 254 | 680 | 400 | 1,408 | 420 | 24 |
| SDL-15068-PD | 135 | 150 | 1,324 | 254 | 680 | 400 | 1,408 | 420 | 24 |
| SDL-15096 | 135 | 150 | 1,324 | 254 | 960 | 685 | 1,680 | 460 | 24 |
| SDL-15096-PD | 135 | 150 | 1,324 | 254 | 960 | 685 | 1,680 | 460 | 24 |

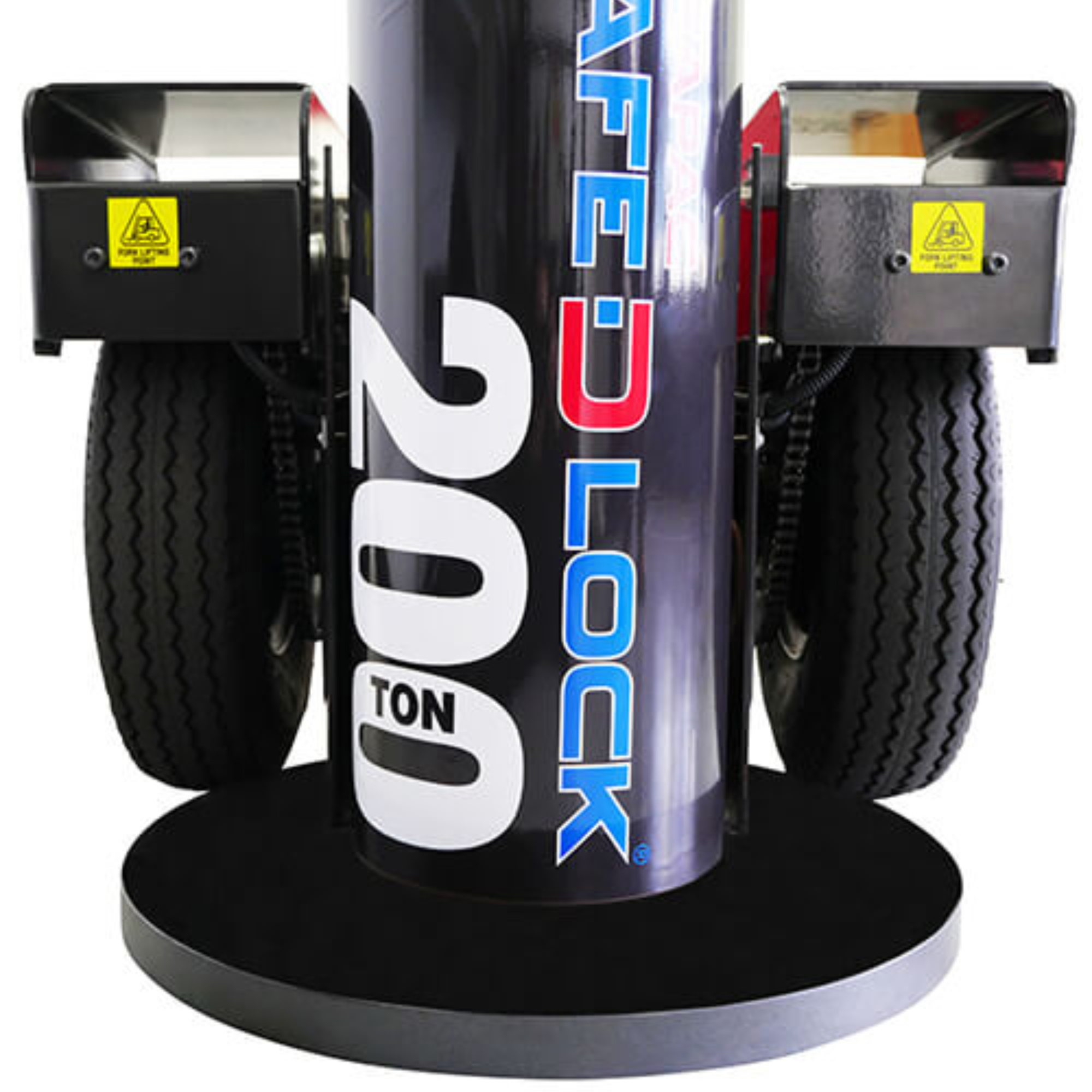

| SDL-20068 | 181 | 200 | 1,781 | 254 | 680 | 400 | 1,408 | 420 | 24 |
| SDL-20068-PD | 181 | 200 | 1,781 | 254 | 680 | 400 | 1,408 | 420 | 24 |
| SDL-20096 | 181 | 200 | 1,781 | 254 | 960 | 685 | 1,680 | 460 | 24 |
| SDL-20096-PD | 181 | 200 | 1,781 | 254 | 960 | 685 | 1,680 | 460 | 24 |
| SDL-20096-PD-620 | 181 | 200 | 1,781 | 254 | 960 | 685 | 2,100 | 620 | 24 |
* Nominal Cylinder Capacity in ton – see kN values for actual capacity
** Includes load cap height of 22 mm
*** Maximum lift height for AS/NZS 2538:2004 Vehicle Support Stand Rating
“-PD” suffix indicates {SafeDLock Jack + POWERDRIVE}
Extensions, Tilt Saddles & Load Caps
* Supplied as standard
** Optional item
