DHW Impact wrench 9512 – 17012
Two heavy-duty hydraulic impact wrenches delivering 9,500 to 17,000 Nm, with a 3-jaw hammer mechanism, ergonomic Ergal handle, and optional T-handle, underwater, and extended-shaft configurations.
Additional Information
More Information
The DHW Impact Wrench 9512 – 17012 range delivers heavy-duty hydraulic impact torque for mechanical and industrial workshops, infrastructure, and railway applications. It suits oil and gas, mining, and cold-weather sites where no air supply is available. The smaller model reaches up to 9,500 Nm, while the larger model delivers up to 17,000 Nm through a 1-1/2″ square drive.
Key Features
- 3-jaw hammer mechanism delivers reliable, repeatable impact performance.
- Motor cover with heat dissipation supports sustained use in demanding conditions.
- Manual inverter for tightening and loosening.
- Ergonomic handle, made entirely of Ergal, with integrated oil flow.
- Mechanical lever with safety lever for controlled operation.

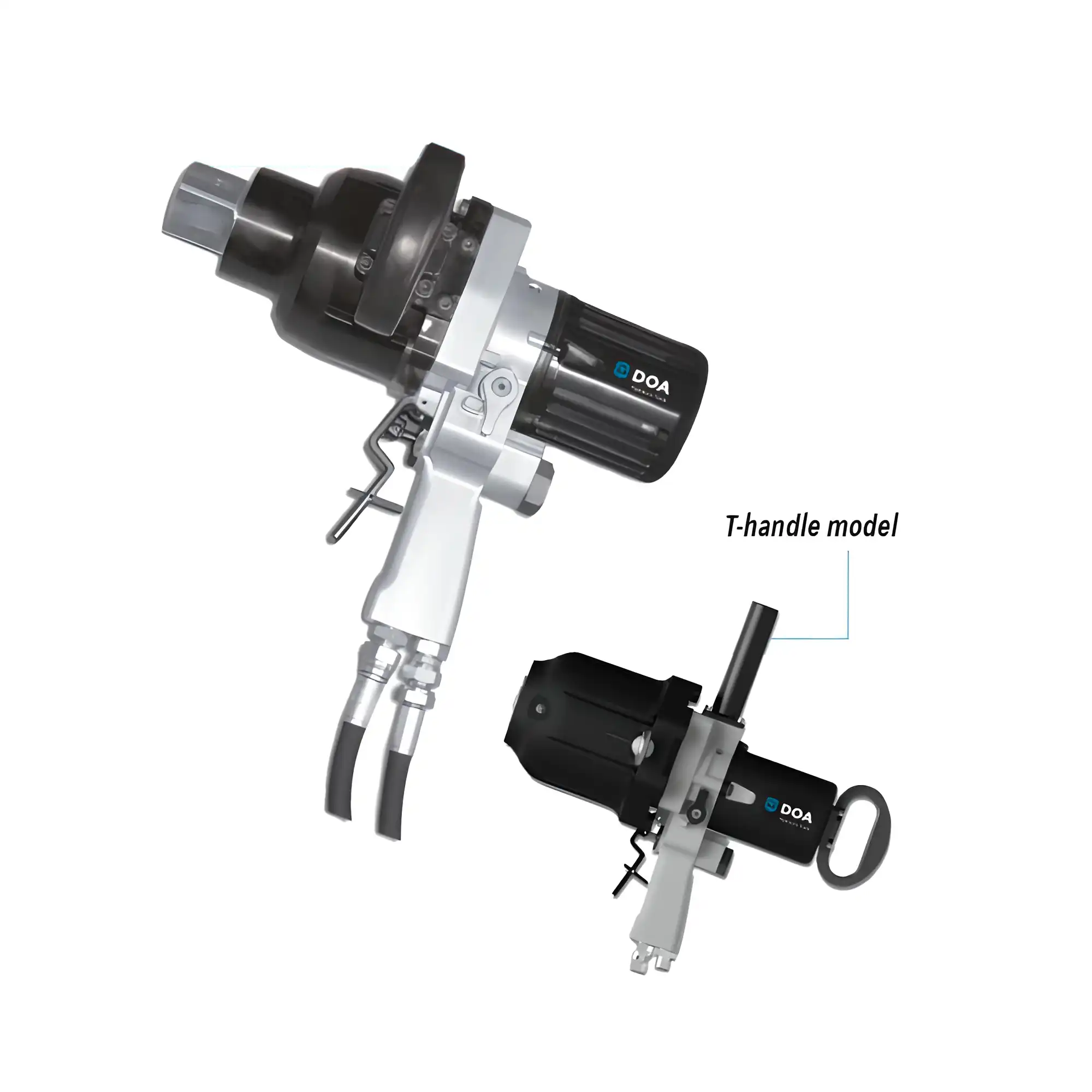

- Optional T-handle, underwater, and extended-shaft versions available on select models.
Typical Applications
- Mechanical and industrial workshops
- Infrastructure and railway maintenance
- Oil and gas, and mining sites
- Cold workplaces without air supply
Range Overview
| Model | Max Torque | Weight | Drive |
|---|---|---|---|
| DHW 9512 | 9,500 Nm | 13.6 kg | Not published — confirm with manufacturer |
| DHW 17012 | 17,000 Nm | 22.7 kg | 1-1/2″ |
DHW Impact Wrench 9512 – 17012 Specifications
| Spec | Detail |
|---|---|
| Hammer Mechanism | 3-jaw |
| Handle Material | Ergal, ergonomic with integrated oil flow |
| Torque Control | Manual inverter (tighten/loosen) |
| Optional Versions | T-handle, underwater, extended shaft (model dependent) |
