Alkitronic X-EB Range
A battery-driven torque multiplier series spanning 110–6,000 Nm across eight models, from the compact EB-S 80 to the high-torque EB-S 600, with patented low-vibration technology and ±3% repeat accuracy for consistent bolting results.
Additional Information
More Information

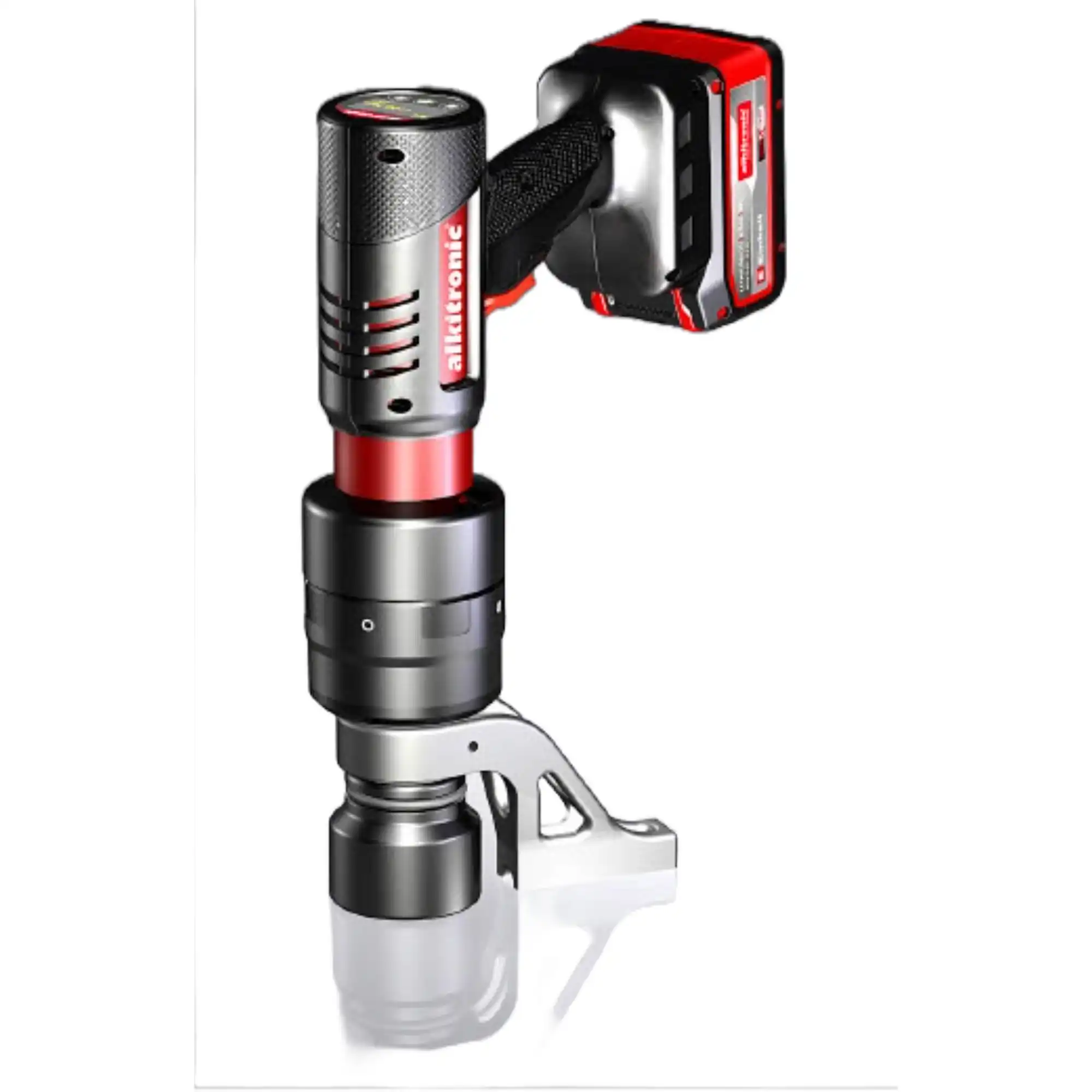

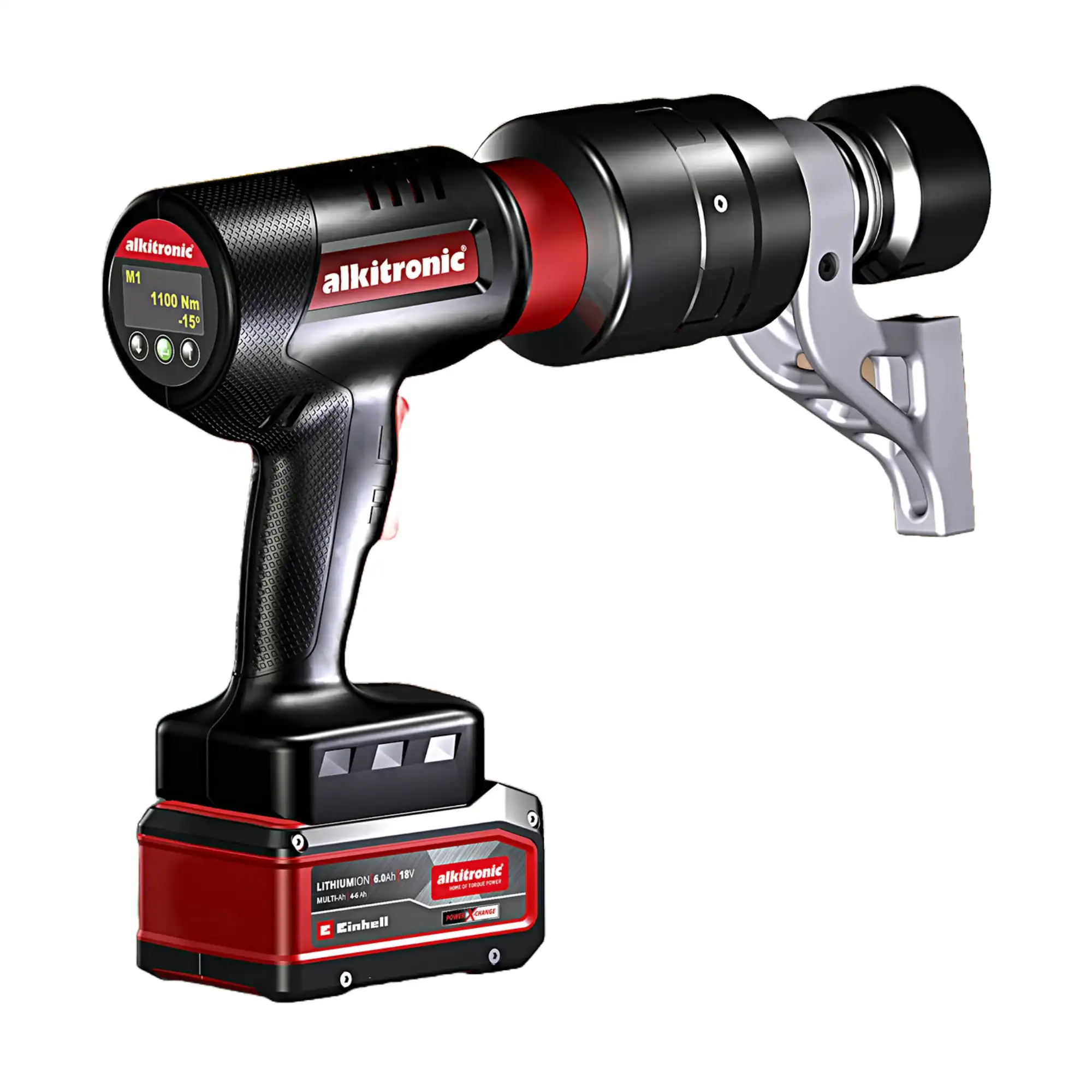

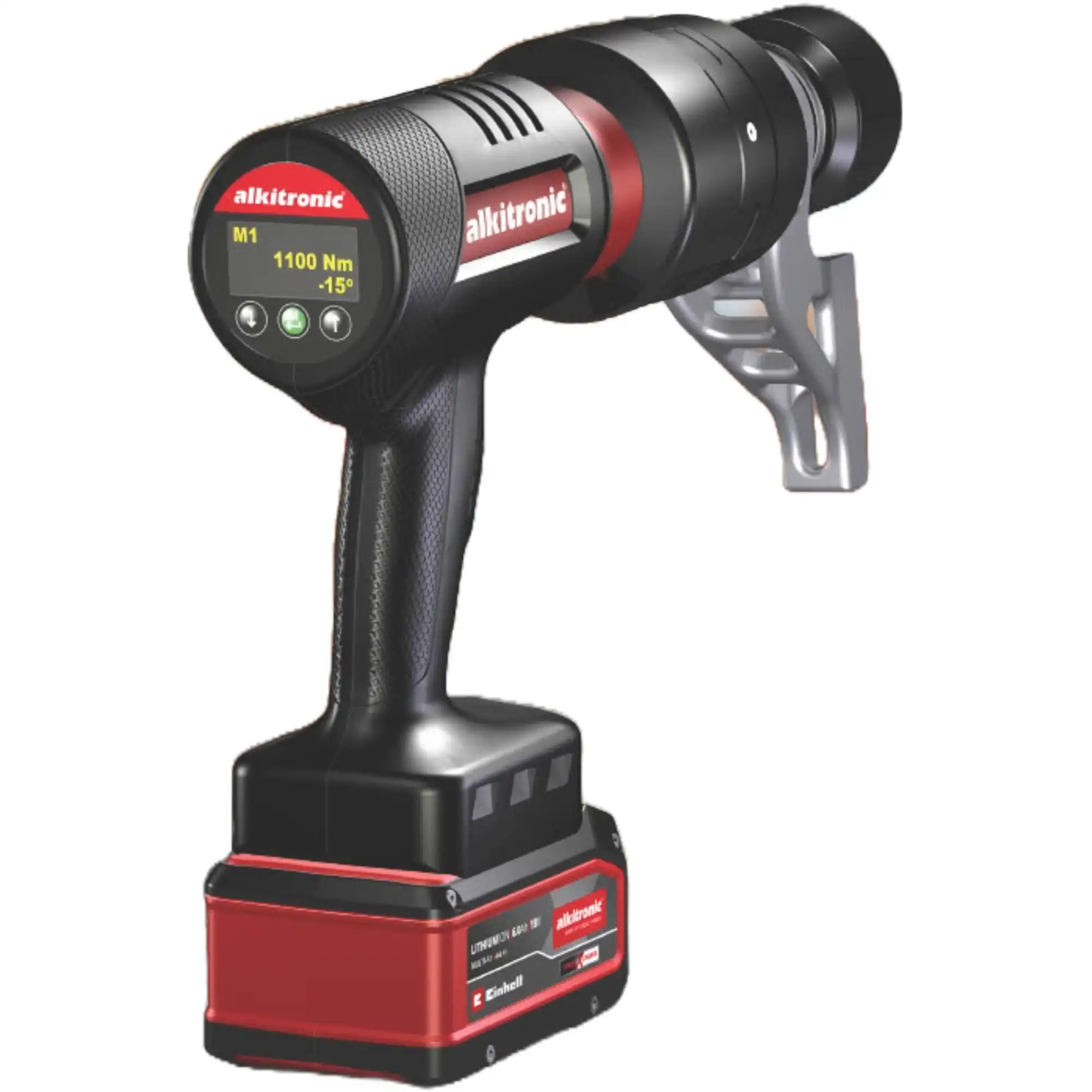

The Alkitronic X-EB Range is a battery-driven torque multiplier series delivering between 110 Nm and 6,000 Nm (90–4,425 ft-lbs) of torque. Eight models span this full range, letting crews match output precisely to the job rather than over- or under-specifying a single tool. Each unit works independently of an external power supply, with continuous rotation of the square drive for consistent joint quality.
Key Features
- Ergonomic, high-grip housing supports safe, secure handling during bolting.
- Anti-glare OLED display stays readable in all weather conditions.
- Brushless synchronous motor with automatic shutdown improves efficiency and lowers running costs.
- Low noise emissions remove the need for hearing protection.
- Wireless documentation supports quality control and job traceability.
- One-finger trigger allows fast, simple changes of rotation direction.
- Modular software packages support torque/rotation-angle bolting methods with adjustable limits, and can be retrofitted later if requirements change.
- Patented reaction-torque decoupling reduces radial force on the operator’s wrist to 1 Nm.
- Battery capacity increased from 4 Ah to 6 Ah, extending operating time.
Available Models
- EB-S 80
- EB-S 150
- EB-S 180
- EB-S 250
- EB-S 350
- EB-S 400
- EB-S 480
- EB-S 600

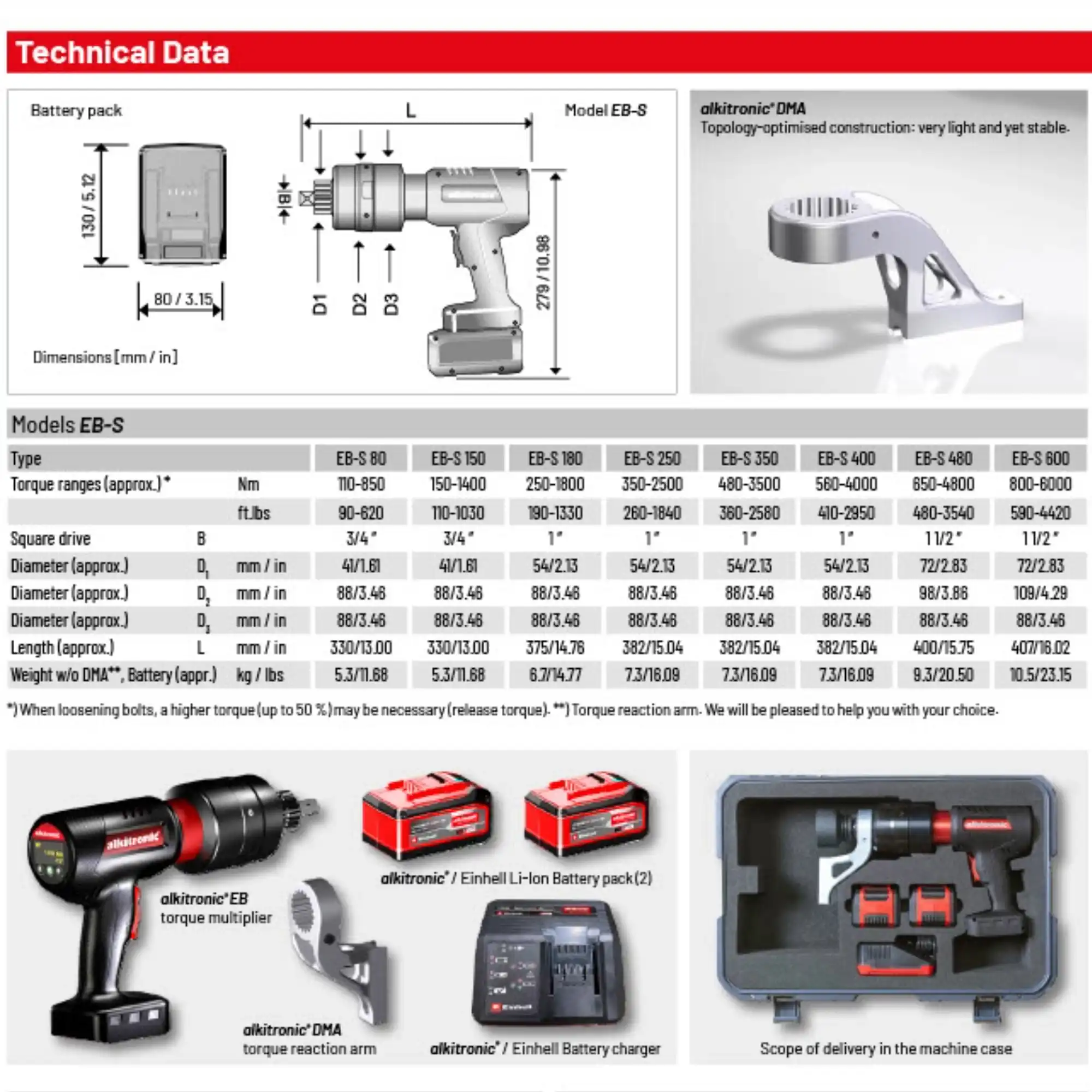

Alkitronic X-EB Range Specifications
| Spec | Detail |
|---|---|
| Torque Range | 110 – 6,000 Nm (90 – 4,425 ft-lbs) |
| Repeat Accuracy | ±3% |
| Battery | 4 Ah or 6 Ah |
| Motor | Brushless synchronous |
| Display | OLED, anti-glare |
| Wrist Reaction Force | Reduced to 1 Nm (patented decoupling technology) |
| Models Available | 8 (EB-S 80 through EB-S 600) |
