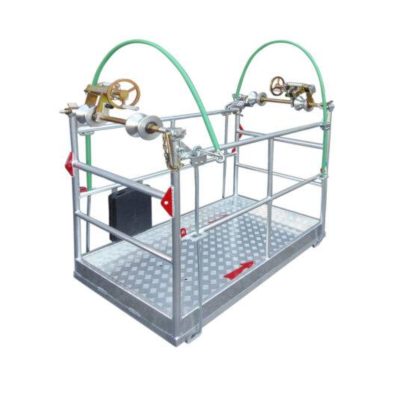

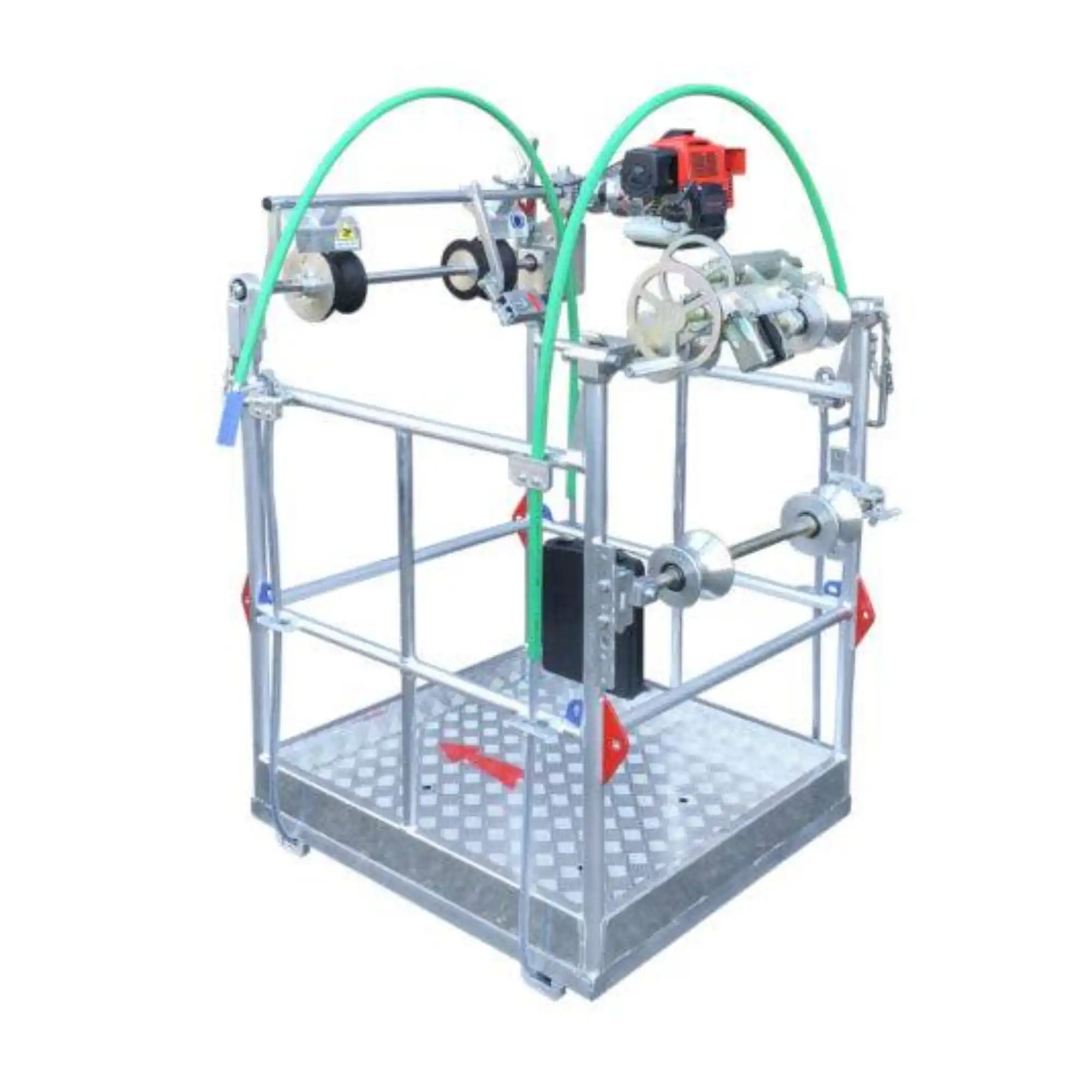

036-M MOTORIZED INSPECTION TROLLEY

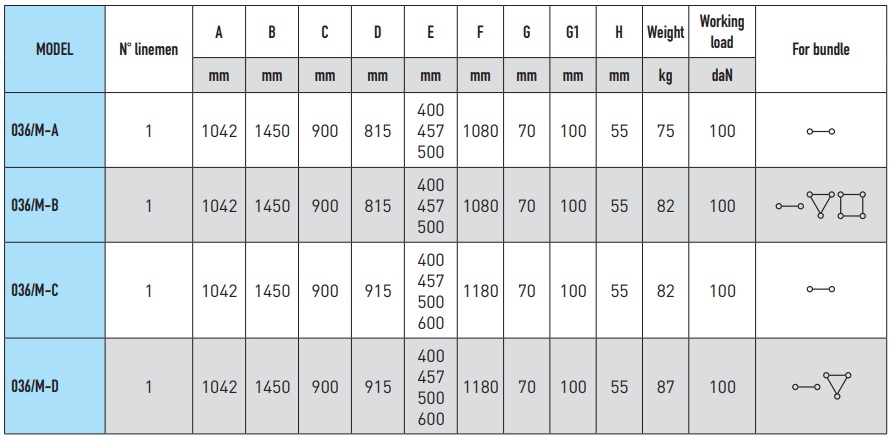

Available for 2, 3 or 4 bundled conductor configurations.
Single lineman’s cart with mechanical motorized-driven traction system.
Made of tubular aluminum alloy welded structure (certified TIG system)
Features and performances:
– 2 stroke 50cc gasoline engine 2.4 HP (1.8 kW);
– Max speed 20 m/min (both directions);
– Max slope 25% (15°);
– Mechanical transmission, reversing drive direction with idle position;
– Transmission axle with rubber wheels for high adherence;
– Supporting and positioning cross-arms with aluminum wheels on ball-bearings;
– N° 2 stationary brakes, safety frame ropes and counter meter device.
Upon request:
– Nylon wheels;
– Earthing device;
– “Custom-made” size available;
– Anchoring point in compliance with UNI EN 795:2012.
