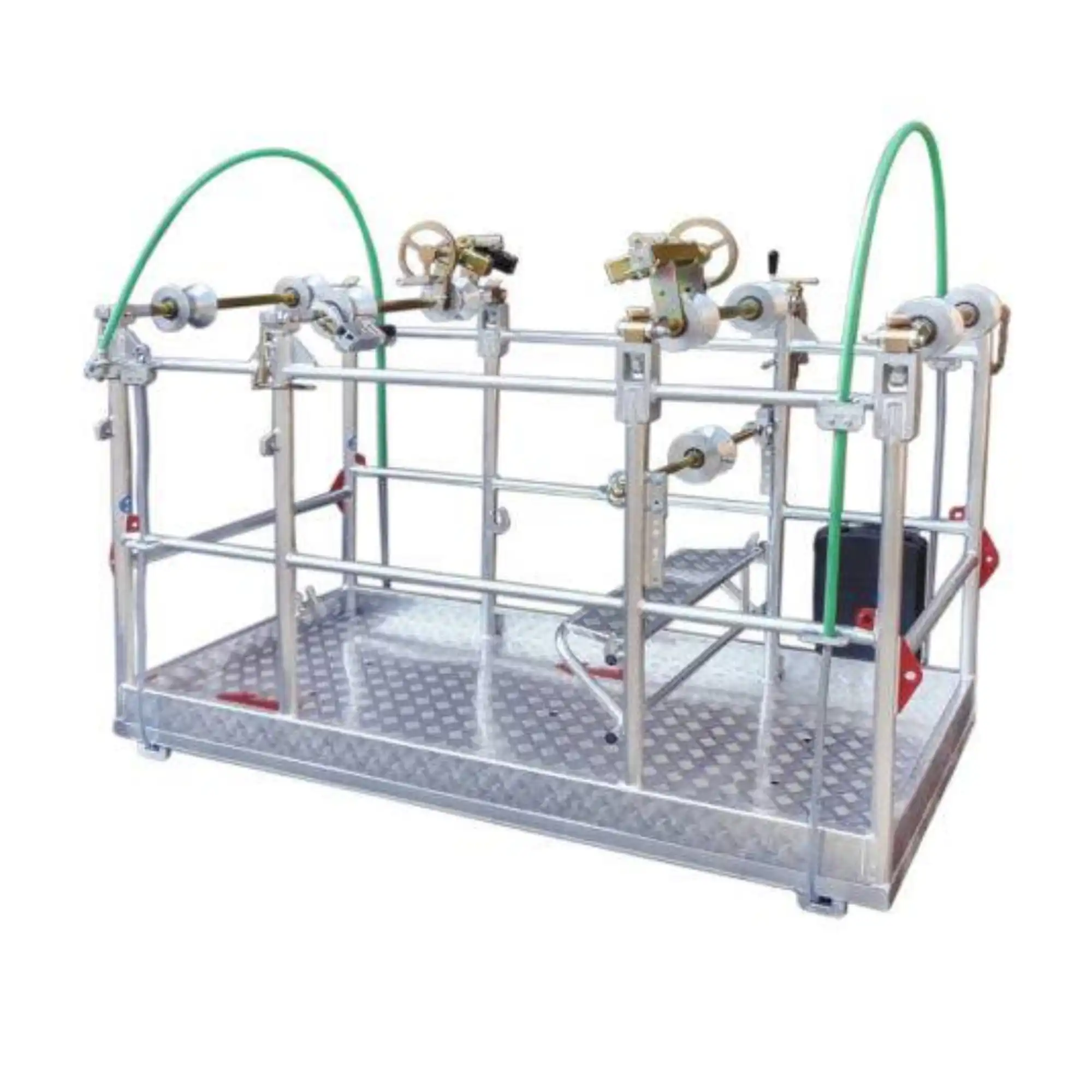

034-4 INSPECTION TROLLEY

LINE CARTS / INSPECTION TROLLEYS FOR BUNDLED CONDUCTORS
This model is designed for overpassing existing spacers.
Suitable for 2,3 or 4 bundled conductor configurations.
2 linemen towable trolley, with four cross-arms and one positioning bar complete with aluminum wheels on ball-bearings and anti-slip floor, N°2 stationary brakes, safety frame ropes and  counter-meter device.
Made of welded aluminum alloy (certified TIG system).
Upon request:
– Nylon wheels;
– Earthing device;
– Openable and articulated arms;
– “Custom-made” size available;
– Lifting/positioning device Mod. DT034MDSR
– Anchoring point in compliance with UNI EN 795:2012.
