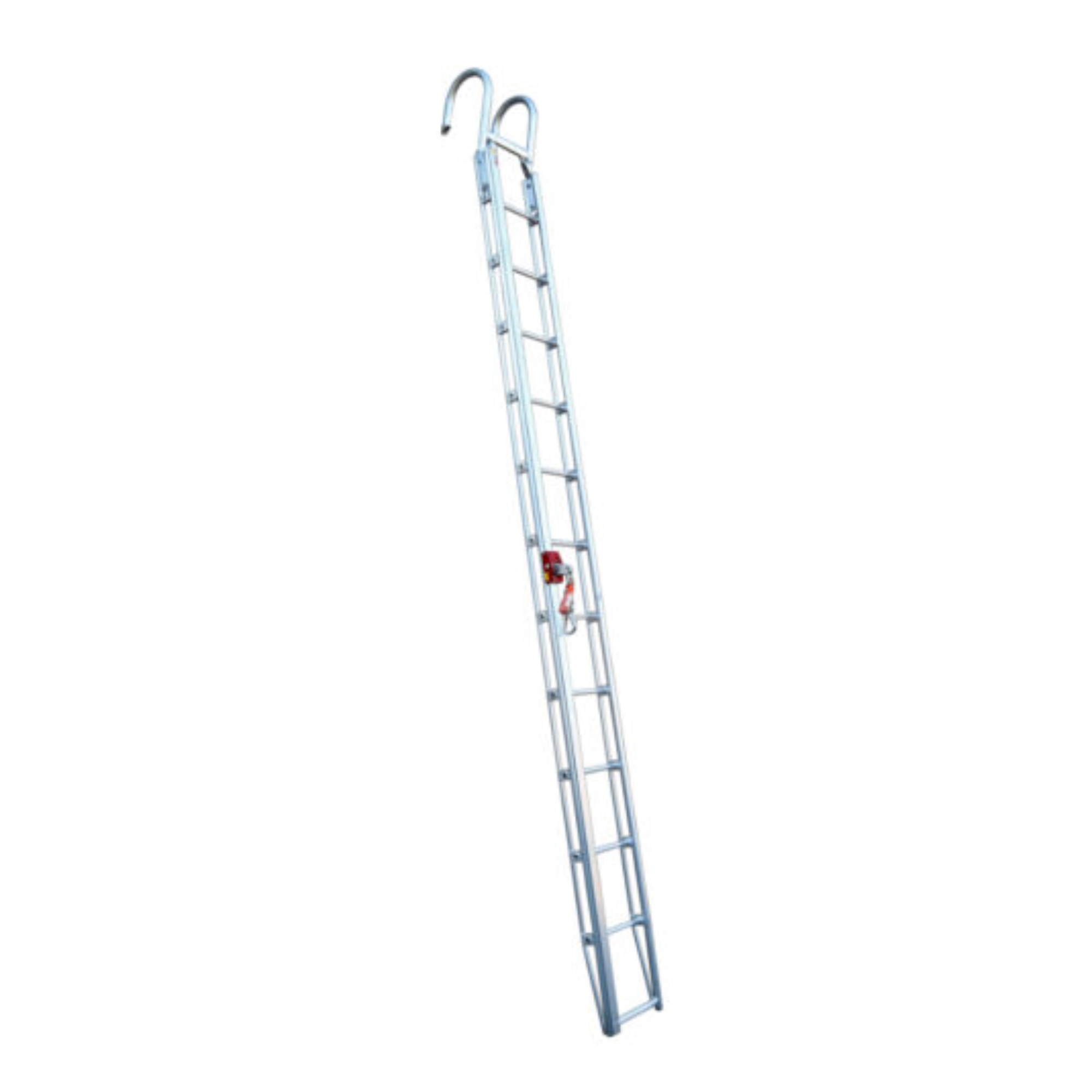

011-A SUSPENSION LADDER WITH ANTIFALL PROFILE

Suitable for operations on overhead transmission lines
Made of light aluminum alloy, welded (Certified TIG system) with skid proof rungs.
Certified according to UNI CEN/TS 16415:2013, UNI EN 795:2012 regulations and in compliance with EU 2016/425 regulation.

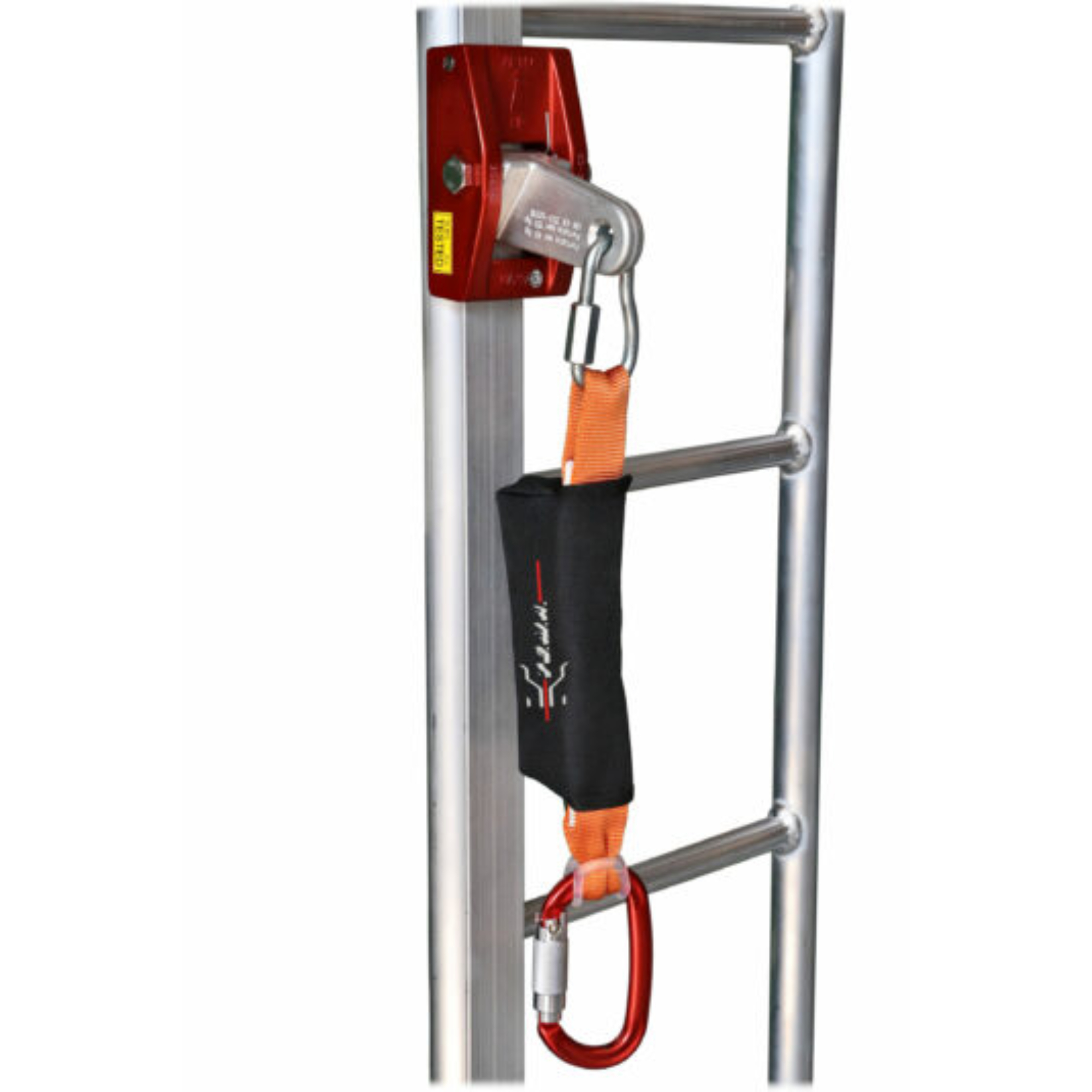

Complete with interchangeable galvanized steel hook with double safety chain and anti-fall profile (to be used with anti-fall device Mod. MA 29/3).
– Vertical working load: 300 daN.
MODEL Sections number Length (L) Standard hook opening (A) Weight
m mm kg
011/2,5 1 2,5 220 9.2
011/3 1 3 220 10.3
011/3,5 1 3,5 220 11.2
011/4 1 4 220 12.3
011/5 1 5 220 14.8
011/6 1 6 220 17.2
011/6.2 2 6 (4+2) 220 17.8
011/8.2 2 8 (4+4) 220 22.6
011/10.2 2 10 (5+5) 220 27.5
Upon request:
– C and A/B attachments available with opening size up to 400mm;
– Different lengths and compositions
Upon request:
– C and A/B attachments available with opening size up to 400mm;
– Different lengths and compositions;
– Ladder suitable for two lineman (2 anti fall opposite profiles) Mod. 011/B.
