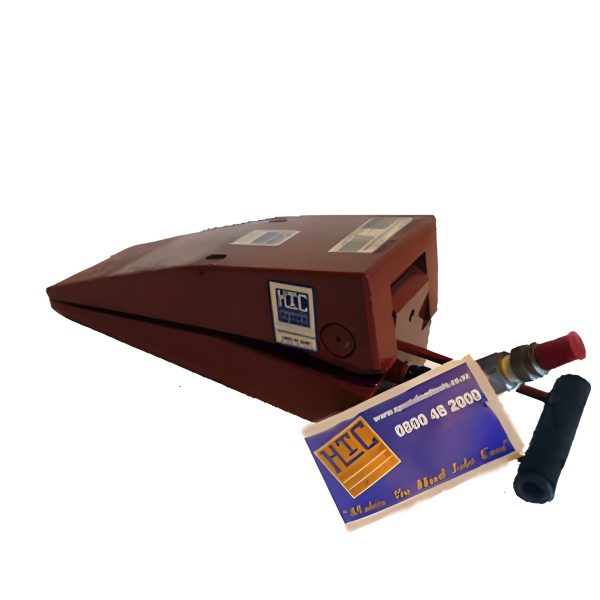

WO2 2 Ton Wedge Ram

WO2 2 Ton Wedge Ram

Wedge-type cylinders are the perfect tool when you only have the slightest gap. Designed to lift, align or pry apart plant and machinery.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 50cc
Cylinder effective area 14.52cm²
Maximum output (at tip) 20kN
Maximum output (at base) 100kN
Minimum height (at tip) 20mm
Maximum height (fully open) 150mm
Size: 320 L x 120 W x 128 H (mm)
Weight: 16.4kg
Spring return
