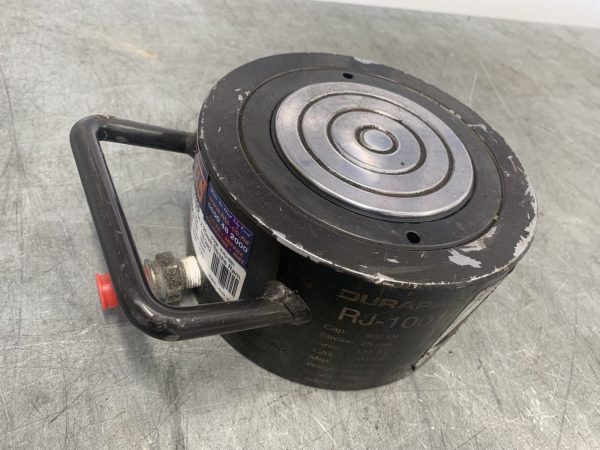

RJ1001

The RJ1001 has low height rams that are very similar to flat jacks, but are slightly taller and offer more stroke. Ideal for situations where limited space or limited clearance is available.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Cylinder capacity 933kN
Stroke 25mm
Cylinder bore diameter 130.3mm
Max operating pressure 700bar
Oil capacity 333cc
Cylinder effective area 133.28cm²
Closed height 141mm
Weight: 16.9kg
Heavy duty spring for quick return

Downloads

Download Tech Sheet
